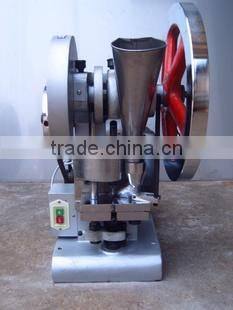

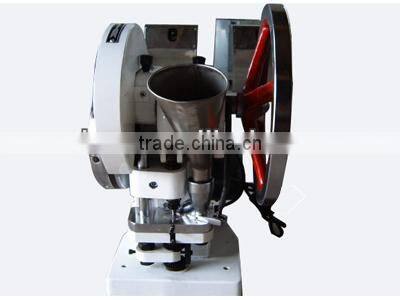

single-punch tablet press
Brief introduction:
Native to the wafer, various kinds of granular materials is suitable for the laboratory test, and small-scale production.Its characteristic is a small desk-top continuous tableting machines, electric hand.On board can only be packed in a punching die, the depth of the filling material thickness of the tablet can be adjusted.
The main technical parameters:
Model |
SY01-1 |
SY01-2 |
SY01-3 |
Number of punching die |
1set |
1set |
1set |
Maximum compressive stress |
15KN |
50KN |
60KN |
The biggest diameter of compressor |
12mm |
16mm |
25mm |
Maximum filling depth |
11mm |
12mm |
16mm |
The biggest tablet thickness |
6mm |
6mm |
10mm |
Production capacity |
6000pc/h |
6000pc/h |
4000pc/h |
motor |
550W |
750W |
1100W |
Overall dimensions(L*M*H) |
570 * 380 * 630mm |
650 * 440 * 650mm |
650 * 600 * 700mm |
The host weight |
86kg |
125kg |
160kg |
