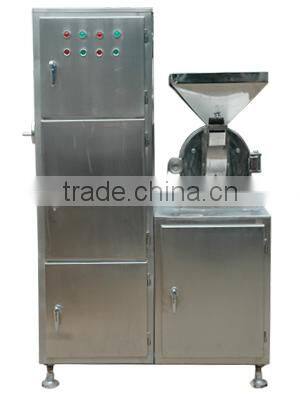

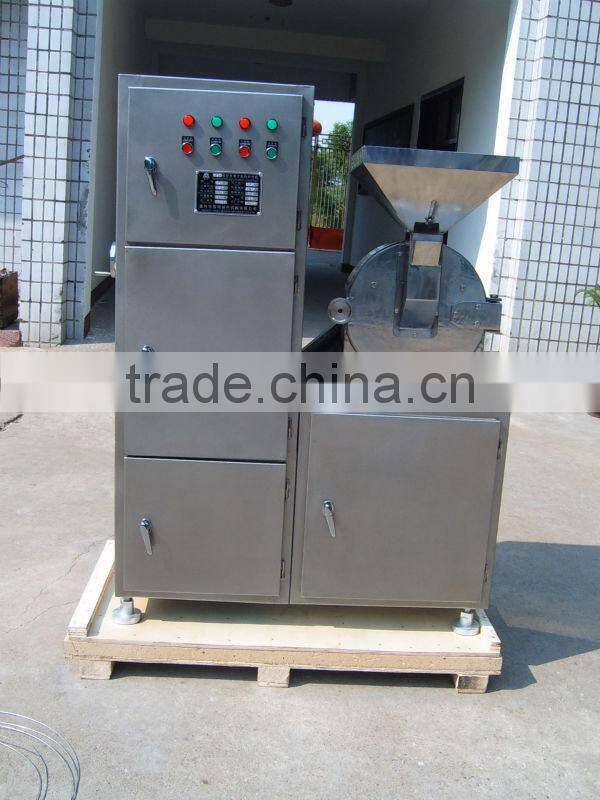

B series stainless steel grinder
Brief introduction:
This pulverizer set consists of SF, crusher, ESC material boxes and ESC vacuum cleaner.Solve the material in the process of crushing dust float in the sky.
Its principle of work is the material into the crushing chamber, in the activities of the high speed rotating toothed plate and the fixed fluted disc friction, shearing, impacting and material under the action of the collisions between the shattered, after the screen becomes a powder as needed.
This set of grinder, material boxes and vacuum cleaners, are all made of stainless steel materials.In accordance with the "GMP" medicine production requirements.
According to user needs, you can configure the parts of water cooling and water cooling and feed propeller.
The main technical parameters:
Model |
Production capacity |
Spindle speed |
Working noise |
Grinding fineness |
The motor power |
The fan power |
Overall dimensions |
Weight |
SY-180B |
10-30kg/h |
4200r/min |
<85db |
20-120 mesh |
2.2kw |
0.18kw |
890*500*1260mm |
120kg |
SY-250B |
50-250kg/h |
4200r/min |
<85db |
20-120 mesh |
5.5kw |
1.1kw |
110*650*1500mm |
250kg |
SY-320B |
80-80.kg/h |
4200r/min |
<85db |
20-120 mesh |
7.5kw |
1.1kw |
1250*1070*1300mm |
300kg |
SY-420B |
160-500kg/h |
3600r/min |
<85db |
20-120 mesh |
11kw |
1.5kw |
1350*700*1700mm |
400kg |
SY-520B |
300-800kg/h |
3000r/min |
<85db |
20-120 mesh |
18kw |
1.5kw |
1600*1000*1750mm |
700kg |
