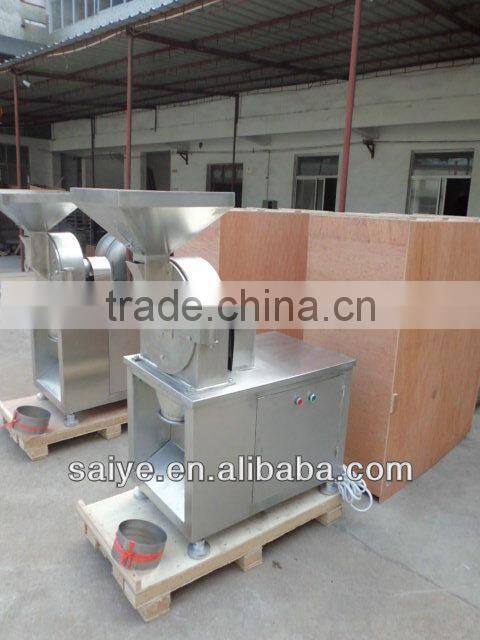

SF series pharmaceutical grinder for sale/pharmaceutical equipment
Brief introduction:
This machine is applicable to the pharmaceutical, chemical, agricultural chemicals, food and grain industries, has extensive USES.

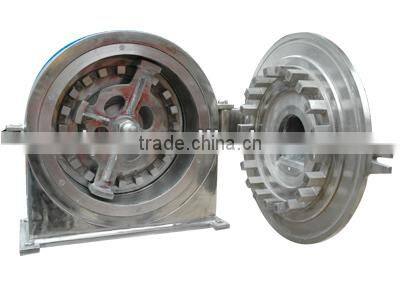

This machine use the tooth plate and fixed means of high speed relative motion, make shattered by the impact, friction and comprehensive function such as the impact among the materials themselves are crushed.This machine of simple structure, strong, stable operation, crushing efficiency is good, the crushed material can directly by the host the eduction in grinding chamber, the particle size can be obtained by changing sieve of different aperture.Casing wall to reach all the machining surface level off is smooth, changed the old type wall roughness, the phenomenon of accumulated powder, medicines, food, chemical and other production can meet the national standards, to suit the requirements of GMP.According to user needs, you can configure the part of the water, all water, feed screw.
The main technical parameters:
model | SYSF-250 | SSYF-320 | SYSF-420 | SYSF-520 |
Production capacity | 50-250.kg/h | 80-80.kg/h | 200-200.kg/h | 300-300.kg/h |
Spindle speed | 4200r/min | 4200r/min | 3600r/min | 3000r/min |
Working noise | <85db | <85db | <85db | <85db |
Grinding fineness Orders | 20-120mesh | sh | sh | sh |
The motor power | 5.5kw | 7.5kw | 11kw | 18kw |
Overall dimensions (L*W*H)mm | 630*490*1160mm | 810*500*1230mm | 700 * 500 *1500mm | 1000 * 900 *1600mm |
Weight | 155kg | 208kg | 258kg | 500kg |
