SYXD-1700M Muffle

Name: SYXD-1700M Muffle
Brand: SAIYE
SKU: 140876818
Availability: InStock

Zhengzhou Saiye Machinery Equipment Limited

US$ 2,000 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

SAIYE

Model Number:

SYXD-1700M

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao/ningbo/guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name SAIYE

Model Number SYXD-1700M

Place of Origin Henan, China

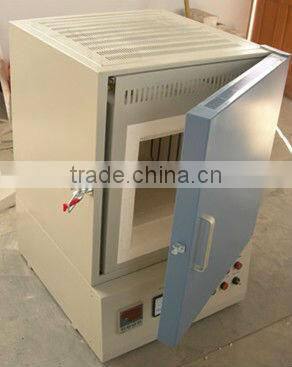

SYXD-1700M Muffle

SYXD-1700M is the most cost effective benchtop high temperature muffle furnace . The furnace consists of high quality alumina fiber brick and MoSi2 heating elements with chamber of 8"x8"x8", and temperature is controlled by high precision SCR ( Silicon Controlled Rectifier) digital controller with accuracy +/-1.C and 30 segments programmable up to 1700.C or 3092 oF. It is an ideal tool for materials annealing and sintering in your research laboratory..

Technical parameter;

Inside Chamber Size	200 x 200 x 200 mm (8"x8"x8", 8 Liter)
Standard Working Temperature	1600.C ( continuous )
Maximum Working Temperature	1700.C ( < 3 hrs)
Temperature Control	30 steps programmable and PID automatic control
Heating Rate	0~10.C / min (suggestion: < 10.C)
Temperature Accuracy	+/- 1.C
Heating Element	MoSi2 heating elements
Working Voltage	AC 220V Single Phase 60/50 Hz (or according to your requirement)
Max. Power	8KW
Outside Size	550 x 540 x 820 mm
Net Weight	170 Kg

Standard Sizes:

Model	Chamber size(WxHxDmm)	Max. Temperature
XD-1700M	150x150x150mm (6"x6"x6")	1700.C
XD-1700M	150x150x200mm (6"x6"x8")	1700.C
XD-1700M	200x200x200mm (8"x8"x8")	1700.C
XD-1700M	200x200x300mm (8"x8"x12")	1700.C
XD-1700M	250x250x300mm (10"x10"x12")	1700.C
XD-1700M	300x300x400mm (12"x12"x16")	1700.C
XD-1700M	350x350x400mm (14"x14"x16")	1700.C
XD-1700M	400x400x400mm (16"x16"x16")	1700.C
XD-1700M	500x500x500mm (20"x20"x20")	1700.C
