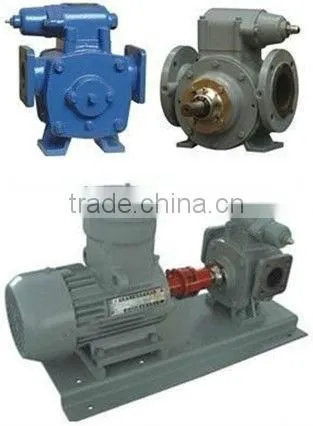

rotary vane pump / truck vane pump / tank oil vane pump

Specifications

SUB Series Vane Pump is positive displacement vane pump

WD-SUB Series Vane Pump is positive displacement vane pump, applied to transfer gasoline, kerosene, diesel and other light oil, used to load & unload in stock terminal, also on oil tank trucks and mobile fuel unit.



Technical Data:



Model	WD-SUB-40	WD-SUB-50	WD-SUB-80
Inlet & Outlet Size	40mm	50mm	80mm
Flow Rate	180L/min	250L/min	550L/min
Vacuum	0.06MPa	0.06MPa	0.06MPa
Speed	960RPM	960RM	960RPM
Kw	1.5KW	1.5KW



Application:

Fuel Oil Delivery Truck

Fleet Refuelers

Aviation Refuelers

Loading & Unloading in Stock Terminal

Transport of Petrol, Gasoline, Diesel, Kerosene and Many More



Advantage:

An excellent self-priming performance, vacuum up 0.095MPa,intstead of vacuum pump to clean the tank in vessel, truck, etc.

To transport gas-liquid two-phase, up to 50%,completely solve air lock, cavitation.

Sliding vane design provides sustained performance and trouble free operation, high reliability

Adjustable relief valve protects pump from excessive pressure.
