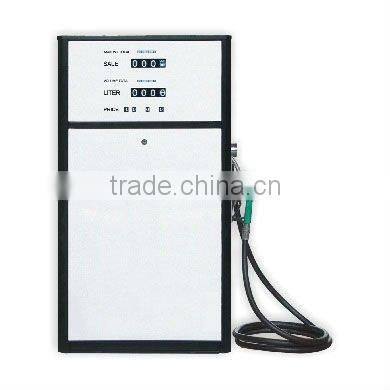

Mechanical Type Fuel Dispenser
Features:
1. Adopting combination pump or separate pump,smaller shape and convenient maintenance.
2. Adopting painting-side for common type and stainless steel side for luxurious type.
3. Leading-static and Highly-hang oil pipe(inner-diameter φ 19mm,length 4500mm).
4. Features fueling as ration, resetting by computer and redisplaying when power cut.
5. Big-size aluminium nozzle boot.
6. Submersible pump to be optional.
7. Flow meter features high precision and strong reliability.
8. Excellent electromagnetic compatibility and strongly anti-jamming.
9. Be capable of connecting with central computer in gas station.
10. Conveniently combining and extending function.
11. To update IC card fuel dispenser.
Technical index and parameter:
Ambient temperature: -25°C ~ +55°C
Humidity: ≤95%
Max flow: 50L/min
Accuracy:±0.3%
Repeating error:≤0.15%
Inlet pressure: ≥54kPa
Outlet pressure: ≤0.3MPa
Power: 380V 50Hz (220V to be optional)
Noise: ≤80dB(A class)
Unit price range: 0.01 ~ 99.99
Single volume range: 0.01~ 9999.99
Accumulative volume range: 0.01 ~ 9999999999.99
Explosion-proof certifcate: CNEx09.1422
Explosion-proof sign: Exdm [ib] ib Ⅱ AT3
