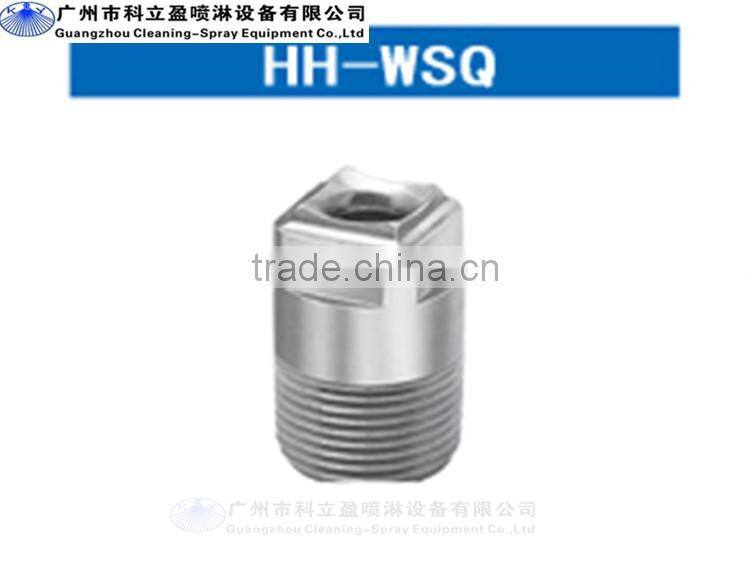

3/8" HH-WSQ series full jet spray nozzle

3/8" HH-WSQ series full jet spray nozzle

Design feature:

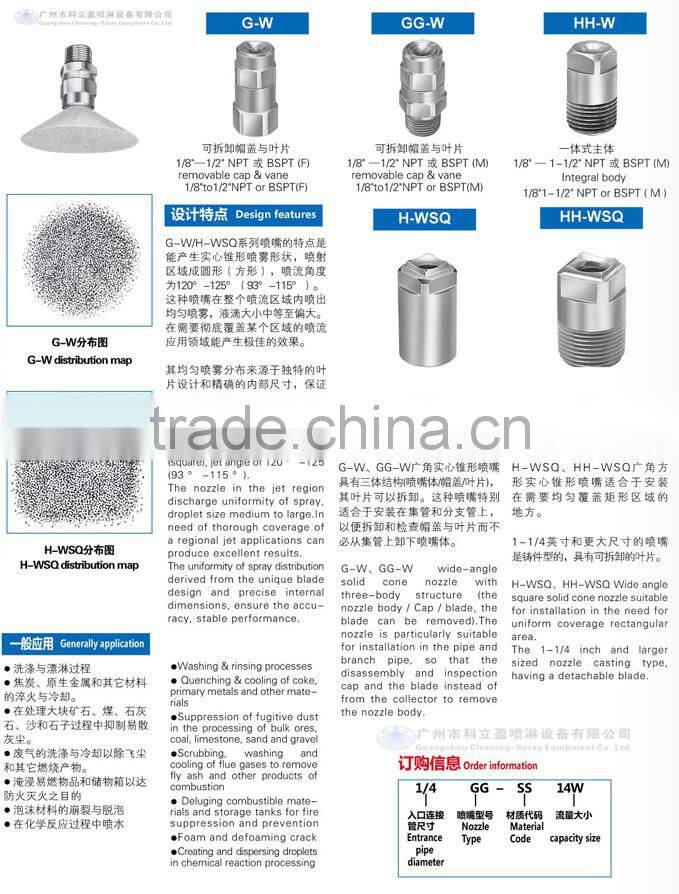

Wide angle square spray full cone spray nozzle feature a solid cone-shaped spray pattern with a square impact area and spray angles of 93°-110°.

Their uniform spray distribution of medium to large drops is the result of the unique full cone spray nozzle vane design, exacting internal proportions, and precision machining. The nozzles are ideal for installations requiring uniform coverage of rectangular and/or square areas.

Common application:

• Washing and rinsing process
• Quenching and cooling of coke, primary metal and other materials.
• Suppression of fugitive dust in the processing of bulk ores,coal,limestone,sand and gravel
• Scrubbing,washing and cooling of flue gases to remove fly ash and other products of combustion
• Deluging combustible material and storage tanks for fire suppression and prevention
• Foam and defoaming crack
• Creating and dispersing droplets in chemical reaction processing
