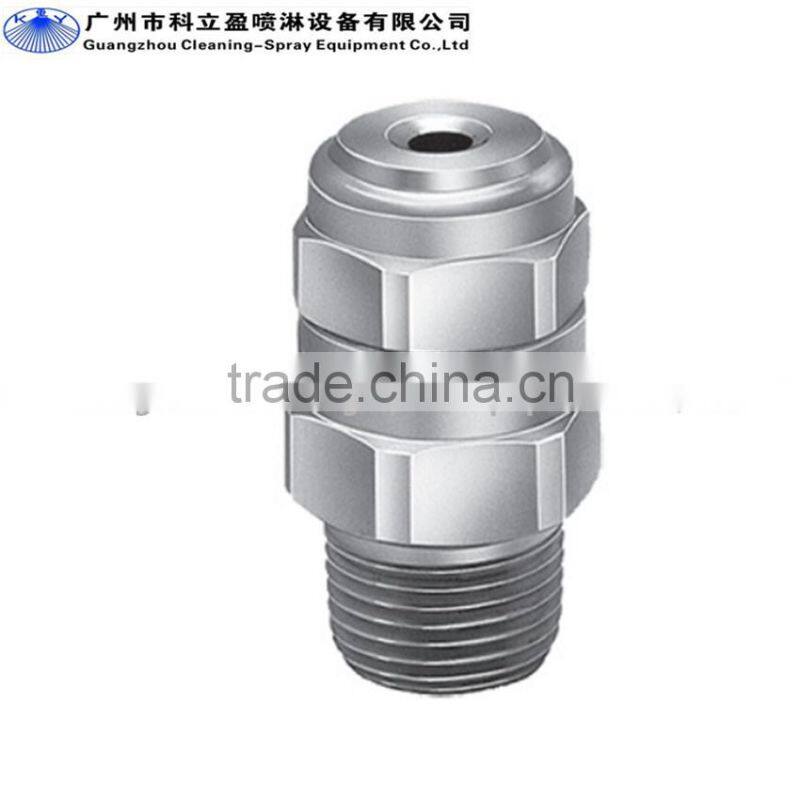

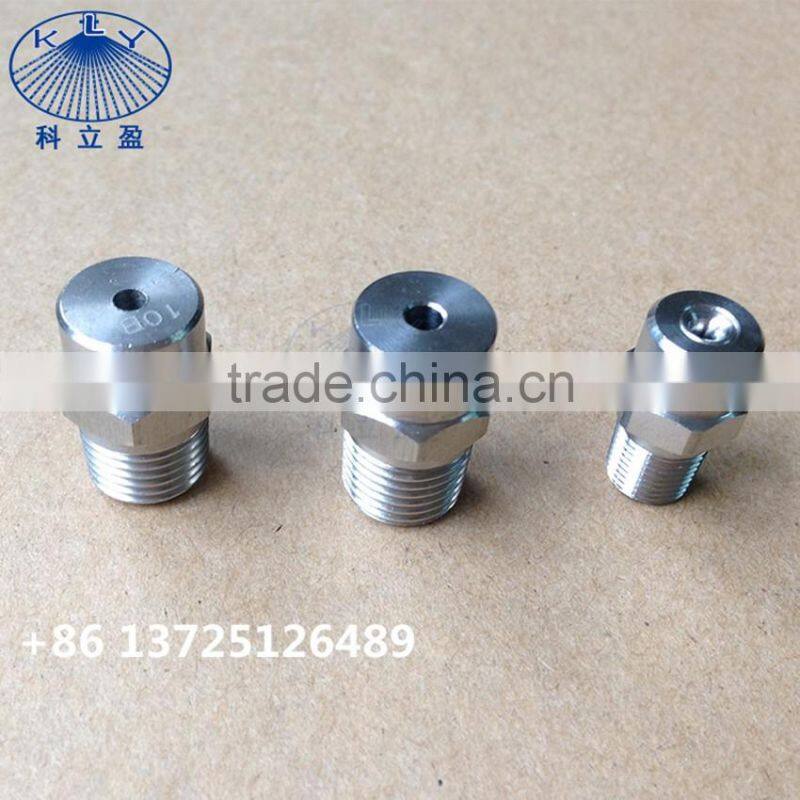

GG Series Full Cone Spray Nozzle

GG series full cone spray nozzle

Design feature:

Small capacity full cone jet nozzle features a solid cone-shaped spray pattern with a round impact area . Their uniform spray distribution of medium- to large-sized drops results from a unique vane design with large flow passages and superior control characteristics.

Precision-engineered and manufactured to exacting dimensions to ensure accurate and reliable performance.

Produce excellent results in spraying applications requiring complete coverage of an area or zone.

GGA feature romovable caps and vanes for easy inspection and cleaning.

Model:  GG full cone spray nozzle

Material:  303 stainless steel (316ss or brass on request)

Spray angle: 50°-90°

Operating pressure: 0.5-10 bar

Connection:1/8",1/4",3/8" ,1/2" NPT or BSPT(M)

Common application:

• Washing
• Cooling
• Spraying
• Material spraying
• Dust pressure ash
• Washing and rinsing processes
• Quenching and cooling of coke, primary metals, and other material
• Suppression of fugitive dust in the processing of bulk ores, coal, limestone, sand, and gravel
• Scrubbing, washing, and cooling of flue gases to remove fly ash and other products of combustion
• Deluging combustible materials and storage tanks for fire suppression and prevention
• Breaking up and deaerating foam
• Creating and dispersing drops in chemical reaction processing

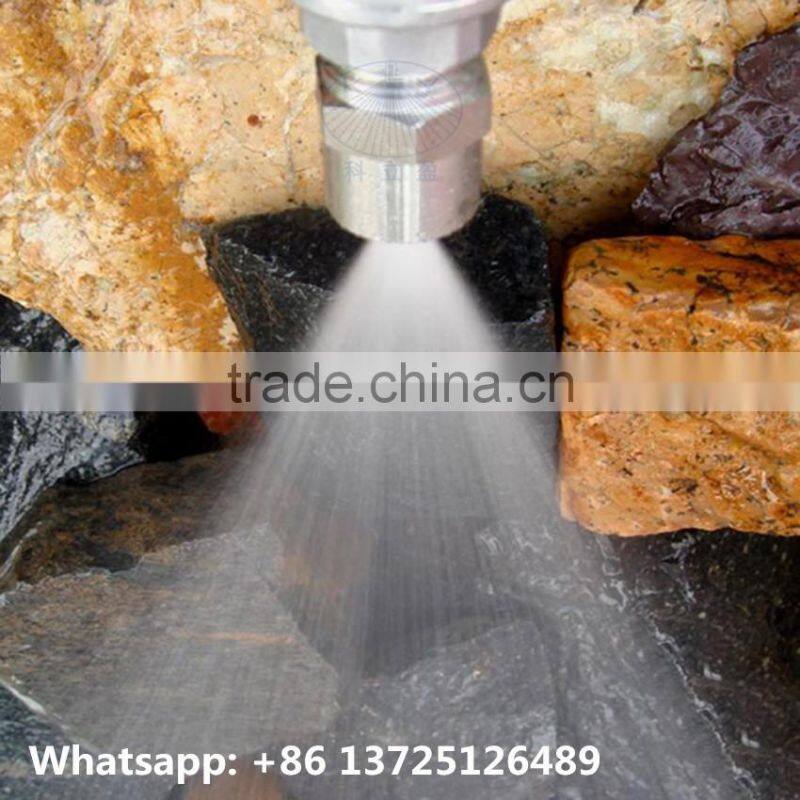

Spray effect of full cone spray nozzle:

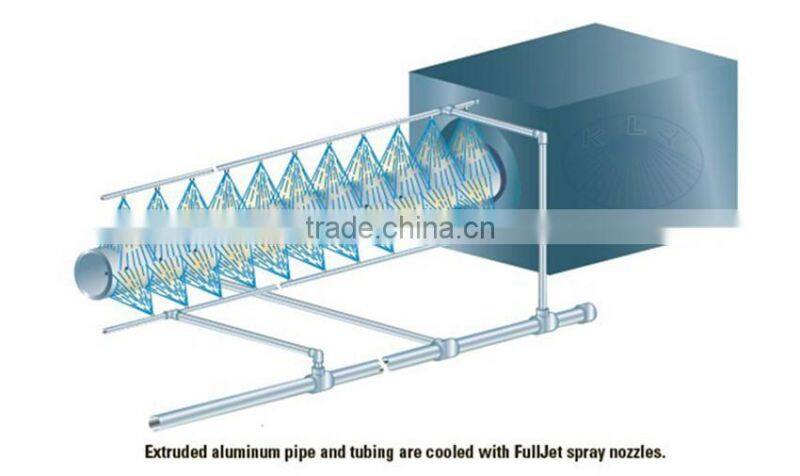

Application of full cone spray nozzle:

Company Photo:

Exibition photos:
