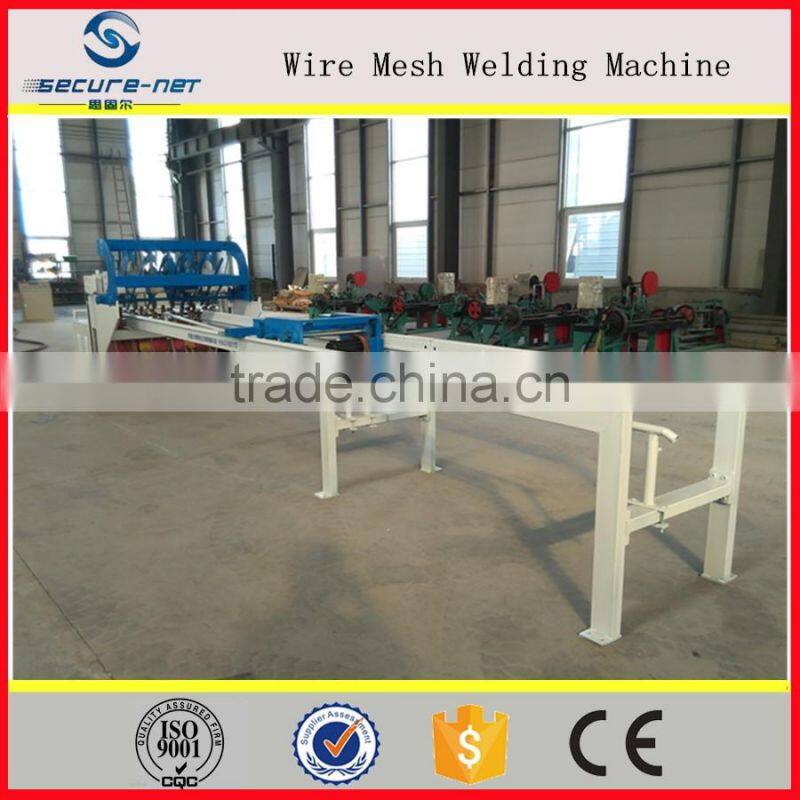

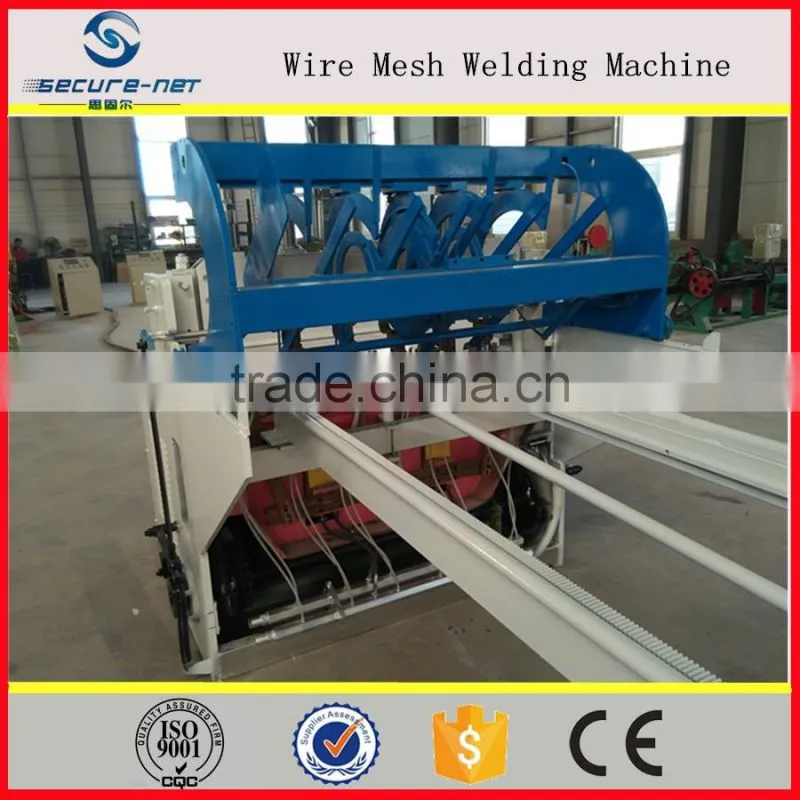

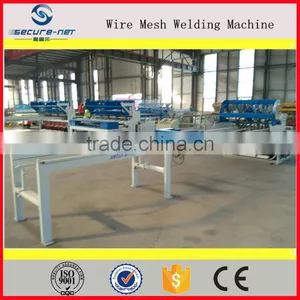

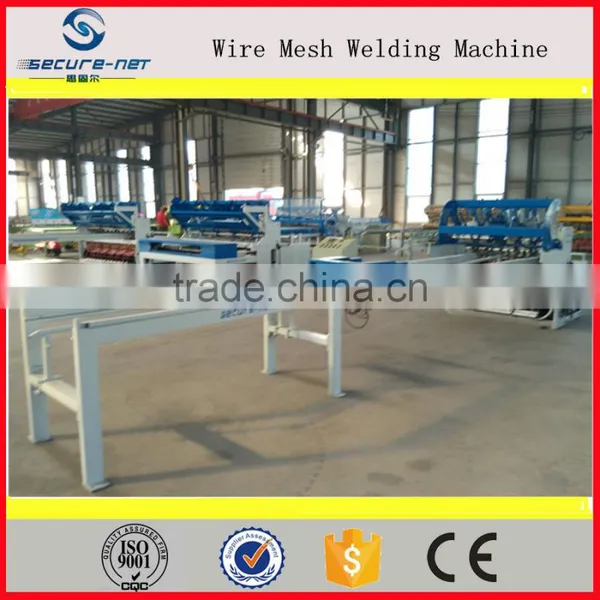

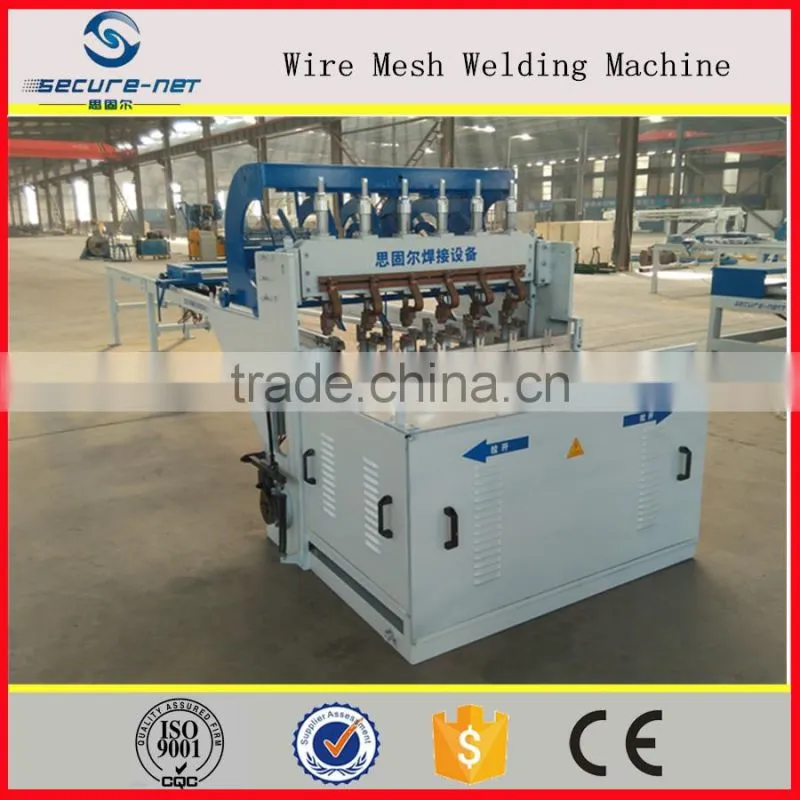

GBP-1000 customized wire mesh panel welding machine
The main parameter of the wire mesh welding machine
| Wire diameter | 5-8mm |
| Welding aperture | 100*100-300*300mm |
| Width of mesh | 1000mm |
| Number of electrodes | 6 |
| Welding speed | 40times/min |
| Rated voltage | 380V 50HZ |
| Rated power | 300KVA |
| Machine weight | 2.0T |
| Overall dimension | 6*1.8*1.7m |
Product description of the wire mesh welding machine:
1.This equipment adopts synchronous control technology,separate-phase welding and welding time is composed of digital programming of PLC system .There are two kinds of tablet PC input panel,One kind is touch panel ,another is Keyboard .The operation is more intelligent and rationalization.
2.The machine can press the panel tightly once , and weld by several times .On the same panel,this machine can weld 30 kinds of different size of meshs between weft and weft.That is the biggest advantages of this machine.

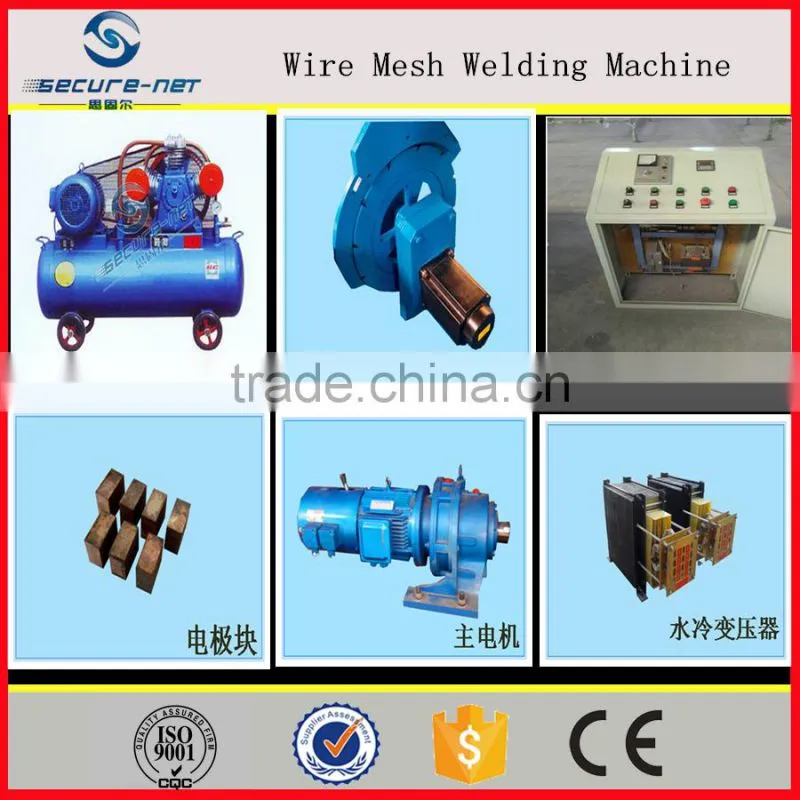

3.The machine adopts new type of high efficient welding transformer ,greatly expand the scope of welding diameters.(This wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).
4.The mesh panel pulling part and the hopper is controled by the 16N stepper motor,and the steeper is working through the stepper motor drives.
5.Electrodes, the lower seat and copper platoon is copper material,and the electrode block is chromium zirconium copper material.
Our services
1.guarantee time:1 year.
2.necessary spare parts could be provided.
3.all machine are adjusted and tested before delivery.
4.oversea service such as worker training and installation could be provided.
Hebei Secure-Net Fence Facility Co., Ltd.
1.Hebei Secure-Nett Fence Facility Co.,Ltd.founded in2000,is located in Anping,famous as production base of wire mesh in China.
2.Now Secure-net has developed into an integrated entity with R&D,manufacturing and trading.
3.Main products of Secure-net are
CNC welding wire mesh machine
welded wire mesh machine
chain link fence machine
expanded metal mesh machine
barbed wire machine
razor barbed wire machine
gabion mesh machine
.....
Welcome to visit our factory at any time
contact:Gail
Tel:86-18031855078
Fax:86-031185245076
Whatsapp/wechat:+18832128285
QQ:2746862612
