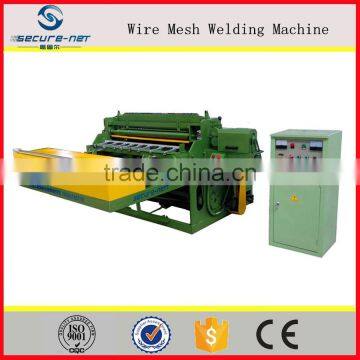

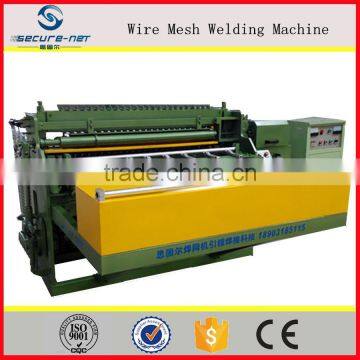

Welding 1.4-2.5mm Building Steel Wire Mesh Machine
The main parameter of the welding wire mesh machine:
Wire diameter:1.4-2.5mm
Welding aperture:50*50-200*200mm
Width of mesh:1200mm(adjustable)
Rated power:130KVA
Rated voltage:AC380V 50HZ(customized)
Number of electrodes:25(adjustable)
Welding speed:60times/min
Machine weight:2.5T
Overall dimension:2.5*2.5*1.5m(customized)
Product description of the welding wire mesh machine:
1.This machine adopts electrical synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit.This operation is accurate,it is stable,firm welded spot is firm and without weled tracks.
2.The cross and line wires are fed from coils.
3.This machine is equipped with precise equipment for weft cutting and position,so the length of wefts is identical and regular,it is unnecessary to slice the side.
4.Mesh pulling system adopts elastic tension link and openig positioning device,it is easy to regulate the mesh hole and mesh opening size is rather accurate,welding aperture could adjust randomly with range.Not only welding speed is fast but also it is easy to learn and operate.
5.The finished product can be in coil or in panel.
Auxiliary equipment of the welding wire mesh machine:
Straightening cutting machine
Wire feeding plate
Application if the welding wire mesh machine:
1.Wire mesh panel for fence and casting building roof.
2.Wire mesh panel for construction.
Host with plastic film packaging, numerical control cabinet packed in wooden cases.
Our Services
1 .Maintenance period:one year
2.If the buyers need, we can send our technical staff to the buyers’ place to
debug the machine and providing the training in 30 days after the machines
arrive at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will
assign the expertised staff to your company. And the fees,such as round-trip
tickets, accomodation etc, are all in your account.
Hebei Secure-Nett Fence Facility Co.,Ltd.
1.Hebei Secure-Nett Fence Facility Co.,Ltd.founded in 2000,is located in Anping,famous as production base of wire mesh in China.
2.Now Secure-net has developed into an integrated entity with R&D,manufacturing and trading.
3.Main products of Secure-net are
CNC wire mesh welding machine
welded wire mesh machine
expanded metal mesh machine
chain link fence machine
gabion mesh machine
......
Welcome to visit our factory at any time
Contact:Gail
Tel:86-18031855078
Fax:86-031185245076
Whatsapp:+18832128285
QQ:2746862612
