Best price electric welding machine
Why choose us:
Eelctric welding machine
1.Have professional machine design department
2.Have electronic Reserch&Development department
3.Have ISO9001:2008 certificate
4.Have professional debuggers
5.Have After-sales service team(24hours online)
Electric welding machine

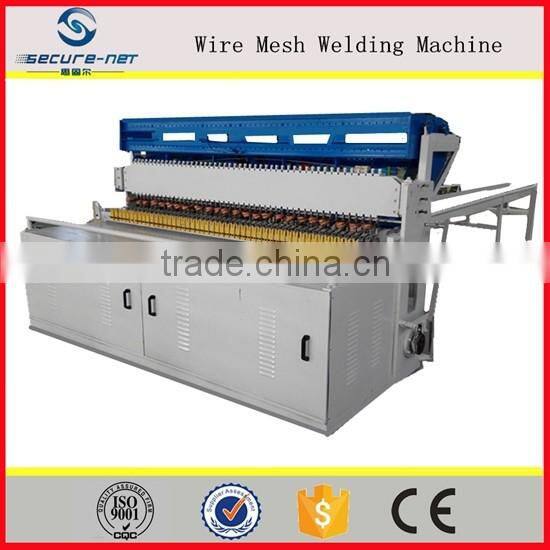

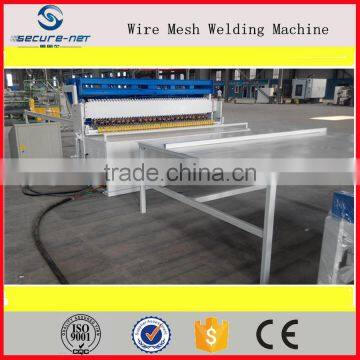

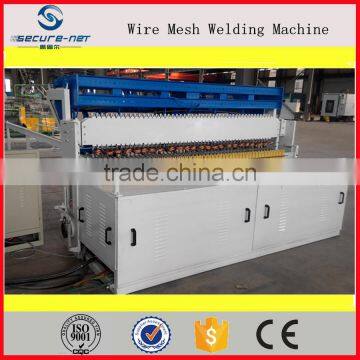

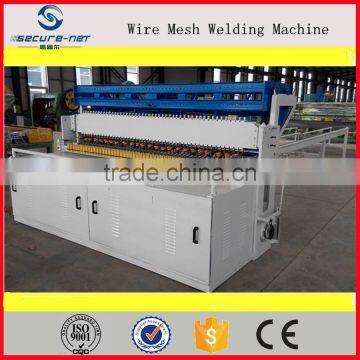

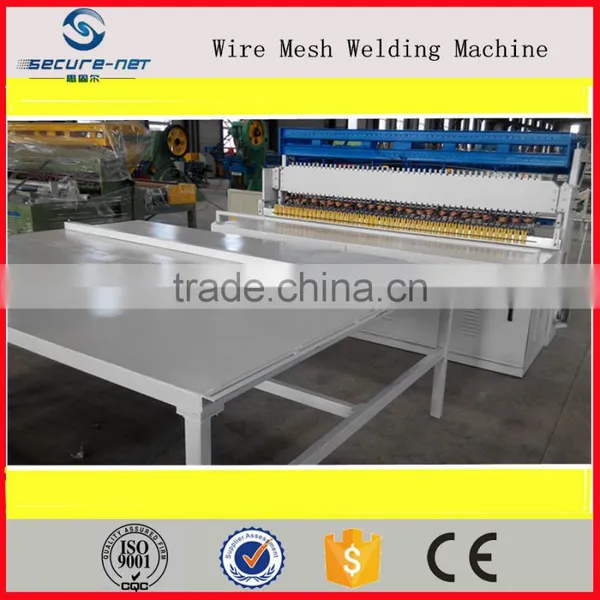

Main machine
Main machine

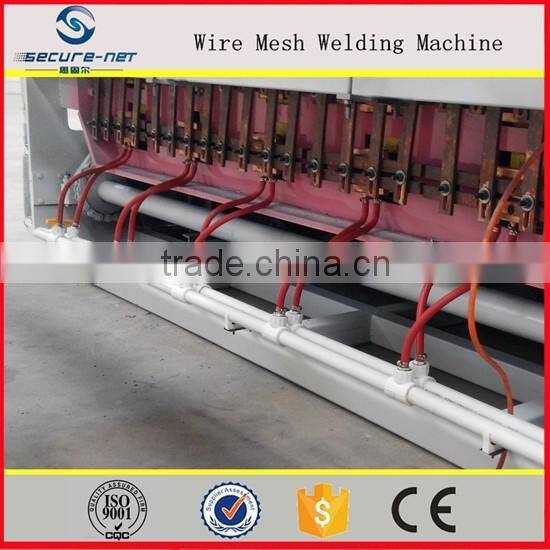

Water-cooling system
Threading part
Office
Factory
Work shop
Main parameter:
| wire diameter | 2.5-5(mm) | Rate voltage | AC380V50Hz |
| welding aperture | 50*50-300*300(mm) | Rated power | 800kVA |
| welding width | 2500(mm) | machine weight | 3.5T |
| number of electrodes | 48 | overall dimension | 9*3.2*1.7(m) |
| welding speed | 45times/min |
Machine performance
1. The electric welding machine adopts synchronous control technique, both welding times and seperate welding are controlled by digital PLC system with touch screen, so that the operation is much more intelliget, reasonable and has a compression, sub-welding characteristics.
2. The drawing system is controlled by step motor, welding speed is much faster and more stable.
3..The biggest advantage of electric welding machine system is that more than 30kinds of different mesh size canbe welded on the same panel.
4.Electric welding machine welding adopt late-model efficient welding transformer,The voltage adjusting range is big and it can fall into eight diffrent grades,which enlarge the range of wire diameter size ,The transformer colled by water circulation system.
5.New and high efficiency of electric welding machine wire diameter scope.Easy handling ,high flexibility and high working efficiency achieve a perfect welding machine.
Application:
Wire mesh panel for fence and casting building roof.
If you are intrested in our products ,feel free to contact us:
Contact person:Summer Feng
