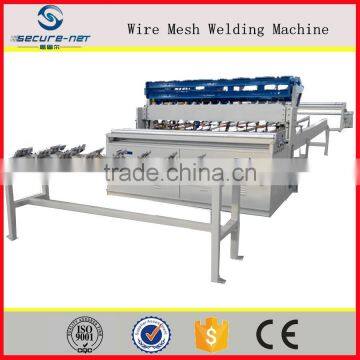

Poultry Cage Welding Machine

Poultry Cage Welding Machine photo-1
Poultry Cage Welding Machine photo-2
Poultry Cage Welding Machine photo-3
Poultry Cage Welding Machine photo-4
Poultry Cage Welding Machine photo-5
US$ 10,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Application:
Birds
Feature:
Eco-Friendly, Stocked
Place of Origin:
Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Tianjin Xing
Delivery Detail:
Delivery time depends on order quantity.
Application Birds
Feature Eco-Friendly, Stocked
Place of Origin Hebei, China
Brand Name SECURE-NETT
Model Number SKYZ-1200mm



About secure-nett Fence Facility Co.,Ltd



1. Have professional machine design department



2. Have electronic Reserch & Development department



3. Have ISO9001:2008certificate



4. Have professional debuggers



5. Have After-Sales service team(24hours online)



Poultry cage welding  machine







 Poultry cage welding machine Feature:



1.       The production line consists of main welding machine ,electrical parts, mechanical parts.



2.       The line wire can be feed  from wire coils automatically, and  mesh drawing system is controlled by servo                  motor;Cross wire pre-cut and feeding is automatic and derived by step motor.



3.       The raw material is applicable for low carbon steel wire or stainless steel wire .



4.       The mesh size is precise and the machine can be set the width and length according to customer’s requirement .



Poultry cage welding machinePoultry cage welding machinePoultry cage welding machine



Poultry cage welding  machine parameter:



diameter2.0-3.2(mm)rated voltageAC380V50Hz
welding aperture50*50-200*200(mm)rated power200KVA
welding width1200(mm)welding speed0-45times/min
number of electrodes16overall dimension6*2*1.8(m)

Machine parts and usage:

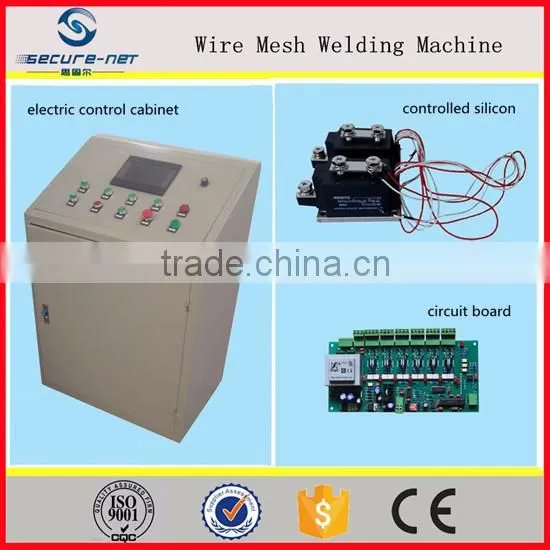

Electrical parts of poultry cage welding machine

Poultry cage welding machine

Usage:

1.electric control cabinet : to control all machine's systerm

ntrolled silicon: Controllable rectifier, inverter, frequency conversion, pressure adjustment

3.circuit board: Batch production and optimization of the fixed circuit using electrical layout

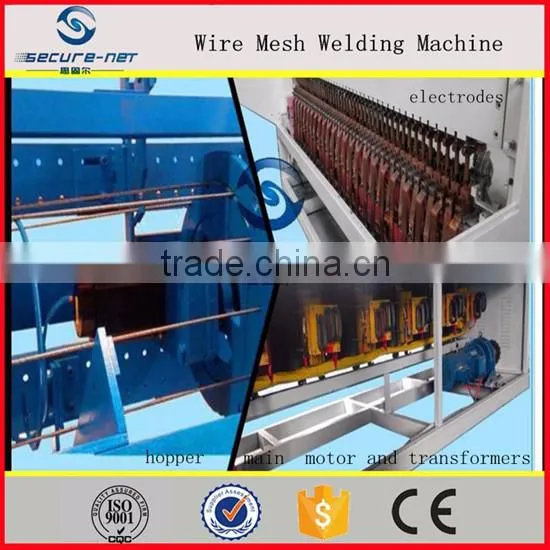

Mechanical parts of poultry cage welding  machine:
Poultry cage welding machine

usage:

1.hopper :put cross wire in itand cross wire feeding automatic

2.eletrodes:welded wire mesh (chrome,zirconium)spot firm and long service

3.main motor and transformer:power-generating and transformer enlarge the range of wire diameter size

Finished products and usage of poultry cage welding machine :

Poultry cage welding machine

Usage:It can be used for producing many kinds of cage for chicken ,mink,chick,fog and pet etc.

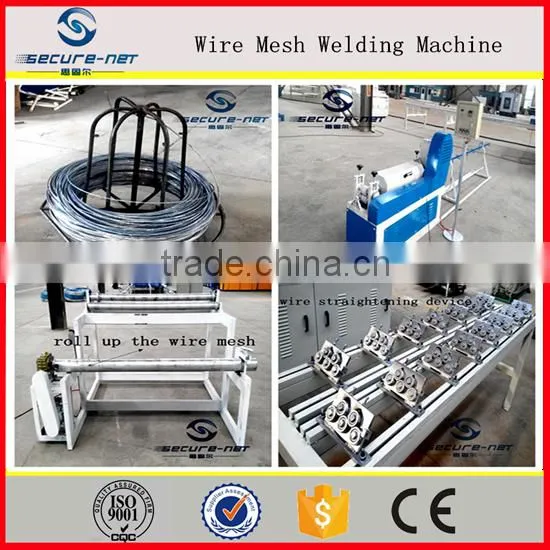

Auxiliary machine for poultry cage welding machine:

Poultry cage welding machine



 Usage:



sh rolling machine:make wire mesh in roll



2.wire tray:put the line wire on it



3.wire straightening wheel:in order to make the net neat and smooth



4.wire straightening and cutting machine:straightening and cutting wire



Best price bird cages welded wire mesh machine

 Service:

1.If  the buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination pory



2.Maintenance period:One year for whole machine except vulnerable parts



3.The number of technical persons :one technician per machine



4.The fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees



During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.



Company information:



1.We are professional wire mesh machine manufacture with 15 years experiences in china



2.We are located  in Anping ,The wire mesh base in China, with huge wire mesh industry support, All of our machines comply with international quality standards and customers' needs ,and are greatly appreciated in variety of markets all over the world.



2..Hebei Secure-Nett Fence Facility Co. ,Ltd .Established in2000. In 2002 the company passed the ISO9001 quality management system certification, the end of 2006 the company has made the right to export. Main products:Poultry cage welding machine, Construction mesh welding machine, Fence mesh welding machine, Reinforcing mesh welding machine and related accessories.

Pictures show:

office

Poultry cage welding machinePoultry cage welding machine

factory

Poultry cage welding machine

main machine

Poultry cage welding machine

certificate

Poultry cage welding machine
