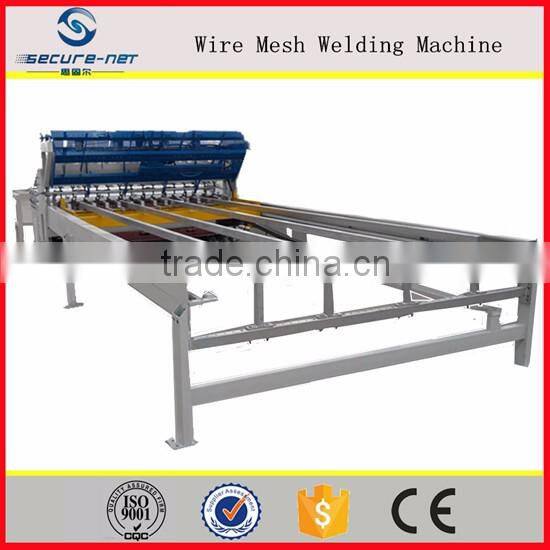

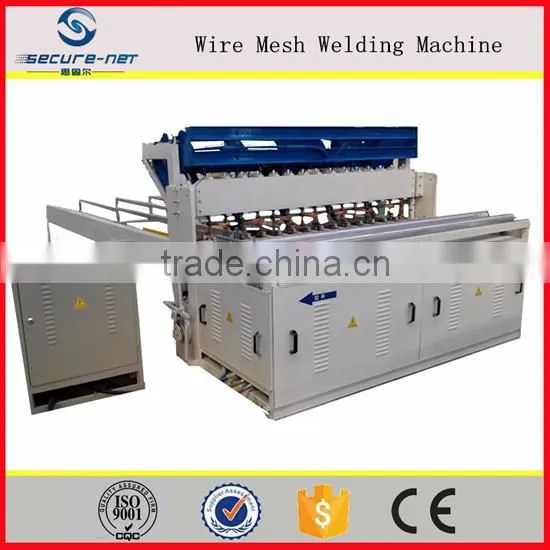

Advanced technology bird cages mesh welding machine (factory)
Bird cages mesh welding machine
1.Good quality&High efficiency
2.Stable working
3.ISOcertificated
Below information is required for quick quotation
1.wire diameter:From____mm to___mm.
2.Line wire space: From____mm to___mm.
3.Mesh width:1200mm,1500mm,2100mm,2500mm,3000mm(customized).
4.Industrial voltage:380V 50Hz (customized).
5.Do you want to weld wire mesh panel or mesh in coil?
6.Is the auxiliary equipment also require?
Bird cages mesh welding machine performance characteristics:
Bird cages mesh welding machine adopts electronic synchronous control technique,welding time and sub-control welding are all composed of digital integrated circuit,which has high control accuracy,stable performance, firm welding spots and without burned mark.The bird cages mesh welding machine speed is fast and the operation is simple and easy to master.The weft matched with the accurate weft cutting device and accurate positioning device,ensures the weft at the same length and without being cut.mesh drowing system is controlled by servo motor which improved the precision of mesh opening size,meanwhile the longitudinal and transversal spacing are adjustable.
Bird cages mesh welding machine main parameter:
| diameter | 2.0-3.2(mm) | rated voltage | AC380V50Hz |
| welding aperture | 50*50-200*200(mm) | rated power | 200KVA |
| welding width | 1200(mm) | welding speed | 0-45times/min |
| number of electrodes | 16 | overall dimension | 6*2*1.8(m) |
Application:
It can be used for producing many kinds of cage for chicken,mink,chick,fog ,dog and pet etc
Auxiliary machine:

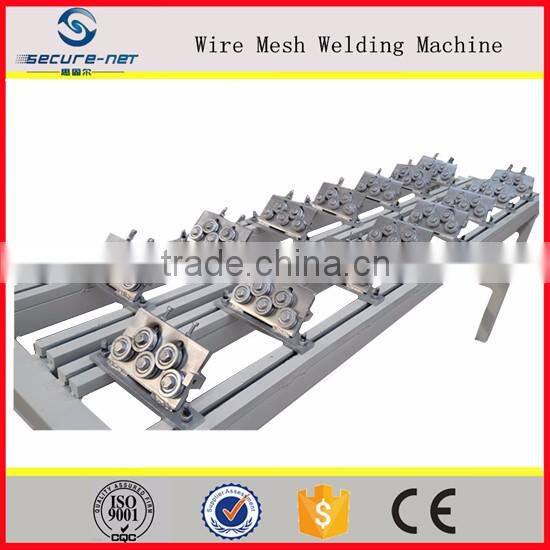

1.Automatically wire straightening and cutting machine

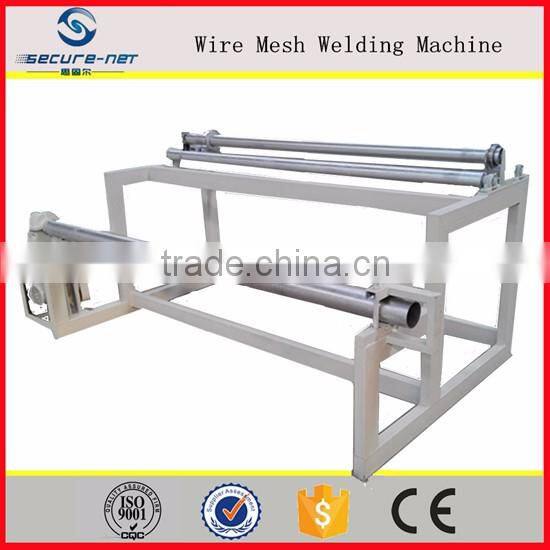

2.Wire tray
3.Mesh rolling machine
4.Wire straightening
1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is nude packing or plastic packing.
3.Also can do as customer's request.
If you have any problem ,let me know,will help you try my best.
