Cheap Galvanized Welded Wire Poultry Chicken Cage Machine

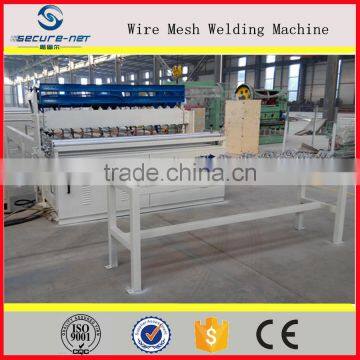

Cheap Galvanized Welded Wire Poultry Chicken Cage Machine photo-1
Cheap Galvanized Welded Wire Poultry Chicken Cage Machine photo-2
Cheap Galvanized Welded Wire Poultry Chicken Cage Machine photo-3
Cheap Galvanized Welded Wire Poultry Chicken Cage Machine photo-4

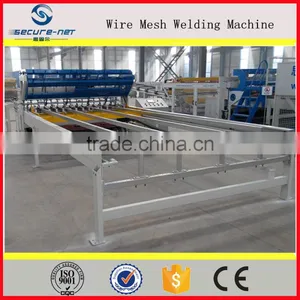

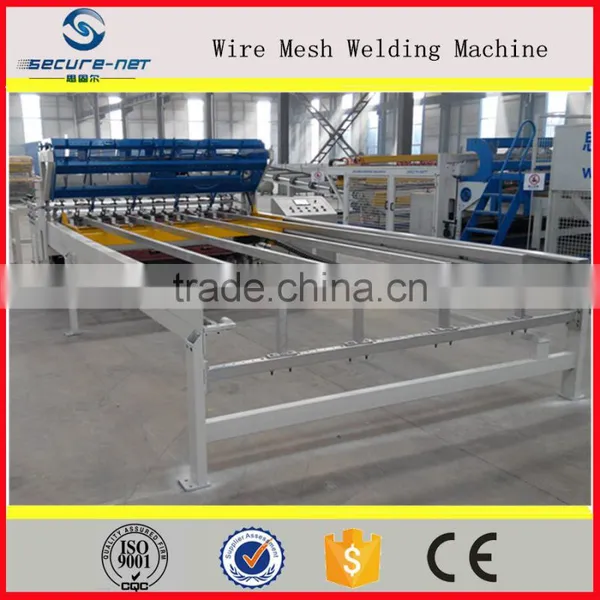

Cheap Galvanized Welded Wire Poultry Chicken Cage Machine photo-5

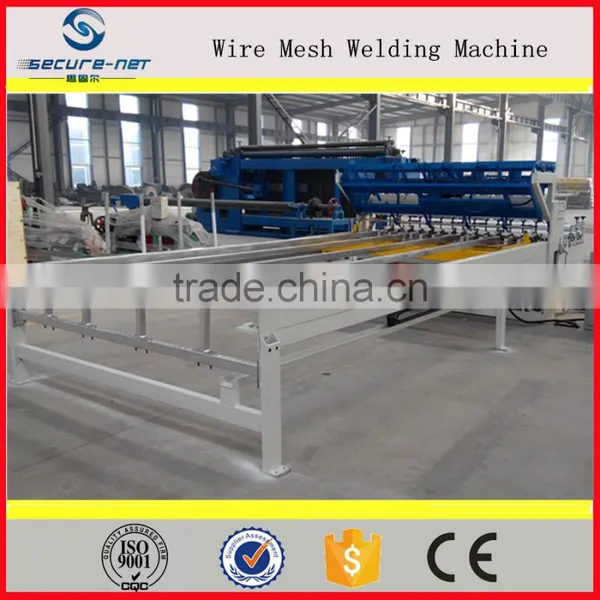

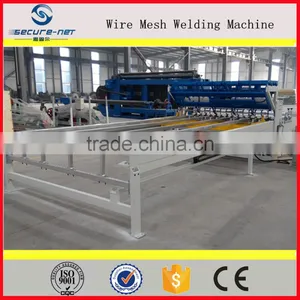

Cheap Galvanized Welded Wire Poultry Chicken Cage Machine photo-6
US$ 10,000 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
SECURE-NETT
Model Number:
SKYZ-1200
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Tianjin Xing
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name SECURE-NETT
Model Number SKYZ-1200
After-sales Service Provided Engineers available to service machinery overseas

Cheap galvanized welded wire poultry chicken cage machine

Welded wire poultry chicken cage machine performance characteristics:

1.welded wire poultry chicken cage  machine adopts electronic synchronous control technique,welding time and sub-control welding are all composed of digital integrated circuit,which has high control accuracy,stable performance, firm welding spots and without burned mark.

2.The welded wire poultry chicken cage  machine speed is fast and the operation is simple and easy to master.

3.The weft matched with the accurate weft cutting device and accurate positioning device,ensures the weft at the same length and without being cut.

4.Mesh drowing system is controlled by servo motor which improved the precision of mesh opening size,meanwhile the longitudinal and transversal spacing are adjustable.

cheap galvanized welded wire poultry chicken cage machine

Chicken cage poultry mesh welding machine electric control cabinet:

1.PLC control with the humanized operation interface ,easy to operate and master

2.The adjustment of mesh specifications uses the touch screen,it is very easy to set the weldidata.

3.The touch scrren canbe of in English, The mesh size can be adjusted to meet the diffrent needs of users

cheap galvanized welded wire poultry chicken cage machine









Main parameter of the welded wire poultry chicken cage machine:

diameter2.0-3.2(mm)rated voltageAC380V50Hz
welding aperture50*50-200*200(mm)rated power200KVA
welding width1200(mm)welding speed0-45times/min
number of electrodes16overall dimension6*2*1.8(m)
Suitable material:stainless steel wire ,low-carbon steel wire ,galvanized wire iron wire ,rebar.
cheap galvanized welded wire poultry chicken cage machine
 Application:
Welded wire poultry chicken cage machine can be used for producing many kinds of cage for chicken ,mink chick ,fog and pet etc.
cheap galvanized welded wire poultry chicken cage machinecheap galvanized welded wire poultry chicken cage machinecheap galvanized welded wire poultry chicken cage machine



Packaging & Shipping

1.The spare parts and control cabinet will be loaded in wooden box.

2.The main machine is nude packing or plastic packing.

3.Also can do as customer's request.



Our Services

1.If the buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination pory

2.Maintenance period:One year for whole machine except vulnerable parts

3.The number of technical persons :one technician per machine

4.The fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees

During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.

Company Information



cheap galvanized welded wire poultry chicken cage machine



1.Hebei Secure-Nett Fence Facility Co.,Ltd . In 2002 the company passed the ISO9001 quality management system certification, the end of 2006 the company has made the right to export.

2.SECURE-NETT is located  in Anping ,The wire mesh base in China,with huge wire mesh industry support,All of our machines comply with international quality standards and customers'needs,and are greatly appreciated in variety of markets all over the world. Our main market is Asian,Africa,South.America etc.

3..Established in2000.Anping county secure-Nett is a professional manufacturer and exporter integrating the design,development and production of wire mesh machines for welded wire poultry chicken cage machine,Construction mesh welding machine ,Fence mesh welding machine,Reinforcing mesh welding machine and related accessories.

Pictures show:

office

cheap galvanized welded wire poultry chicken cage machinecheap galvanized welded wire poultry chicken cage machine

factory

cheap galvanized welded wire poultry chicken cage machine

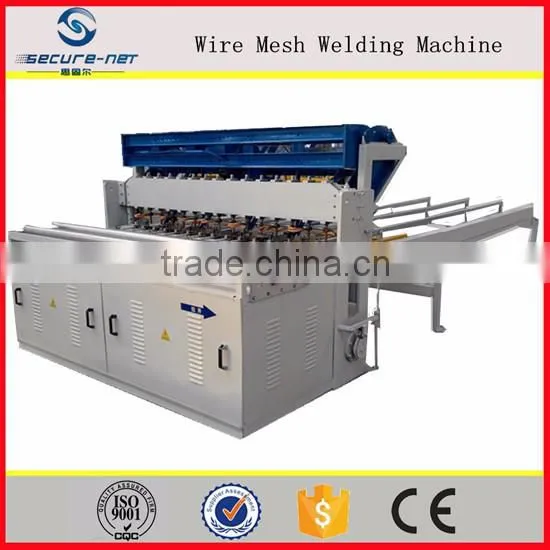

main machine

cheap galvanized welded wire poultry chicken cage machine

work shop

cheap galvanized welded wire poultry chicken cage machine

certificate

cheap galvanized welded wire poultry chicken cage machine

Welcome to visit our factory and office.
