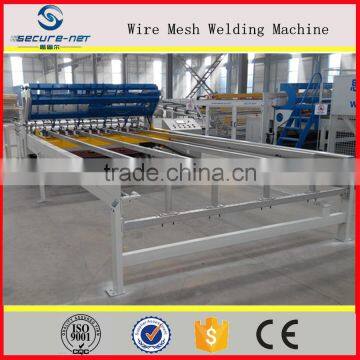

High Quality Steel Wire Chicken Wire Mesh Welding Machine

High Quality Steel Wire Chicken  Wire Mesh  Welding Machine

The main parameter

Wire diameter:2.0-3.0mm
Welding aperture:50*50-200*200mm
Width of mesh:1200mm(customized)
Number of electrodes:16(adjustable)
Welding speed:45times/min
Machine weight:2.5T
Rated voltage:AC380V 50HZ(customized)
Rated power:200KVA
Overall dimension:6*2*1.8m(customized)

Product Description:

1.This equipment adopts synchronous control technology,separate-phase welding and welding time is composed of digital programming of PLC system .There are two kinds of tablet PC input panel,One kind is touch panel ,another is Keyboard .The operation is more intelligent and rationalization.
2.The machine can press the panel tightly once , and weld by several times .On the same panel,this machine can weld 30 kinds of different size of meshs between weft and weft.That is the biggest advantages of this machine.
3.The machine adopts new type of high efficient welding transformer ,greatly expand the scope of welding diameters.(This wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).
4.The mesh panel pulling part and the hopper is controled by the 16N stepper motor,and the steeper is working through the stepper motor drives.
5.Electrodes, the lower seat and copper platoon is copper material,and the electrode block is chromium zirconium copper material.
6.Wear silk part wear silk by bell mouth, make artificial device more simple, convenient, equipped with dovetail positioning device, effectively reduces the error of the diagonal mesh.
7.There are six sets of transformer, each transformer has eight levels, to expand the scope of welding wire diameter.
8.Main motor is 4 kw, good quality and good after-sales.
9.Cross wire feeding way: drop from cross wire hopper automatically,position of drop wire is accurately.
10.Mesh panel pulling way:adopt the serve motor, pull the panel back and forth ,pneumatic lock the cross wire,ensure position is accurate.

Auxiliary equipment

Roll machine

Bending machine

Straightening cutting machine

Wire feeding plate

Application:

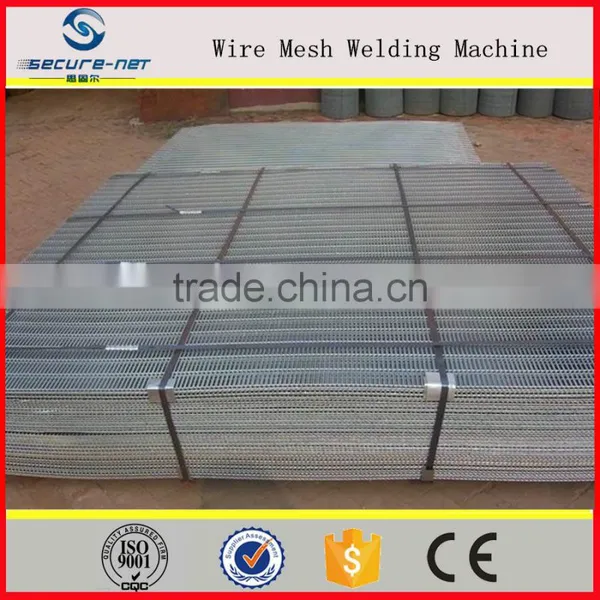

It can be used for producing many kinds of cage for chicken ,bare marter,fog and pet etc .

Host with plastic film packaging, numerical control cabinet packed in wooden cases.

Our Services
1 .Maintenance period:one year
2.If the buyers need, we can send our technical staff to the buyers’ place to
debug the machine and providing the training in 30 days after the machines
arrive at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will
assign the expertised staff to your company. And the fees,such as round-trip
tickets, accomodation etc, are all in your account.

              Hebei Secure-Net Fence Facility Co., Ltd.

1.Hebei Secure-Nett Fence Facility Co.,Ltd.founded in 2000,is located in Anping,famous as production base of wire mesh in China.

2.Now Secure-net has developed into an integrated entity with R&D,manufacturing and trading.

3.Main products of Secure-net are

CNC wire mesh welding machine

welded wire mesh machine

chain link fence mesh machine

expanded metal mesh machine

barbed wire machine

razor barbed wire machine

.......

      Welcome to visit our factory at any time
