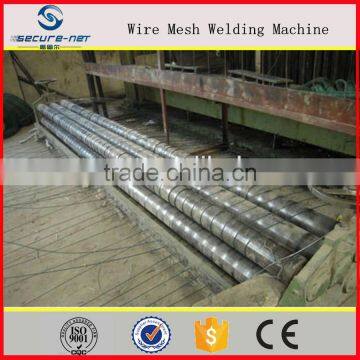

2016 Best price hexagonal
gabion wire mesh machine
| Specification(mm) | Max Net Breadth(mm) | Max Thread Diameter(mm) | Twisting Model | Main Shaft Ratary Speed | Motor Power(KW) | Theoretical Production Speed | |||
| Twisting | m/h | Diamention(LXWXH)mm | Weight(T) | ||||||
| (Mesh/min) | |||||||||
| 60X80 | 2300 | 2.8 | double | 25 | 11 | 25 | 165 | 5200X1400X2400 | 13 |
| 3300 | 2.8 | double | 25 | 15 | 25 | 165 | 6200X1400X2400 | 14 | |
| 4300 | 2.8 | double | 25 | 22 | 25 | 165 | 7200X1400X2400 | 15 | |
| 80X100 | 2300 | 3 | double | 25 | 11 | 25 | 195 | 5200X1400X2400 | 13 |
| 3300 | 3 | double | 25 | 15 | 25 | 195 | 6200X1400X2400 | 14 | |
| 4300 | 3 | double | 25 | 22 | 25 | 195 | 7200X1400X2400 | 15 | |
| 100X120 | 2300 | 3.2 | double | 25 | 11 | 25 | 225 | 5200X1400X2400 | 13 |
| 3300 | 3.2 | double | 25 | 15 | 25 | 255 | 6200X1400X2400 | 14 | |
| 4300 | 3.2 | double | 25 | 22 | 25 | 225 | 7200X1400X2400 | 15 | |
Our factory also can produce the special size according to the client's requirement
Product description of the gabion mesh machine:
Gabin Machine is also called heavy-duty hexagonal wire mesh machine.. It adopt PLC touch screen frequency control, which has the function of frequency control of motor speed according to different of wire diameter ,has buffer function when speed increase or decrese in very short time, can count output every year,can save sbout 30% energy.
Mesh boarding machine
Metal wire warping machine
Straightening cutting machine
Appliction of the gabion mesh machine
Host with plastic film packaging, numerical control cabinet packed in wooden cases
Hebei Secure-Net Fence Facility Co., Ltd
1.Hebei Secure-Nett Fence Facility Co.,Ltd.founded in 2000,is located in Anping,famous as production base of wire mesh in China.
2.Now Secure-net has developed into an integrated enity with R&D,manufacturing.
3.Main products of Secure-net has
CNC wire mesh welding machine
welded wire mesh machine
expanded metal mesh machine
chain link fence mesh machine
barbed wire machine
razor barbed wire machine
....
Contact:Gail
Tel:86-18031855078
Fax:86-031185245076
Whatsapp/Wechat:+18832128285
QQ:2746862612
