20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller

20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller thumbnail-1
20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller thumbnail-2

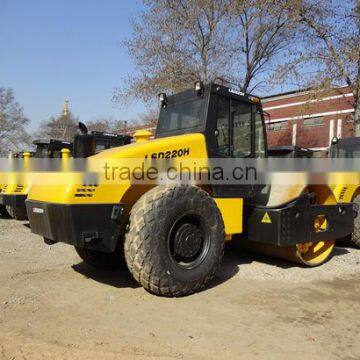

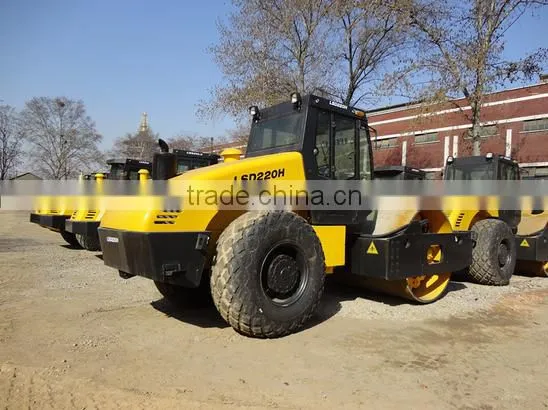

20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller photo-1
20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Single Drum Roller
Static Linear Pressure:
600N/cm
Contact Supplier Request Quote Chat Now
Nivo Machinery (Jingjiang) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Single Drum Roller
Static Linear Pressure 600N/cm
Travel Speed 11.2km/h
Grade Ability 45%
Place of Origin Jiangsu, China
Brand Name LUOYANG
Model Number LSD220H
Power(W) 160kW
Dimension(L*W*H) 6005*2360*2993mm
Weight 20000kg
Certification CE,ISO,OHSMS,EMS
After-sales Service Provided Overseas third-party support available



Product Description

  20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller

20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller



Hydraulic heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.





Main Features



1.Cummins turbocharged diesel engine with rich power surplus in good performance above and elevation of 4000 meters;

2.Hydrostatic wheel&drum travel drive operated by a single lever at two range infinitely variable speeds, hydraulic pump and motors made form international advanced companies.

3.Adjustable frequency and amplitude vibration device with imported vibrating pump and motor.

4.Imported planet gear reducer integrated with wet multi-dise brake with oil-cutoff braking for reliable safety.

5.Unique streamline shape appearance with circle arc windscreen and curve engine hood for excellence sight.







Technical Specifications

Type Unit LSD220H
 Operating mass  kg  20000
 Static linear load  N/cm  600
 Vibration amplitude  mm  2.0/1.0
 Vibration frequency  Hz  28/35
 Centrifugal force  kN   380/300
 Travel speed  km/h  11.2
 Gradeability  %  45
 Turning radius  mm  7000
 Drum width  mm  2130
 Drum diameter  mm  1600
 Wheelbase  mm  3148
 Ground clearance  mm  472
 Diesel engine model   Cummins6CTA8.3
 Diesel engine power  kW 160
 Overall dimensions  mm 6005*2360*2993

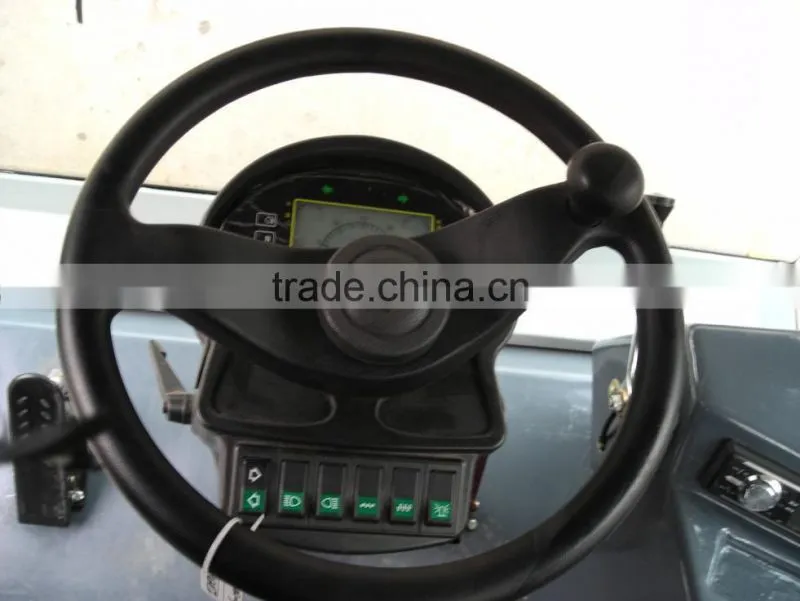

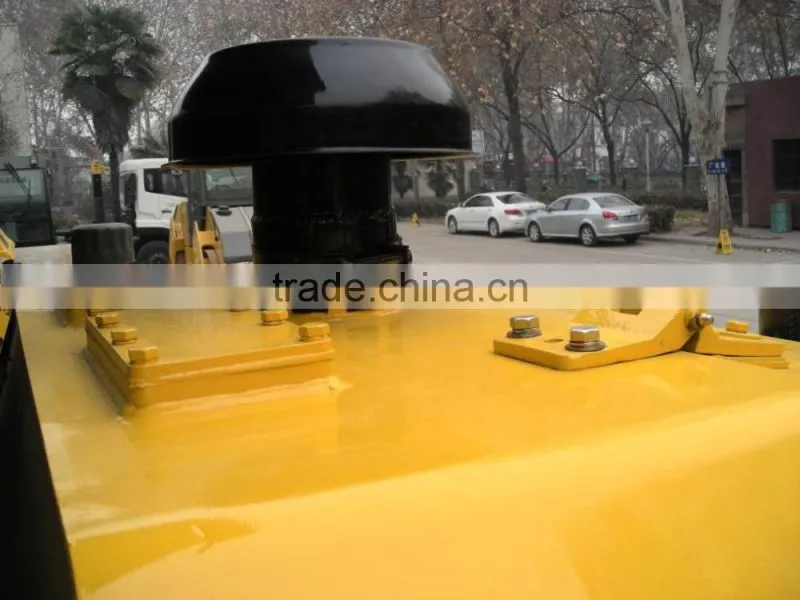

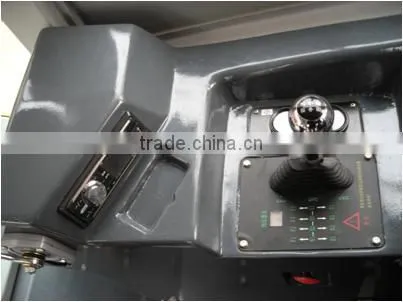

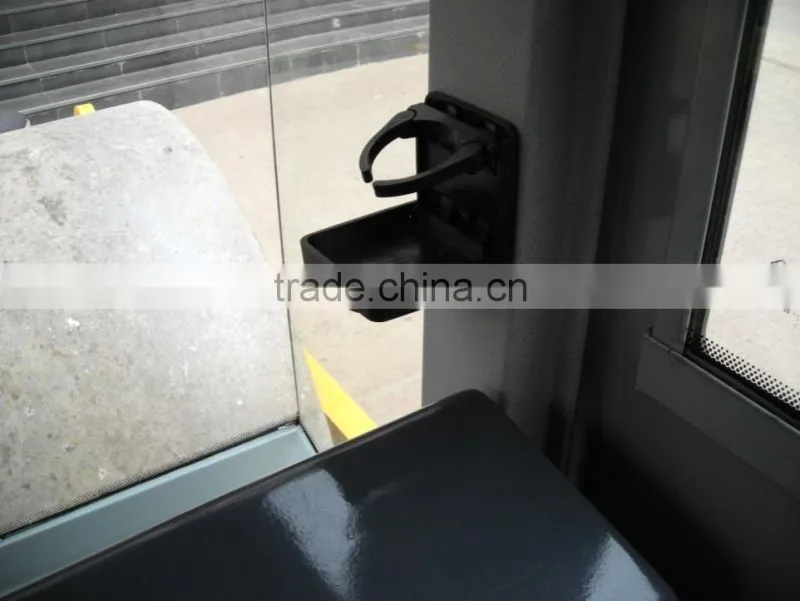

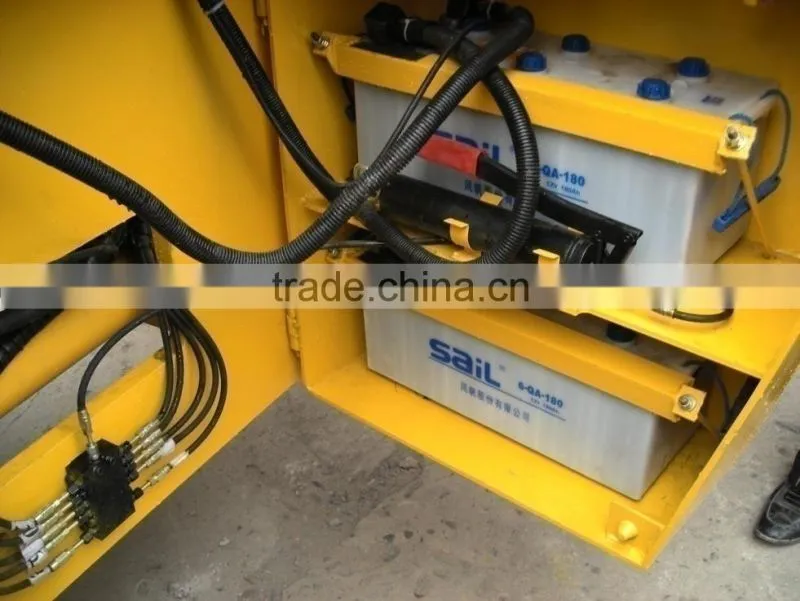

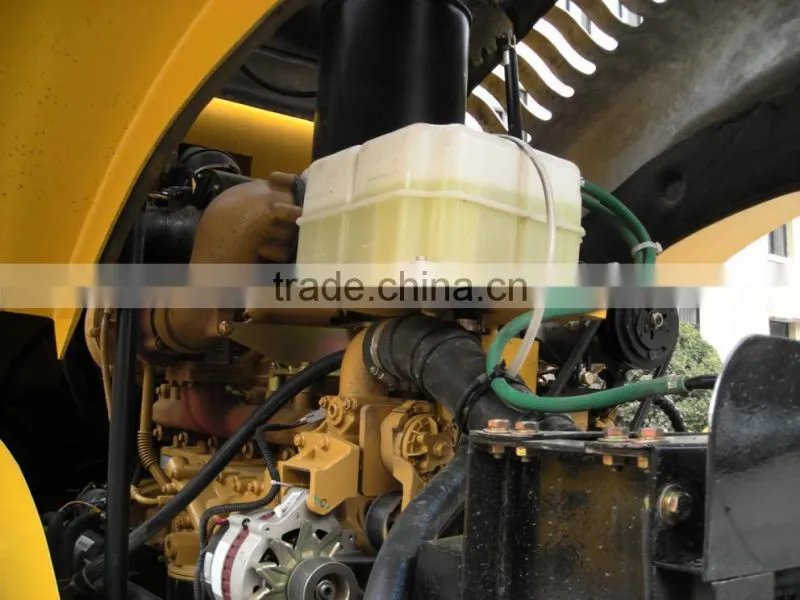

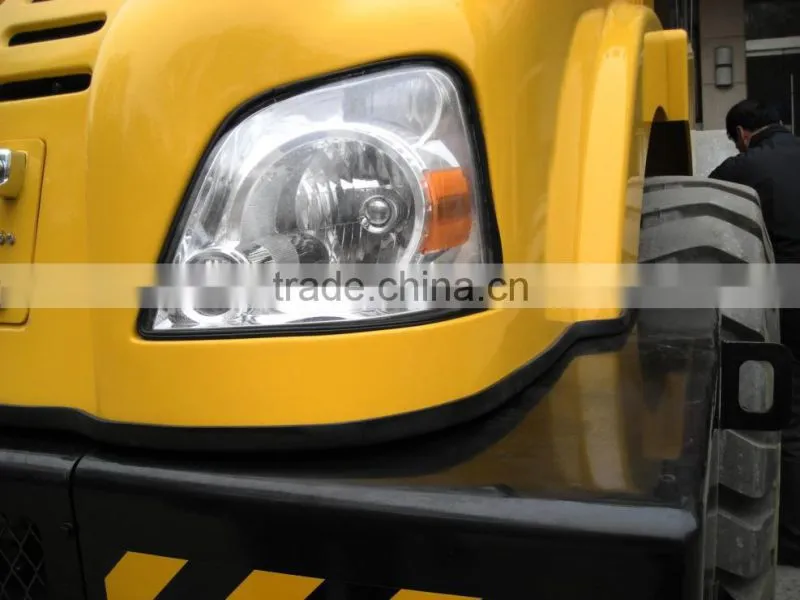

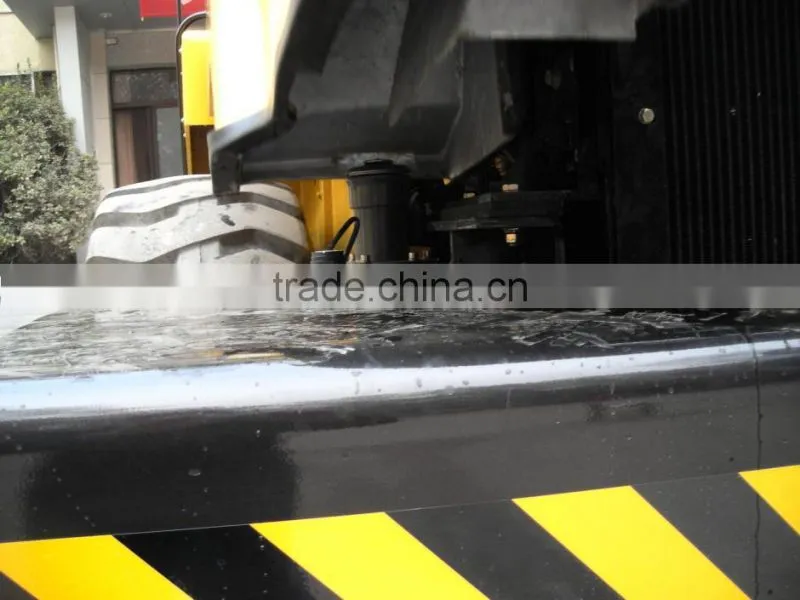

Detail photos

20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller 20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller

20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller 20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller

20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller 20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller

20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller 20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller

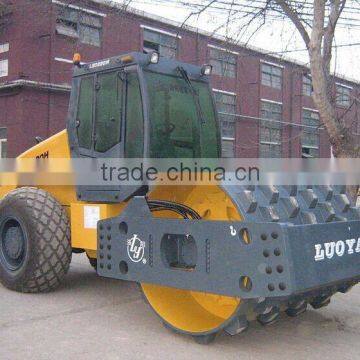

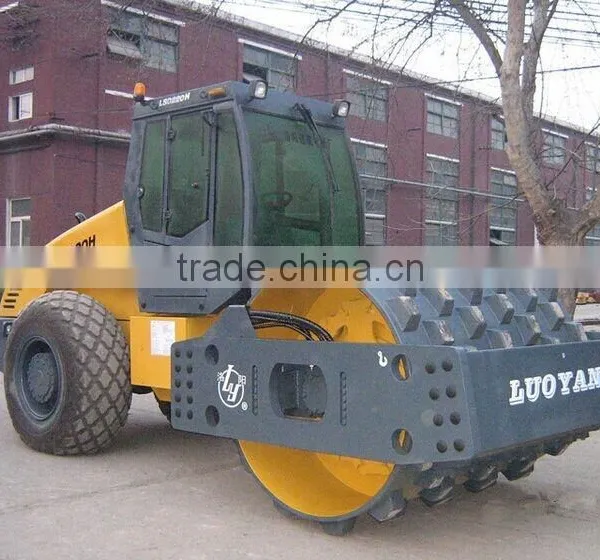

Optional part: Intergrated padfoot drum

20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller

Packaging & Shipping

 20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller

Certifications

20 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller
