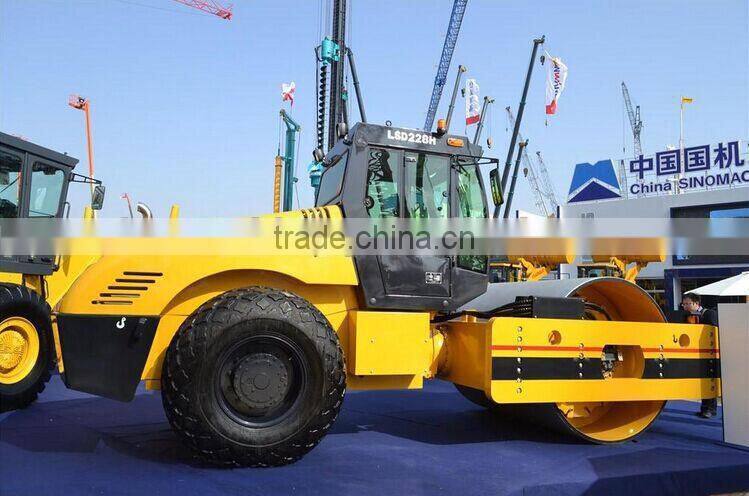

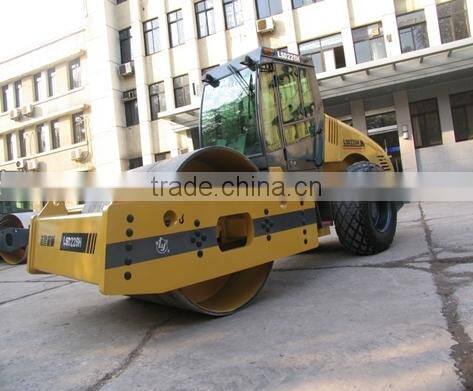

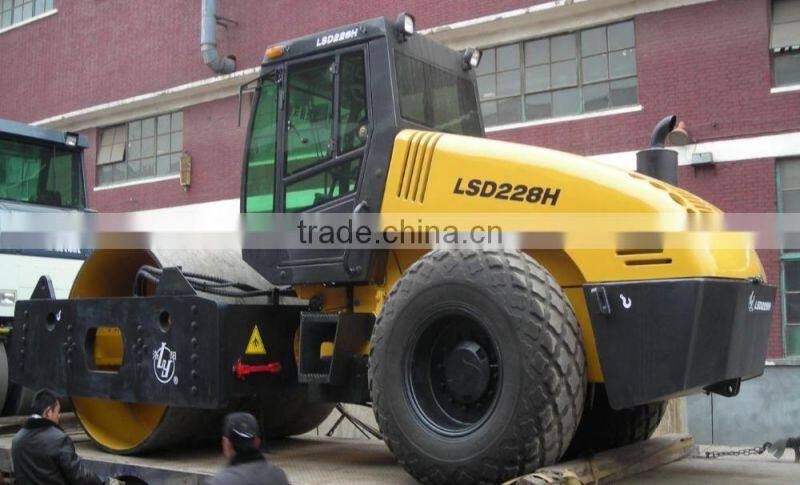

28 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Road Roller
Hydraulic heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.
Main Features
1.Cummins turbocharged diesel engine with rich power surplus in good performance above and elevation of 4000 meters;
2.Hydrostatic wheel&drum travel drive operated by a single lever at two range infinitely variable speeds, hydraulic pump and motors made form international advanced companies.
3.Adjustable frequency and amplitude vibration device with imported vibrating pump and motor.
4.Imported planet gear reducer integrated with wet multi-dise brake with oil-cutoff braking for reliable safety.
5.Unique streamline shape appearance with circle arc windscreen and curve engine hood for excellence sight.
Technical Specifications
| Type | Unit | LSD228H |
| Operating mass | kg | 28000 |
| Static linear load | N/cm | 830 |
| Vibration amplitude | mm | 2.0/1.0 |
| Vibration frequency | Hz | 28/35 |
| Centrifugal force | kN | 440/360 |
| Travel speed | km/h | 9 |
| Gradeability | % | 45 |
| Turning radius | mm | 7500 |
| Drum width | mm | 2130 |
| Drum diameter | mm | 1650 |
| Wheelbase | mm | 3500 |
| Ground clearance | mm | 470 |
| Diesel engine model | Cummins6CTA8.3 | |
| Diesel engine power | kW | 160 |
| Overall dimensions | mm | 6540*2392*3048mm |

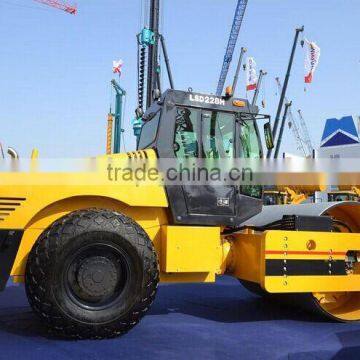

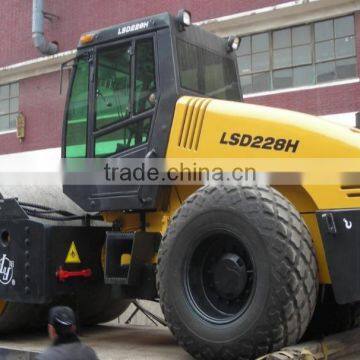

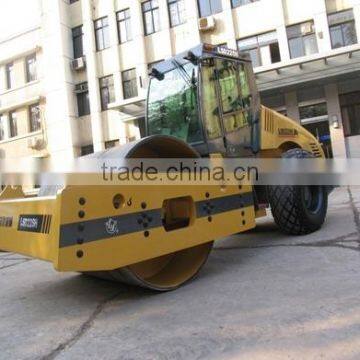

Detail photos
Optional part: Intergrated padfoot drum
