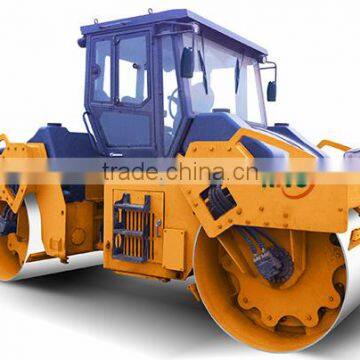

Hydraulic Double Drum Vibratory Roller LDD608H
Hydraulic double drum vibratory rollers are manufactured according to international advanced technology and by use of imported main components abroad, suitable for compaction of various stabilized soils, bituminous concrete and rolling cement concrete(RCC) on road surface construction, also for compaction of road base course, which are universal compaction equipments for high-class highway, airport, harbors, dams, municipal road and industrial ground.
Main Features
1.CUMMINS air-air after-cooled diesel engine meet GUO II emission standards.
2.All hydraulic travel drive, and dual frequency and amplitudes vibration.
3.Travel control at really infinitely variable speeds from 0 to max speed.
4.Crabwalk steering mechanism enhances compaction effect of road edge and curve.
5.Suction-air-type cooling system and air path design for working at high temperature area.
6.Side-turnover driver's cabin for convenient for engine maintenance.
7.Drum oscillation function as option.
TECHNICAL SPECIFICATIONS
Model: LDD608H
Operating mass: 8000kg
Static linear load: 238N/cm
Vibration amplitude: 0.67/0.34mm
Vibration frequency: 40/50Hz
Centrifugal force: 90×2/67×2kN
Travel speed: 13km/h
Gradeability: 40%
Turning radius: 6000mm
Drum width: 1680mm
Drum diameter: 1050mm
Wheelbase: 3300mm
Ground clearance: 325mm
Diesel engine model: Cummins4BTAA3.9
Diesel engine power: 82kW
Overall dimensions: 4350*1850*3000mm
