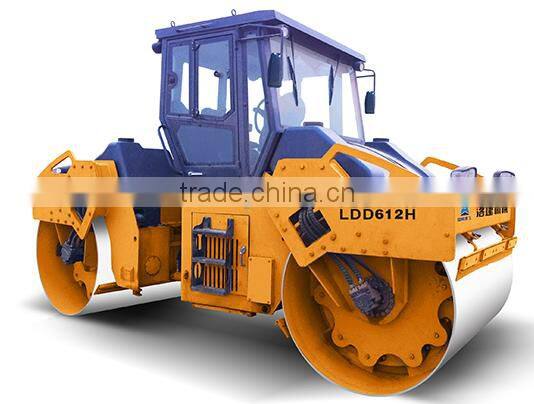

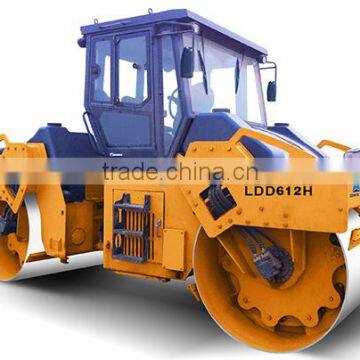

China Most Popular 12 Ton Hydraulic Double Drum Vibratory Roller

Hydraulic Double Drum Vibratory Roller LDD610H

Hydraulic double drum vibratory rollers are manufactured according to international advanced technology and by use of imported main components abroad, suitable for compaction of various stabilized soils, bituminous concrete and rolling cement concrete(RCC) on road surface construction, also for compaction of road base course, which are universal compaction equipments for high-class highway, airport, harbors, dams, municipal road and industrial ground.

Main Features

1.CUMMINS air-air after-cooled diesel engine meet GUO II emission standards.

2.All hydraulic travel drive, and dual frequency and amplitudes vibration.

3.Travel control at really infinitely variable speeds from 0 to max speed.

4.Crabwalk steering mechanism enhances compaction effect of road edge and curve.

5.Suction-air-type cooling system and air path design for working at high temperature area.

6.Side-turnover driver's cabin for convenient for engine maintenance.

7.Drum oscillation function as option.

TECHNICAL SPECIFICATIONS

Model: LDD612H

Operating mass: 12000kg

Static linear load: 282N/cm

Vibration amplitude: 0.74/0.35mm

Vibration frequency: 40/50Hz

Centrifugal force: 150×2/95×2kN

Travel speed: 11km/h

Gradeability: 40%

Turning radius: 7200mm

Drum width: 2130mm

Drum diameter: 1400mm

Wheelbase: 3590mm

Ground clearance: 480mm

Diesel engine model: Cummins6BTAA5.9

Diesel engine power: 110kW

Overall dimensions: 4960*2240*3000mm
