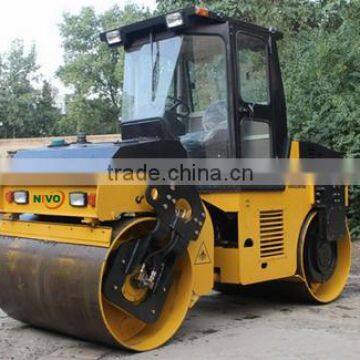

China Most Popular 6 Ton Double Drum Vibratory Roller LDS206VO

Double Drum Vibratory Roller LDS206VO

Double drum vibratory rollers are of mechanical travel drive, hydraulic vibration, suitable for compaction of various stabilized soils and bituminous concrete and etc. on road surface construction, which are ideal compaction equipments for highway, municipal road and industrial ground.

Main Features

1.Reliable and powerful ZN490Q diesel engine.

2.The rear-drum drive with side gear transmission at two-gear travel speed.

3.Hydrostatic vibration with large vibrating centrifugal force.

4.The front and rear frame articulated and hydraulic power steering.

TECHNICAL SPECIFICATIONS

Model: LDS206VO

Operating mass: 6000kg

Static linear load: 208/233N/cm

Vibration amplitude: 0.5mm

Vibration frequency: 50Hz

Centrifugal force: 60kN

Oscillation frequency:40Hz

Oscillation amplitude:0.6mm

Travel speed: 9km/h

Gradeability: 20%

Turning radius: 6000mm

Drum width: 1350mm

Drum diameter: 950mm

Wheelbase: 2500mm

Ground clearance: 280mm

Diesel engine model: ZN490Q

Diesel engine power: 33.5kW

Overall dimensions: 3490*1550*2580mm
