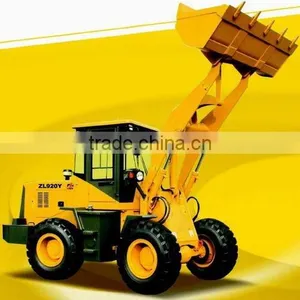

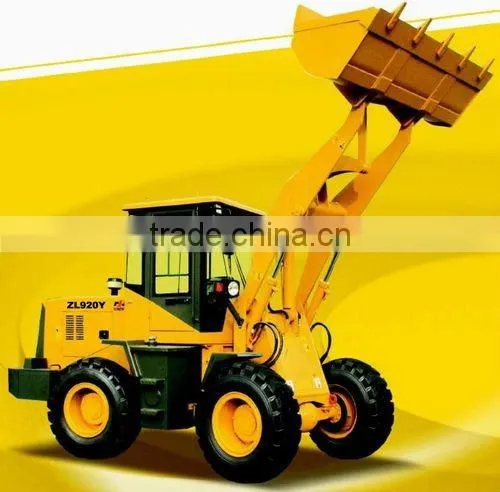

Help CenterZL920Y Wheel Loader
Related Products
-
ZL936 Wheel LoaderUS$ 29,000 - 30,000MOQ: 1 Unit -
Bucket Capacity 1.8m3,loading Capacity 3000kg, 3 Tons Wheel LoaderUS$ 28,000 - 29,000MOQ: 1 Unit
-
ZL939 Wheel LoaderUS$ 30,000 - 31,000MOQ: 1 Unit
-
Bucket Capacity 3.0m3 ,loading Capacity 5000kg, 5 Tons Wheel LoaderUS$ 44,000 - 46,000MOQ: 1 Unit
-
Bucket Capacity 3.0m3 ,loading Capacity 5000kg, 5 Tons Wheel LoaderUS$ 51,000 - 53,000MOQ: 1 Unit
Adopt Jiangsu Sida 4-cylinder diesel engine.
Fully hydraulic transmission technology, compact structure, high reliability.
Single pump, split flow working hydraulic system realizes the excellent fuel economy.
Load sensing fully hydraulic steering system makes operate easy.
Air over hydraulic brake system; Caliper disc brakes.
Working device with automatically levelling ability at high position.
Bucket articulated positions take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury dashboard.
New, luxury cabin.
Bucket capacity:0.9 m3
Min. turning radius(outside of rear wheels):4200mm
Rated load:1800 kg
steering angle:35º
Dumping height:2600 mm
Min. ground clearance:330mm
Dumping reach:910 mm
Wheel base:2150mm
Boom lifting time:4.5 S
Tread:1480mm
Total cycling time:9 S
Engine model:SD4102G
Max. speed:23km/h
Rated power:50kW/2400rpm
Max. breakout force:46 kN
Tyre :16/70-20
Max.drawing force:35 kN
Overall dimensions:5520*1950*2670mm
Max. Gradeability:28°
Operating weight:5000kg
Optional: Lovol 1004-4L06 Diesel engine.
