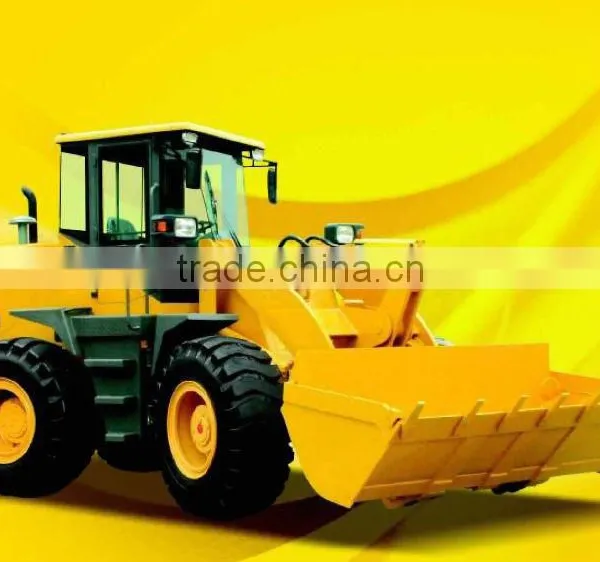

Help CenterZL936 Wheel Loader
Related Products
-
Bucket Capacity 1.8m3,loading Capacity 3000kg, 3 Tons Wheel LoaderUS$ 28,000 - 29,000MOQ: 1 Unit -
ZL939 Wheel LoaderUS$ 30,000 - 31,000MOQ: 1 Unit
-
Bucket Capacity 3.0m3 ,loading Capacity 5000kg, 5 Tons Wheel LoaderUS$ 44,000 - 46,000MOQ: 1 Unit
-
Bucket Capacity 3.0m3 ,loading Capacity 5000kg, 5 Tons Wheel LoaderUS$ 51,000 - 53,000MOQ: 1 Unit
-
2tons Wheel Loader ZL926 With 1.1m3 Bucket,loading Capacity 2000kgUS$ 17,000 - 18,000MOQ: 1 Unit
FEATURE:
Specially designed for the electricity-generating plants for handling the fuel materials(branches,etc). It adopts large, light bucket and lengthened lift arm, which help the loader realise the efficiency; It adopts the great power engine just according to the special working environment. The specially designed radiator can satisfy the demands for water and oil temperature, and the 2 grades filtration with it can make the system easy to clear
TECHNICAL SPECIFICATION:
Item |
Specifications |
Item |
Specifications |
Bucket capacity |
3.8m3 |
Engine model |
YC6B125-T10 |
Rated weight |
2400kg |
Rated power |
92kw |
Operating weight |
10000kg |
Tranmission system |
Hydraulic power-mechanical transmission |
Max.dump height |
3050mm |
Highest speed |
36km/h |
Max.dump reach |
1270mm |
Driving axle |
Double reduction axle |
Wheel base |
2600mm |
Tyre |
17.5-25 |
Tread |
1870mm |
Steering system |
Fully hydraulic steering |
Overall dimensions (l×w×h)mm |
7110×2860×3000 |
Service brake |
Air over oil disc brake on 4 wheels |
Send Inquiry to This Supplier
