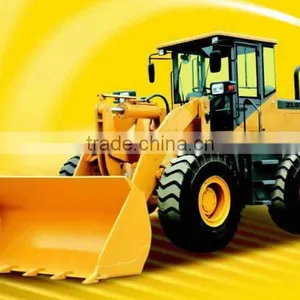

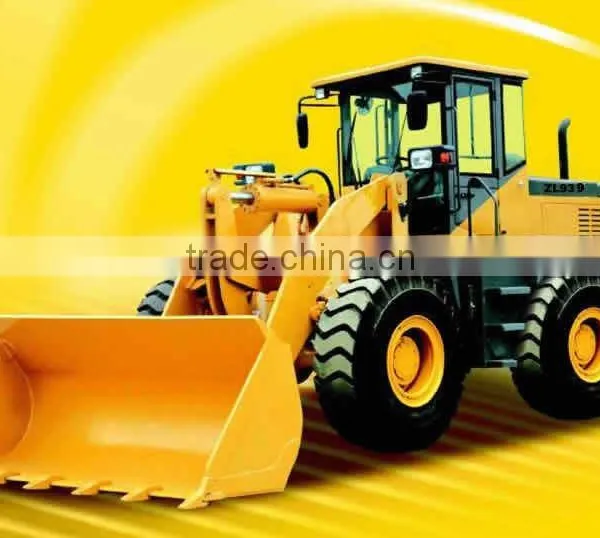

ZL939 Wheel Loader

 Weichai DEUTZ diesel engine, higher power and reliability

~ Hangzhou Advance Gear Group double-turbine hydraulic torque converter with reasonable structures and

 higher reliability make the loader obtaining more drawing force

~ Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labour

~ Single lever pilot control system, comfortable and flexible operation

~ Single pump, split flow working hydraulic system realizes the excellent fuel economy

~ Double sealed hydraulic pipeline joints with 24~ awl and O ring of international standard, avoiding oil

 leakage

~ Fully hydraulic load sensing steering system, flexible operation and higher reliability

~ Air over hydraulic disks on four wheel brakes

~ Large space articulated frames make operation and traveling stable

~ Working device with automatically levelling ability at high position

~ Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

~ Integral, luxury instrument board.

~ New, luxury cabin.

Technical Specifications

 Item                  Specification                            Item                                             Specification

 Bucket capacity        1.8 m3         Min. turning radius(outside of rear wheels)      5160mm

 Rated load             3000 kg         steering angle                                                 each direction 36o

 Dumping height         3050 mm        Min. ground clearance                                   380mm

 Dumping distance       1100 mm        Wheel base                                                 2700mm

 Boom lifting time        5.5 S           Tread                                                              1865mm

 Total cycling time       10 S           Engine model                                                    TD226B

 Max. speed            36 km/h         Rated power                                                    92kW@2300rpm

 Max. breakout force    120 kN         Tyre specifications                                        17.5-25

 Max.drawing force     96kN          Overall dimensions (L x W x H)                          6910 x 2510 x 3100mm

 Max. Gradeability       30~            Operating weight                                             10200kg
