Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > BG-F-001/016 Series Agricultural Gearbox
US$ 50 - 150
MOQ: 200 Sets
Key Specifications
Get Latest Price
Brand Name:
BOWIN
Model Number:
BG-F-001/016
Gearing Arrangement:
Bevel / Miter
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BG-F-020/026 Series Agricultural GearboxUS$ 100 - 180MOQ: 100 Sets -
BG-F-027/029 Series Agricultural GearboxUS$ 60 - 150MOQ: 100 Sets
-
BG-F-030/034 Series Agricultural GearboxUS$ 30 - 350MOQ: 100 Sets
-
BG-F-035/036 Series Agricultural Gearbox OEMUS$ 35 - 180MOQ: 100 Sets
-
Wing Type Agricultural Gearbox OEMEUR 100 - 150MOQ: 100 Sets
Brand Name
BOWIN
Model Number
BG-F-001/016
Gearing Arrangement
Bevel / Miter
Output Torque
55~95 NM
Rated Power
75 HP
Input Speed
540 RPM
Output Speed
450~1000 RPM

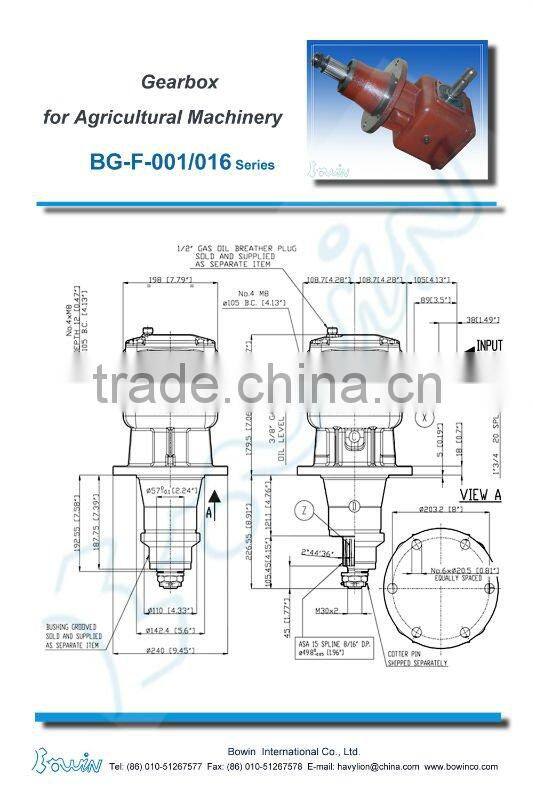

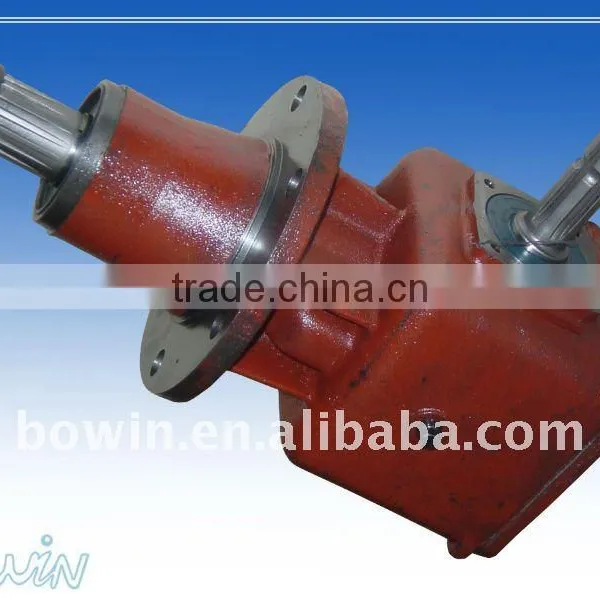

1. BG-F-001/016 Series Agricultural Gearbox
2. Ratio ranging at 1:1;1:1.22;1:1.35;1:1.44;1:1.83 and 1.22:1.
3. Input Power: 75HP at 540rpm
4. Output Torque: 55~95 NM
5. Weight: 39.3kg.
This BG-F-001/016 series agricultural gearbox prodcuts is applied on finishing movers, rotary cutters, rotary slashers and tillage machinery, etc.
It's designed for OEM market and any modifications with drawing or specification are possible.
The most prices and terms from Chinese suppliers.
This model is quite similar to COMER gearbox LF-227J.
