4WD tractor 40hp
- 500 Unit / Units per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Wheel Tractor | |
| By wheel | 4WD | Usage | Farm Tractor | |
| Drive Type | Other, Gear Drive, 4WD | Power(W) | 29.4KW | |
| Certificate | Other, EPA, OECD,etc | Brand Name | Jinma | |
| Model Number | JM404 | After-sales Service Provided | Overseas third-party support available |
iron crate or nude
Product Description
Specifications
4WD tractor 40hp:Best performance;
Good quality with low price ;
Convenient operation ;
;Low noise;Low emissio.
4WD tractor 40hp
Technical parameters for 4WD tractor 40hp (Jinma 404):
Specification | |||
Tractor parameters | Model | JM404 | |
Drive type | 4WD | ||
Overall dimensions( L*W*H ) | 3820*1652*2120 | ||
Wheel track(mm) | front | 1300 | |
rear | 1300-1600 | ||
Wheel bass(mm) | 1943 | ||
Ground clearance(mm) | 325 | ||
Rated traction force(N) | 10320 | ||
Construction mass(kg) | 2101 | ||
Min.turning radius(m) | 3.5 | ||
Engine | Model | 3cylinder | |
Type | 3cylinder , water cooled | ||
Rated power(km/hp) | 29.4/40 | ||
Rated speed(rpm) | 2200 | ||
Drive system | Clutch | Dual-stage | |
Gear box | 2*(3+1) | ||
Main drive | one pair of spiral bevel gearing | ||
Differential | Bevel gear | ||
Differential lock | Jaw lock | ||
Final transmission | External gearing, spur gear | ||
Traveling mechanism | Type | front | 7.5-16 |
rear | 11.2-28 | ||
Steering gear | Hydraulic steering | ||
Brake | Disc type | ||
Working device | P.T.O shaft | Rotating speed(rpm) | 540/1000 |
Spline size | 6 @ 35 Rectangular spline | ||

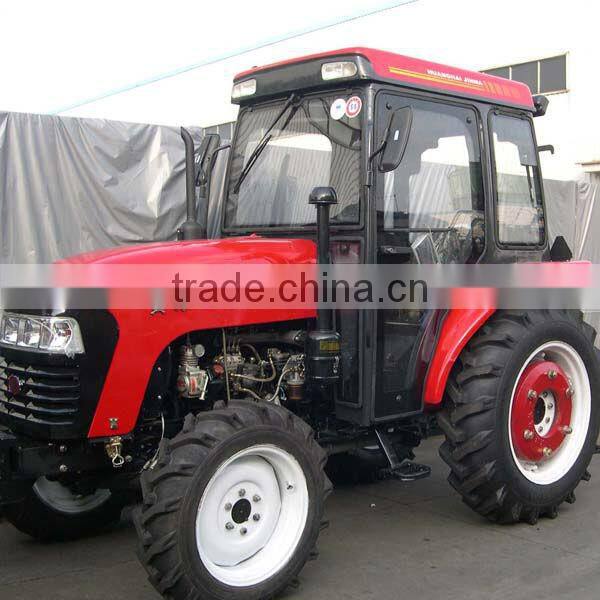

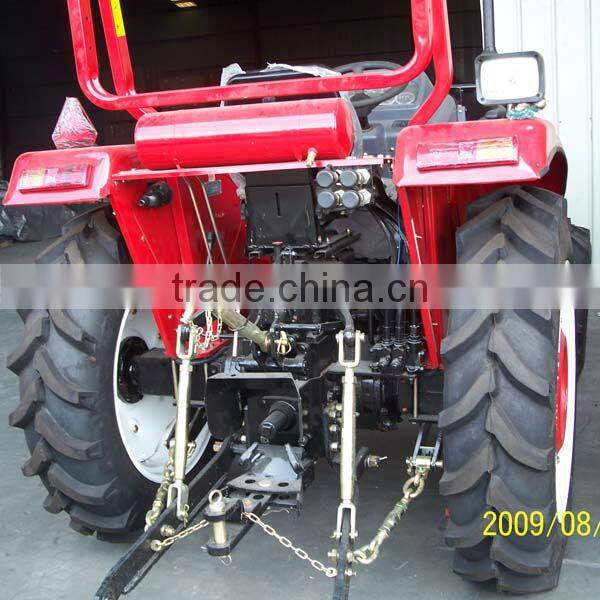

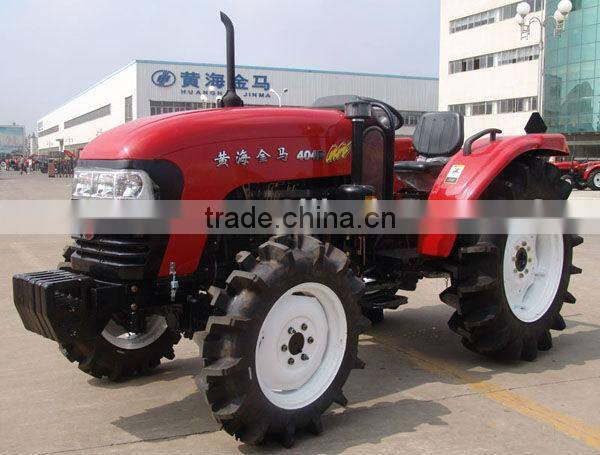

Photo of 4WD tractor 40hp 4WD 40 hp tractor :
If you want to know more information ,please send us Email.
