Specifications

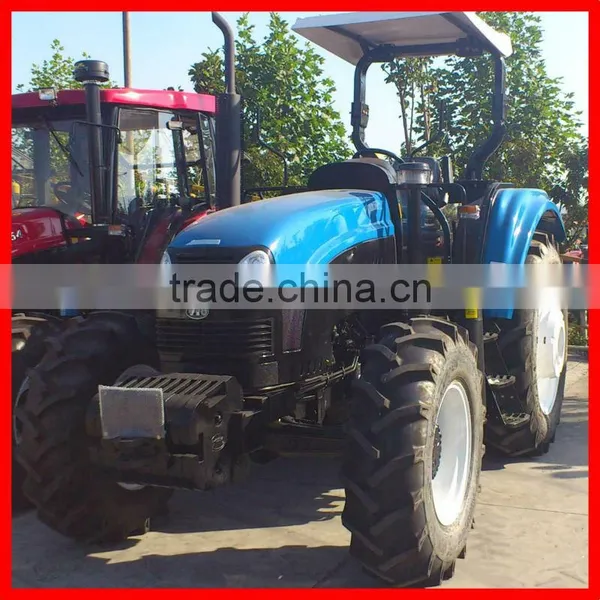

YTO Tractor for Sale Easily;high quality and reasonable price;
excellent performance;
good service;
convenient to control.
YTO tractor for sale is easily and has become more and more popular.
1. Employ original electronic control Perkins engine, high torque, powerful overload performance, low fuel consumption;
2. Absorb the design features of Italian mechanical T/M of the same power range, with rational layout structure;
3. Independent oil loop, hydraulic steering system control; safe and reliable wet or disc brakes for rear axle;
4. Brand new flat floor cab, elegant and comfortable, options: with cold or warm air or A/C;
5. Two independent PTO output speeds,540 and 1000 rpm, adaptable for all operation requirements;
6. High lifting force, with multiple tilling depth control;
7. Two groups of hydraulic output valves optioned with 3-group hydraulic valves.
YTO-X1254:
Engine | ||
Emission stage | Euro IIIA | |
Type model | Perkins 1104D-E44TA | |
Features | 4-cyl,in-line,water-cooled,turbo-charged,air-air intercooler | |
Rated power | 92/125 KW/PS | |
Displacement | 4400 cc | |
Rated speed | 2400 r/min | |
Transmission System | ||
Gears(Forward/Reverse) | 12F+4R | |
clutch | 12-inch,dry,double-action,independent control | |
Range of speed(F/R) | 2.34~30.55/5.04~14.27 km/h | |
Overall Dimension | ||
LXWXH | 5000X2330X2960 mm | |
Min operable mass | 4600kg | |
Min ground clearance | 465mm | |
Machine body | ||
Wheelbase | 2688.5mm | |
Front/rear tread | 1822~2153/1662~2262mm | |
Standard tire size | 14.9-26/18.4-38 inch | |
Steering radius | 7.0m | |
Gear pump output capacity | 50min | |
Lifting force(taken 610mm behind the lower suspension point) | 28kN | |
Tilling depth control method | Integrated draft and position control and float control | |
Rated PTO revolution speed | 540/1000 r/min | |
PTO power | 79.5/108kw/ps | |
Rated traction force | 26KN | |
Electrical system voltage | 12V | |
YTO-X804:
Model | YTO-X804 |
Tractor | |
Type | 4x4 |
Overall dimensions (LxWxH) (mm) | 4350x2170x2740 |
Wheelbase (mm) | 2314 |
Min. ground clearance (mm) | 430 |
Min. operating mass (with safety stand) (Kg) | 3675 |
Tyre spec. front / rear | 11.2-28 / 13.6-38 |
Wheel tread, front / rear | 1630-1960 / 1500-2100 |
Steering | Full hydraulic |
Brake | Oil immersed, disk type |
Diesel engine | |
Model | LR4B5-23 |
Type | Four cylinder, vertical, water cooled, four stroke, direct injection combustion |
Displacement (L) | 4.95 |
3 point hitch
Our products are reliable,if you have any questions, please don't hesitate to contact us.And if you play an larger order, we will give you a discount. We also hope to do more future business with you.
