Jinma 254 4 Wheel Drive Tractor

Jinma 254 4 Wheel Drive Tractor thumbnail-1
Jinma 254 4 Wheel Drive Tractor photo-1
US$ 3,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Hubei Fotma Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 18.4KW
Certificate Other, EPA, OECD,etc
Brand Name Jinma
Model Number Jinma 254
After-sales Service Provided Overseas service center available

Specifications

Jinma 254 4 wheel drive tractor
High quality with reasonable price
Low fuel consumption and noise
High efficiency
ISO,OECD

Jinma 254 4 wheel drive tractor :









Model
 JM-254
Drive Type
4WD
Overall Dimensions: L*W*H(mm):
3080x1440x1930
Wheel Track(mm)
Front
1100
Rear
1040-1200
Wheel Base(mm)
1645
Ground Clearance (mm)
295
Rated Traction Force(N)
5980
Construction Mass(kg)
1140
Min.Turning Radius(m)
2.80
Theoretical Speed(Without creeper)( km/h)
Forward
1.73,2.64,4.14,5.71,8.01,12.20,19.14,26.40
Reverse
2.28,11.02
Engine
Specifications
Model
  KM385
Type
3-Cylinder Vertical, water cooled,4 stroke cycle
Rated Power(kw/hp)
18.4/25
Rated Speed (rpm)
2350
Bore*Stroke(mm)
85*90
Total Displacement(L)
1.532
Drive
System
Clutch
Single-Stage
Gear Box
(4+1)*2
Main Drive
One Pair of Spiral Bevel Gearing
Differential
Bevel Gear
Differential Lock
Jaw Lock
Final Transmission
External gearing, Spur Gear
Traveling
Mechanism
Tyre
Front
6.00-16
Rear
9.5-24
Steering Gear
Mechanical Steering
Brake
Disc type
Working
Device
Hydraulic System
Lifting Capacity at 610mm Behind Lift Point (N)
4200
3-Point Suspension
Category: I
P.T.O
Shaft
Speed (rpm)
540/1000
Spline Size
6 @ 35 Rectangular Spline

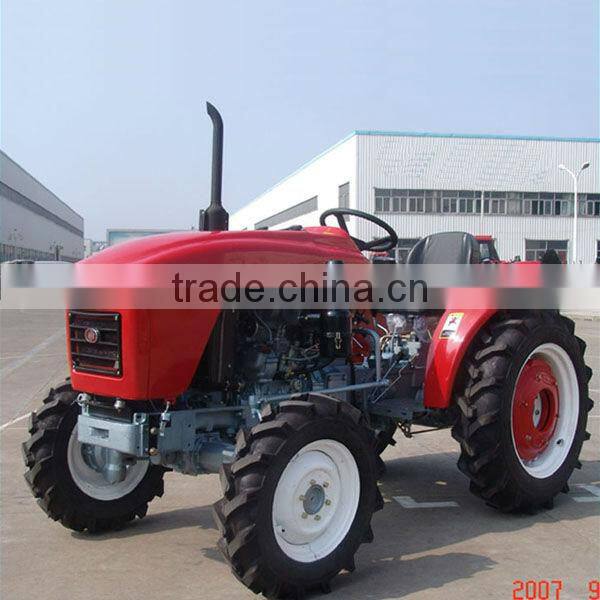

Photo of Jinma 254 :





Jinma 254 4 wheel drive tractor

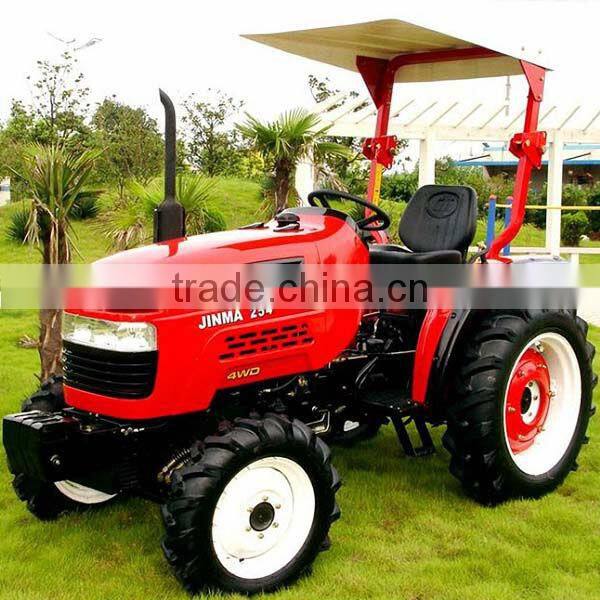

Jinma 254 with sunshade:





Jinma 254 4 wheel drive tractor
