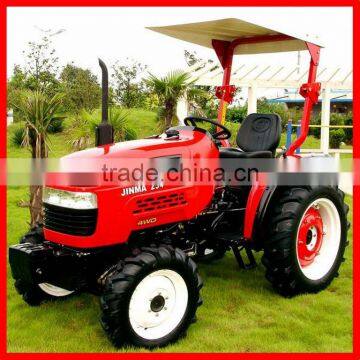

low price high quality Jinma 254 tractor
CCE
Best performance ;
Good quality with low price;
Convenient operation Low noise;
low price high quality Jinma 254 tractor
Technical parameters for low price high quality Jinma 254 tractor
Model
JM-254
Drive Type
4WD
Overall Dimensions L*W*H(mm):
3080x1440x1930
Wheel Track(mm)
Front
1100
Rear
1040-1200
Wheel Base(mm)
1645
Ground Clearance (mm)
295
Rated Traction Force(N)
5980
Construction Mass(kg)
1140
Min.Turning Radius(m)
2.80
Theoretical Speed(Without creeper)( km/h)
Forward
1.73,3.42,5.71,8.01,15.80,26.40
Reverse
1.37,6.35
Theoretical Speed (With creeper)( km/h)
Forward
0.32,0.64,1.06,1.49,2.95,4.92
Reverse
0.26,1.18
Engine Specifications
Model
Y385/KM385
Type
3-Cylinder Vertical,water cooled,4 stroke cycle
Rated Power(kw/hp)
18.4/25
Rated Speed (rpm)
2350
Bore*Stroke(mm)
85*90
Total Displacement(L)
1.532
Drive System
Clutch
Dual-Stage
Gear Box
(3+1)*2
Main Drive
One Pair of Spiral Bevel Gearing
Differential
Bevel Gear
Differential Lock
Jaw Lock
Final Transmission
External gearing, Spur Gear
Traveling Mechanism
Tyre
Front
6.00-16
Rear
9.5-24
Steering Gear
Full Hydraulic Steering
Brake
Disc type
Working Device
Hydraulic System
Lifting Capacity at 610mm Behind Lift Point (N)
4200
3-Point Suspension
Category:I
P.T.O Shaft
Speed (rpm)
540/1000
Spline Size
6-
If you want to know more information ,please send us Email.
Company Profile
Hubei Fotma Machinery Co., Ltd.
Hubei Fotma Machinery Co., Ltd. is a professional manufacturer and supplier of industrial products especially in the field of farm machinery and construction equipment.
Our annual turnover is over 20 million US dollars. We have highly qualified staff, including both senior employees who have more than 20 years' import/export experience and new employees who have just graduated from foreign trade colleges.
"Quality First, Price Best, Service Foremost" is our business principle. We can also process the goods according to your individual needs. Featuring high quality standards, rigorous management measures and advanced technology, we have built up a fine reputation among both domestic and overseas customers.
We have traded in over 100 countries in the world. We will be glad to work with worldwide new partners.
