Tractors Prices

Tractors Prices thumbnail-1
Tractors Prices photo-1
US$ 5,000 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Hubei Fotma Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 145hp
Certificate Other, OECD
Brand Name Foton
Model Number TG1454
Place of Origin China
After-sales Service Provided Overseas third-party support available

Specifications

Tractors Prices
1. Well matched power
2. More shift gears
3. Low fuel consumption
4. Reliable quality and competitive price

Tractors Prices



Product characteristics:
1) Fashionable and streamline outline design, full-sealed cab, panoramic glass door and window, and air conditioning, warm air system, and audio system are optional for installation.
2) Imported Germany LUK clutch and Italy CARRARO front drive axle are employed, with structure advanced, operation more flexible and reliability high.
3) Pressure lifter featuring strong lifting force is used to ensure the tool's depth into the earth, and the furrowing and rotary plowing effect is better; Bosch Rexroth electric controlled hydraulic system is optional for achieving the pressure adjustment, location adjustment, and pressure & location adjustment.
4) Equipped with domestic and overseas renowned engines like Lovol and Perkins, featuring advanced performance and strong power.


Specifications for Foton TG1454 Tractor

Parameter Items

Parameter Value

Model

TG1454

Maximum power of power takeoff shaft

91 kW

Dimension



Length (including rear suspension)

5350 mm

Width

3400 mm

Height (to the top of silencing device)

3030 mm

Wheelbase

2688 mm

Wheel distance



Front wheel

1900 mm

Rear wheel

2330(Double row) mm

Structure mass

6600 kg

Minimum operation mass

7460 kg

Minimum turning radius

7 m

Engine



Model

1006-6TWRT145(Lovol engines)

Type

Inline, water cooling, 4-stroke, direct injection type

Number of cylinder

6

Cylinder diameter*stroke

100*127(Lovol engines)/ 108*125(YUCHAI)mm

Displacement

6 L

Rated power

106.6 kW

Rated rotary speed

2400 r/min

Max. torque/rotary speed

>488/1500-1700 Nm/r/min

Transmission/Drive



Clutch model

Dry type, single, double action, normal engaged type

Gear

16F+16R

Differential lock

Four planetary bevel gear, close type

Running speed

Forward:3.29_32.77Reverse:2.59_27.09 Km/h

Hydraulic system



Type

Open center, split type

Hydraulic output valve

3-pair

System pressure

18 MPa

3-point suspension

Three-point rear suspension, category II and III

Max. lifting force at 610mm

behind suspending point

>28 kN

Steering type

Front wheel hydraulic steering

Power takeoff shaft -Rear



Type

rear independent type

Specification

φ35,21/φ35,6/φ38,8/φ45,20

Rotary speed

540/1000 r/min

Traction /towing



Traction device



Type

Swing link type

Distance to the ground

315 mm

Towing device

U type hanger

Type specification



Standard: front wheel /rear wheel

14.9-28/18.4-38(rear double row)

Filling capacity



Engine radiator

28 L

Fuel tank

320 L

Engine oil pan

22 L

Hydraulic and steering oil

5 L

Oil for transmission system

110 L

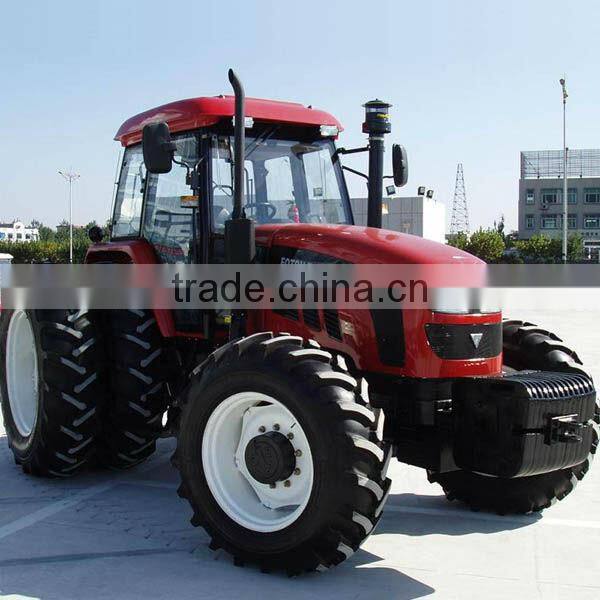

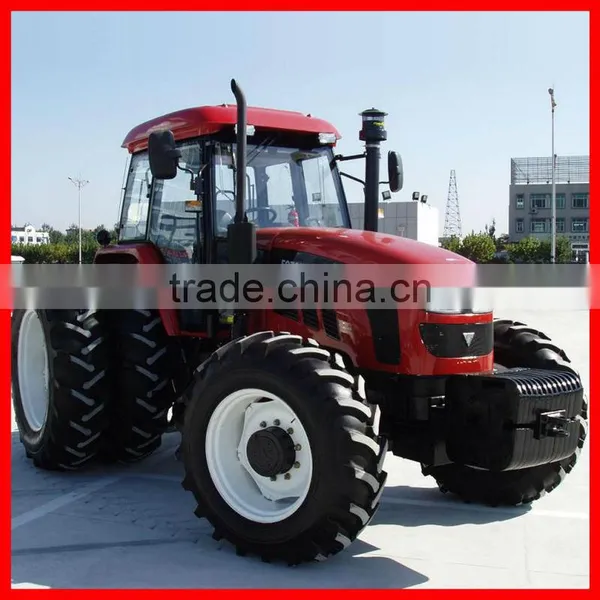

Photo for Foton TG1454 Tractor

Tractors Prices



Tractors Prices



If you want to know more about our products, please send E-mail to fotmasale01# or fotmasale01#. You will have to change # to @ when sending Email.
