Dongfeng 504 50hp Agricultural Tractor

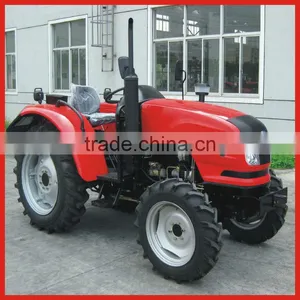

Dongfeng 504 50hp Agricultural Tractor thumbnail-1

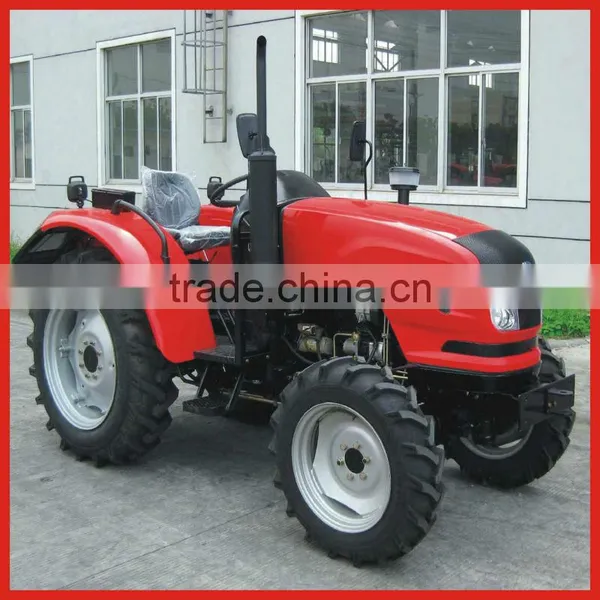

Dongfeng 504 50hp Agricultural Tractor photo-1
US$ 3,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Hubei Fotma Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Other, Gear Drive, 4WD
Power(W) 36.8kw
Certificate EPA
Brand Name Dongfeng
Model Number Dongfeng 504
After-sales Service Provided Overseas third-party support available

Specifications

Dongfeng 504 50hp agricultural tractor
High quality low price
Easy to operate and maintain
Low noise
Good after-sale service

Dongfeng 504 50hp agricultural tractor



The  Dongfeng 504 is equipped with wed disc brake exhibiting desirable braking performance and high reliability; Planetary gear final drive; double-action clutch; operable for glebe and paddy fields; engagement sleeve gear change; Combined draft-position control; big wheel tread and axle base; big kerb mass, good chassis stability; Optioned with safety ROPS.



Details of   Dongfeng 504 50hp agricultural tractor in chart





Tractor
Parameters

Model

DF-504

Drive Type

4WD

Overall Dimensions
L*W*H(mm)

3725*1615*2170

Wheel Track(mm)

Front

1300

Rear

1200-1620(1300)

Wheel Base(mm)

1908

Ground
Clearance(mm)

Under Front Axle

367

Under Rear Axle

469

Rated Traction
Force(N)

12500

Construction Mass(Kg)

1920

Min. Turning Radius(m)

4.0

Theoretical
Speed(no creeper)

Forward(km/h)

1.58,2.60,3.34,5.29,4214,6.83,8.78
13.90,10.87,17.92,23.04,36.18

Reverse(km/h)

4.21,6.5,8.92,14.12

Theoretical
Speed(with creeper)

Forward(km/h)

N/W

Reverse(km/h)

N/W

Engine
Specifications

Model

4L68/JD4100

Type

4-cylinder,Upright inline cylinder
radiator cooling,4-storke cycle, direct-injection

Rated Power(Kw/hp)

36.8/50.0

Rated Fuel Consumption(g/kw/h)

<242

Rated Speed(rpm)

2400

Bore*Stroke(mm)

95*100,100*105

Total Displacement(L)

2.86/3.3

Drive
System

Clutch

Dual-function, dry constant meshing

Gear Box

4*(3+1),sleeve gear shift

Main Drive

One Pair of Spiral Bevel gears

Differential

Bevel Gear

Differential Lock

sliding pin, foot operated

Final Transmissions

planetary reduction gear

Travelling
Mechanism

Tyre

front

7.5-16,8.3-20

rear

12.4-28

Steering Gear

Hydraulic steering

Brake

Wet disc(Multiple)

Working
Device

Hydraulic
System

Lifting Capacity at
610 mm Behind Lift
Point(Kg)

900

3-point Suspension

Category: II

P.T.O. Shaft

Rotating
Speed(rpm)

540/1000

Spline size

6-φ35 Rectangular spline







 Related pictures of  Dongfeng 504 50hp agricultural tractor



Dongfeng 504 50hp agricultural tractor

Dongfeng 504 50hp agricultural tractorDongfeng 504 50hp agricultural tractor





If you want to know more information, please send e-mail to us.
