Contact Platform Support
Help Center
US$ 3,000 - 150,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Drive Type
Other, Gear Drive, 4WD
Power(W)
22.1KW
Certificate
Other, EPA, OECD,etc
Brand Name
Jinma
Model Number
JM304
After-sales Service Provided
Overseas third-party support available
Specifications
best price 30hp compact tractorBest performance
Good quality with low price
Convenient operation
;Low noise;Low emissio
best price 30hp compact tractor
Technical parameters for best price 30hp compact tractor (Jinma 304):
Specification | |||
Tractor parameters | Model | JM304 | |
Drive type | 4WD | ||
Overall dimensions( L*W*H ) | 3230*1435*1985 | ||
Wheel track(mm) | front | 1200 | |
rear | 1150-1450 | ||
Wheel bass(mm) | 1833.5 | ||
Ground clearance(mm) | 292 | ||
Rated traction force(N) | 6400 | ||
Construction mass(kg) | 1780 | ||
Min.turning radius(m) | 4.2 | ||
Engine | Model | 3cylinder | |
Type | 3cylinder engine, water cooled | ||
Rated power(km/hp) | 22.1/30 | ||
Rated speed(rpm) | 2200 | ||
Drive system | Clutch | Dual-stage | |
Gear box | (4+1)*2 | ||
Main drive | one pair of spiral bevel gearing | ||
Differential | Bevel gear | ||
Differential lock | Jaw lock | ||
Final transmission | Spur gear, external gearing | ||
Traveling mechanism | Type | front | 5.00-15 |
rear | 11.2-24 | ||
Steering gear | Hydraulic(power) steering | ||
Brake | Disc type | ||
Working device | Hydraulic system | Lifting capacity at 610mm(N) | 4900 |
3-point suspension | Category:1 | ||
P.T.O shaft | Rotating speed(rpm) | 540/720 or 540/1000 | |
Spline size | 6 @ 35 Rectangular: spline | ||

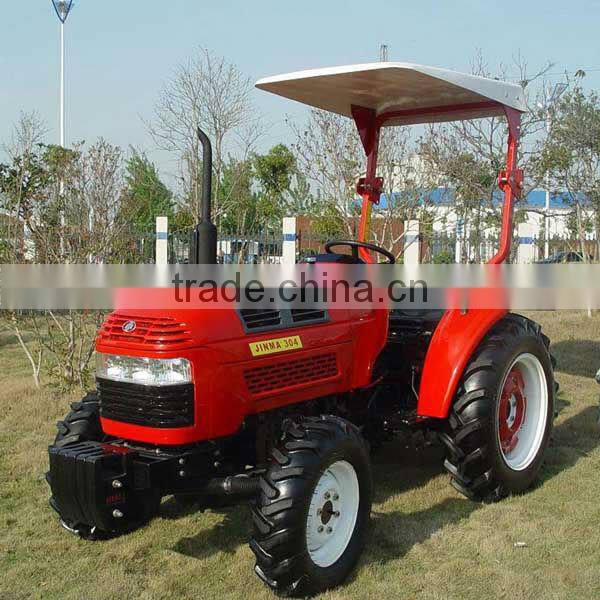

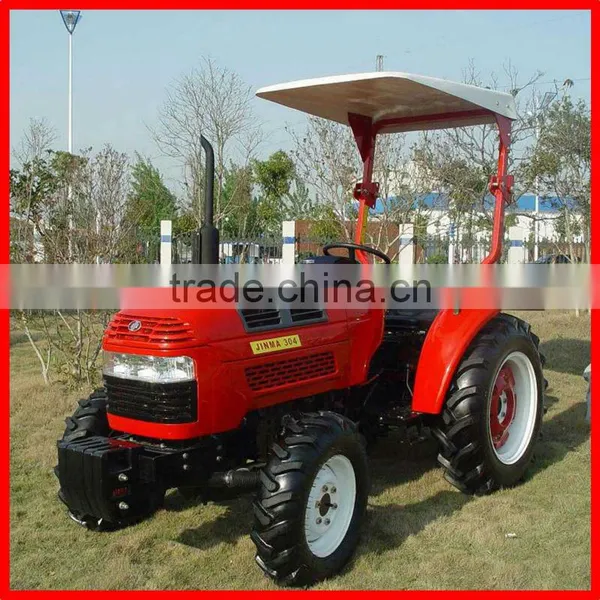

Photo of best price 30hp compact tractor :
If you want to know more information ,please send us Email.
