Home > Transportation > Tractor & Parts > Tractor > 4WD 40 hp Tractor

4WD 40 hp Tractor

Hubei Fotma Machinery Co., Ltd. Gold Verified Supplier
5Yrs
4WD 40 hp Tractor thumbnail-1
4WD 40 hp Tractor photo-1
US$ 3,000 - 150,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Other, Gear Drive, 4WD
Power(W) 29.4KW
Certificate Other, EPA, OECD,etc
Brand Name Jinma
Model Number JM404
After-sales Service Provided Overseas third-party support available

Specifications

4WD 40 hp tractor:
Best performance;
Good quality with low price ;
Convenient operation ;
;Low noise;Low emissio.

  4WD 40 hp tractor



 Technical parameters for 4WD 40 hp tractor (Jinma 404):





Specification
Tractor parameters
Model
JM404
Drive type
4WD
Overall dimensions( L*W*H )

3820*1652*2120
Wheel track(mm)
  front
1300
  rear
1300-1600
Wheel bass(mm)
1943
Ground clearance(mm)
325
Rated traction force(N)
10320
Construction mass(kg)
2101
Min.turning radius(m)
3.5
Engine
Model
3cylinder
Type
3cylinder ,                     water cooled
Rated power(km/hp)
29.4/40
Rated speed(rpm)
2200
Drive system
Clutch
Dual-stage
Gear box
2*(3+1)
Main drive
one pair of spiral bevel gearing
Differential
Bevel gear
Differential lock
Jaw lock
Final transmission
 External gearing, spur gear
Traveling mechanism
Type
   front
7.5-16
   rear
11.2-28
Steering gear
Hydraulic steering
Brake
Disc type
Working device
P.T.O  shaft
Rotating speed(rpm)
540/1000
Spline size
6 @ 35 Rectangular spline

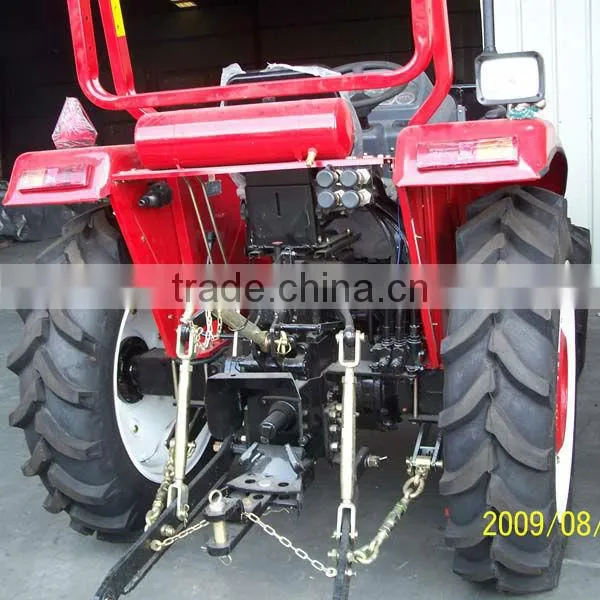

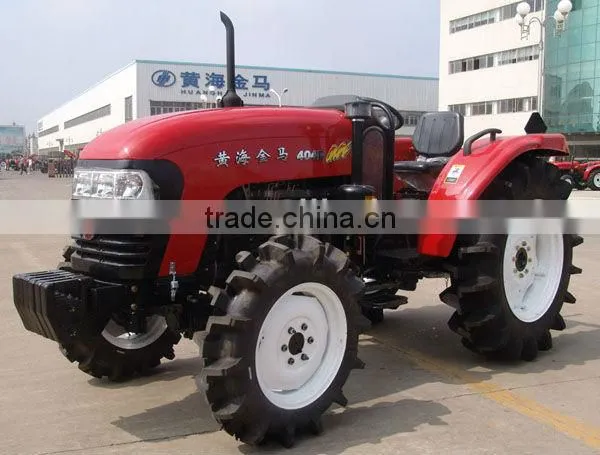

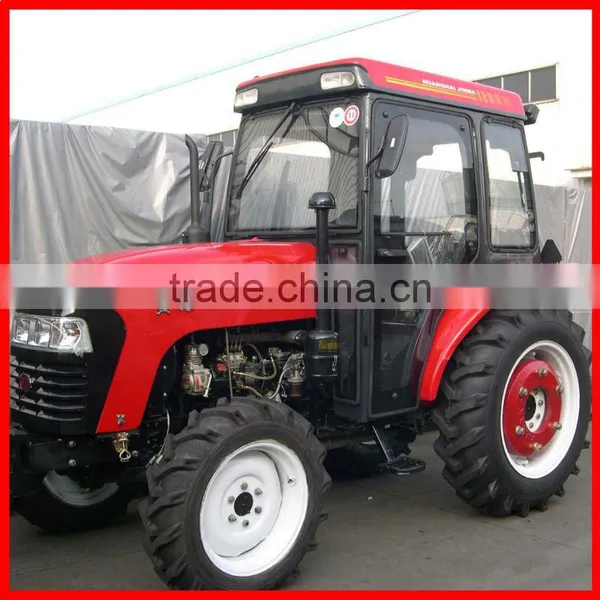

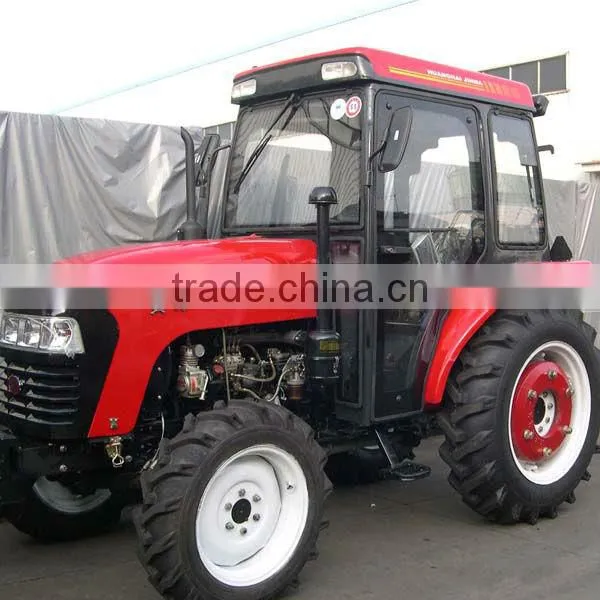

Photo of   4WD 40 hp tractor :

4WD 40 hp tractor4WD 40 hp tractor4WD 40 hp tractor





If you want to know more information ,please send us Email.
