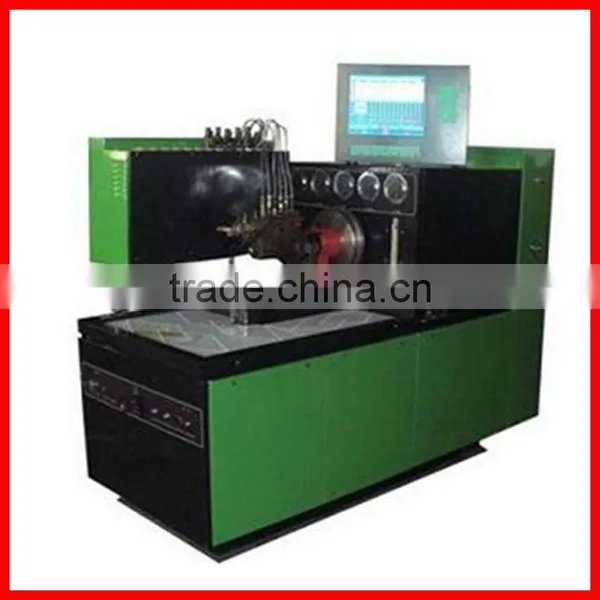

12PSDW-L Fuel Pump Test Bench
12PSDW-L Test Bench, 12 Cylinders, 17''LCD Touch Screen, Controlled And Measured By Computer
In Real Time.
Power: 7.5kw, 11kw, 15kw, 18.5kw, 22kw Etc.
12PSDW-L Color 17'' LCD Touch Screen Display Diesel Fuel Injection Test Bench Is Our Newly Research Hi-Technology It Controls By Industrial Computer. It Included Two Kinds Of Operation Systems: Color Liquid
Crystal Display Screen (LCD Monitor) And Two Groups Of Four Digit Nixie Tube Display (Digital Display ).
Main Function
1. Measurement Of Each Cylinder Delivery At Any Speed.
2. Test Point And Interval Angle Of Oil Supply Of Injection Pump.
3. Checking And Adjust The Mechanical Governor.
4. Checking And Adjusting The Distributor Pump.
5. Experiment And Adjusting Of Behavior Of Supercharging And Compensatory Device.
6. Measurement Of Oil Return Of Distributing Pump
7. Testing Of The Electromagnetic Valve Of Distributor Pump.(12V/24V)
8. Measurement Of The Internal Pressure Of Distributor Pump.
9. Checking Of The Advance Angle Of Advance Device.(On Request)
10. Checking The Sealing Of Injection Pump Body
11. Install Tube Of Auto-Sucking Oil Supply Can Check On Oil Supply Pump(Including
12. Checking The Travel Of Stroke (On Request)
13. 17'' LCD Touch Screen, Two Operating Systems
Technical Parameters:
1. Adjustable Rotation Speed Range: 0~4000 RPM
2. Test Cylinders: 12.
3. Rotation Speed Presetting: 10 Kinds.
4. DC. Supply: 12/24V
5. Feeding Pump Motor: 1.1kw
6. Series Of Graduate Glass: 45cc, 150cc. The 260cc Is Optional
7. Volume Of Oil Tank: 60L
8. Main Shafts Center Height: 125mm
9. Flywheel Inertia's Moment: 0.8kg.M2,
10. Stoke Counting: 50-9999
11. Control Temperature Of Fuel Oil (°C): 40+2
12. Feed Oil Pressure: Low Pressure 0-0.4Mpa, High-Pressure 0-4Mpa.
Internal Pressure: 0-0.16Mpa, 0-1.6Mpa.
13. Rotation Direction Of Main Shafts: Clockwise Or Anticlockwise
14. Packing Dimension: 5M3 CBM
15. Packing Weight: 900kg
16. Output Power: 5.5kw, 7.5kw, 11kw And 15 Kw Or On Request
17. 3-Phase Power Supply: 380v/50hz Or On Request.
18. Color Available: Green, Blue, Red, Yellow Or On Customers' Request.
