RED4 Tester1. Adjust All Kinds of RED4 Eletronic Speed Device in-line Pump
2. High Quality
3. Good Service
4.Short Delivery

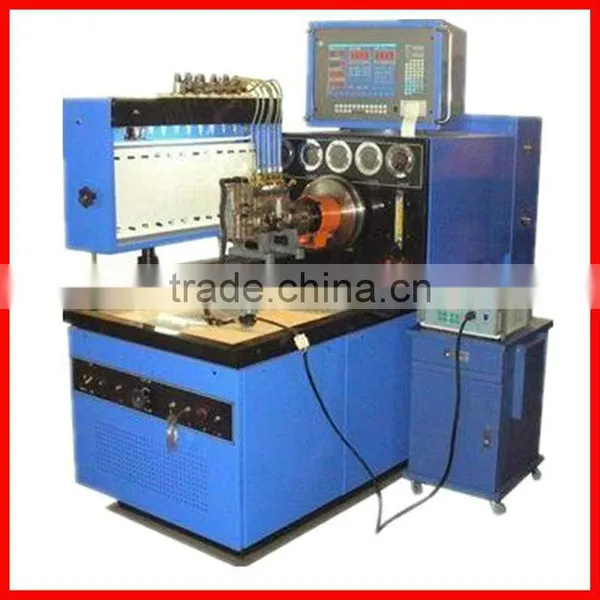

RED4 Tester
RED4 EDC Controller For ZEXEL In-Line Pump
This Product Is Able To Adjust All Kinds Of RED4 Eletronic Speed Device In-Line Pump, Which Is Made By Japan
Zexel Company. The Function And Charateristic Of This Controller As Well As The Testing
Data Are Completely Same As The Original One.
This Product Adopts The Wide Output Power Switch, High-Speed AMP7 Main Control Chips, Integrated Circuits. It Can
Finish All The RED4 Adjusting Functions.
This Highly Integrated Product, With Reliable Performance, Is The Ideal RED4 Electronic Speed Governor.
A.Technical Data
1. Eletronic Power: 220V 50HZ
2. Output Power: <200 W
3. Data Display: Light Four Digital Nixietube
4. Control Range: 5%-95%
5. Precision : +0.1%
6. 4 Pre-Set : 5%, 16.25%, 72.5%, 95%
B. Button Instructions:
1. "Select" Button: When The Corresponding Indicator Light Turns Off, Press "↑" "↓" Button To Adjust PWM Value
"5%-95%"; While The Corresponding Indicator Light Turn On, Press "↑" "↓" Button To Choose 4 Kinds Of Pre-Set: 5%,
16.25%, 72.5%, 95%.
2. " RED4 POWER": The Oil Ajusting Speed Device Switch, When It Light Effective.
3. " Limp Home" Fixed Speed Switch, While The Lamp Light, PWM Value Is "95%".
4. " Pull Down" Switch, When The Lamp Light, PWM Value Is "5%".
5. " Menu" " Enter" Menu Operating: It Can Change The Controller And Run The Programm.
Before This Product Leaves Factory, All The Data Has Been Preset Well, So You Needn't Have To Change It By Any
Way, Otherwise, It May Lead To Abnormal Usage.
C. Usage Instructions:
Connect The Oil Pump Adjusting Speed Device Through The Cables Along With Test EDC Itself,
Open The Power Switch, Then Open " RED4 Power", The Corresponding Indicator Lamp Will Be Light,
Display Will Show " 00.00", It Can Adjust The Throttle Up And Down Through The Arrow "↑" "↓".
Close The " RED4 POWER' Switch, Oil Pump Power Off.
Press " Select" Button, Indicator Lamp Light, And Press Arrow "↑" "↓" To Choose Pre-Set Rank, And Press " Select"
Button Again, Indicator Lamp Power Off, Then Reback To The Original Situation.
Under The Situation " Select" Light Power Off, Press " Pull Down", Output Value Is "95%", Press " Limp Home",
Controller Output Value Will Be " 5%".A
