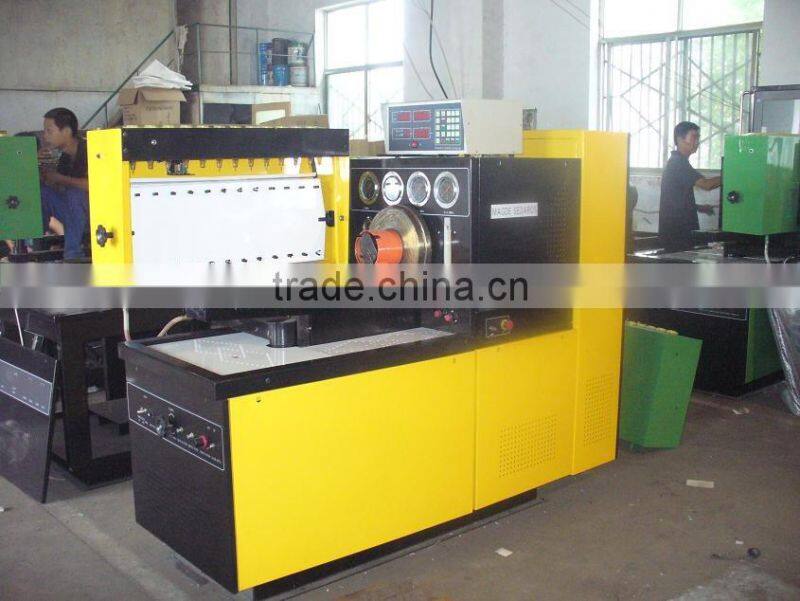

Fuel Injection Pump Test Bench

Specifications

Fuel Injection Pump Test Bench
Power: 7.5kw, 11kw ,15kw, 18.5kw etc.
Cylinder no.: 12
Voltage: 380/220V
Phase: 3

Fuel Injection Pump Test Bench

Diesel Fuel Injection Pump Test Bench, Test Stand Color CRT Display Ten Kinds of Rotation Speeds Presetting

Rotation Speed, Count,Temperature, Air Pressure and Advance Angle are Displayed by Computer Screen

Diesel Fuel Injection Pump Test Bench Advance Type.

Features:
1. Changing Frequency changing Rotation Speed;
2. Small Fall of Rotation Speed and High Output Torque;
3. High Measurement Precision, High Efficiency, Energy Saving;
4. Over Voltage, Overload and Short Circuit Protection;
5. Ten Kinds of Rotation Speeds Presetting;
6. Constant Temperature Controlled;
7. Rotation Speed, Count, Temperature, Air Pressure and Advance Angle are Displayed by Computer Screen.
8.  Built-in Air Resource
9.  Can be Operated From Both Sides

Functions:
1. Measurement of Each Cylinder's Delivery at Various Rotation Speeds
2. Checking each Cylinder's Injection Starting Position and Delivery Interval Angle
3. Checking and Adjust the Mechanical Speed Governor.
4. Checking and Adjusting the Distributor Pump.
5. Checking and Adjusting Behavior of Supercharging and Compensatory Device.
6. Measurement of the Reflux Delivery of Distributor Pumps
7. Checking the Electromagnetic Valve of Distributor Pumps. (12V/24V)
8. Measurement of the Distributor Pump's Body Internal Pressure.
9. Measurement of the Advance Angle.
10. Checking the Sealing of Fuel Injection Pump Body
11. Install Tube of Auto-Sucking Oil Supply can Check Oil Supply Pump. (Including VE Pump.)
12. Measurement of Rack Travel (Option)
13. Machine Oil Lubrication System (Option)
14. Cast Iron Base (Option)
15. Forced Cooler System (Option)

Technical parameters:
1. Adjustable Rotation Speed Range: 0~4000 RPM
2. Test Cylinders: 12.
3. Rotation Speed Presetting: 10 Kinds.
4. DC. Supply: 12/24V
5. Feeding Pump Motor: 1.1kw
6. Series of Graduate Glass: 45cc, 150cc. The 260cc is Optional
7. Volume of Oil Tank: 60L
8. Main Shafts Center Height: 125mm
9. Flywheel Inertia's Moment: 0.8kg.M2,
10. Stoke Counting: 50-9999
11. Control Temperature of fuel oil (): 40+2
12. Feed Oil Pressure: Low Pressure 0-0.4MPa, High-Pressure 0-4Mpa.
      Internal Pressure: 0-0.16MPa, 0-1.6MPa.
13. Rotation Direction of Main Shafts: Clockwise or Anticlockwise
14. Packing Dimension: 5M3 CBM
15. Packing Weight: 900kg
16. Output Power: 5.5kw, 7.5kw, 11kw and 15 kw or on Request
17. 3-Phase Power Supply: 380v/50hz or on Request.
18. Color Available: Green, Blue, Red, Yellow or on Request.
