Home > Instruments & Meters > Test Instrument > Test Machine > Diesel Fuel Injection Pump Test Bench
US$ 3,000 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
12PSDW
Model Number:
12PSDW-S
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hubei, China
Brand Name
12PSDW
Model Number
12PSDW-S
Power
Electronic
Usage
Auto Testing Machine
Specifications
Diesel Fuel Injection Pump Test BenchTest: mechanical in-line & rotary type fuel injection pumps
Test Bench Power: 7.5~22kw

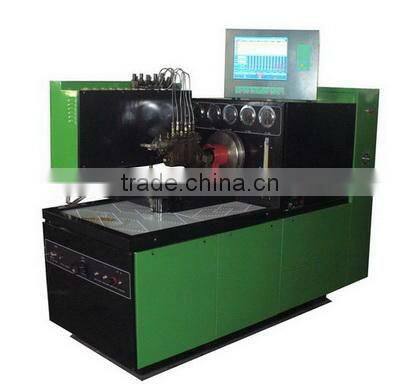

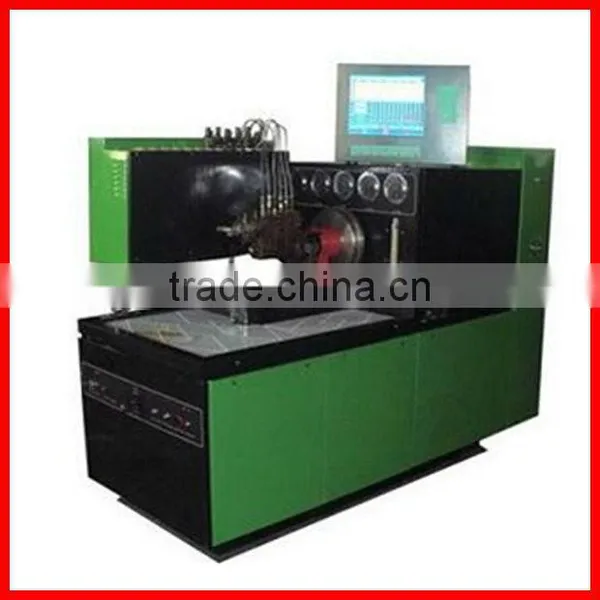

Diesel Fuel Injection Pump Test Bench, 12PSDW-S
12PSDW-S Electronic Fuel Delivery Measuring System Test Bench---continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems.
The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductively of the measured values.
Main Function:
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump.
7. Testing of the electromagnetic valve of distributor pump. (12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke (on request)
13.oil lubricate (on request)
14. Foced cooler (on request)
Main Function:
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump.
7. Testing of the electromagnetic valve of distributor pump. (12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke (on request)
13.oil lubricate (on request)
14. Foced cooler (on request)
Technical characteristic
Adjustable cylinders numbers | Out power(Kw) | RPM | Rpm pre-set | Temperature control system | Positive pressure system | Positive pressure system |
12 | 7.5 11 15 18.5 | 0-4000 | √ | √ | √ | √ |
Air supply | DC power supply | Internal pressure of VE pump | Oil return of VE pump | Travel of tooth bar | Advanced angle | Capability with pump type |
√ | √ | √ | √ | (On request) | √(On request) | All in- line and rotary pump |
