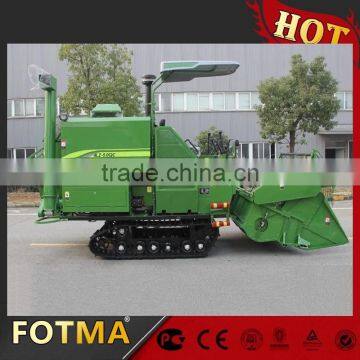

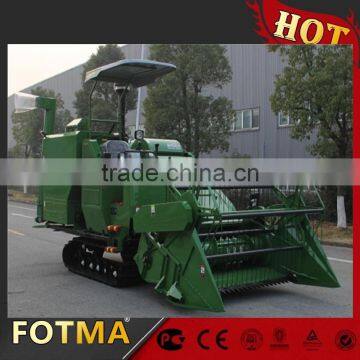

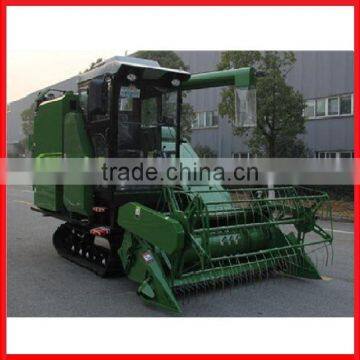

Rice Combine Harvester
- 100 Unit / Units per Month
- Wuhu port China
- T/T
Product Details
Condition: | New | Application: | 4LZ-5.0QC Rice & Wheat Combine Harvester | Type: | Combine Harvester |
Drive Type: | Gear Drive | Usage: | Other, Rice & Wheat Combine Harvester | Place of Origin: | Anhui, China |
Brand Name: | FOTMA | Model Number: | 4LZ-5.0QC | Dimension(L*W*H): | 4880x2520x2840mm |
Weight: | 2750kgs | Certificate: | Other, ISO | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Normal Packing
Product Description
4LZ-5.0QA Rice & Wheat Combine Harvester
Technical Features
1. The tangential flow + axial flow threshing device is adopted, which ensures more mature threshing and separation technology and higher adaptability;
2. Equip with 90/110hp engine, featuring strong power;
3. Widened conveying axle and widened vibrating screen contribute to less loss of wheat and more cleanness of grain tank;
4. The new dustproof radiator cover is more reliable for dust and impurity prevention and more convenient for daily use and maintenance;
5. The new type of caliper brake is adopted for more reliable brake performance;
6. Equip with GPS navigation system, and abnormal inspection and alarm device for axial flow drum, re-threshing and elevator, which improves the automation degree;
7. The combination instruments has additional sound alarm function when the water temperature, oil pressure and oil level are abnormal, which is more thoughtful;
8. The optional straw chopper can meet the requirements for straw mulching;
9. The new luxurious driver’s cab equips with air conditioner, and is more comfortable for driving;
10. When mounted with special attachments, it can be used to harvest rice, rape, soybean (flexible header), corn, etc. Thus it can improve the comprehensive economic profits.
11. The new dustproof radiator cover is more reliable for dust and impurity prevention and more convenient for daily use and maintenance.
Technical Parameters
Model | 4LZ-5.0QA | ||
Feeding capacity (kg/s) | 5.0 | ||
Overall Dimension L*W*H (mm) | 4880*2520*2840 | ||
Weight(kg) | 2750 | ||
Working efficiency (hm2/h) | 0.3-0.7 | ||
Engine | |||
Type | 4-cylinder in-line water cooling | ||
Rated Power (hp) | 88/95/100 | ||
Speed(r/min) | 2400 | ||
Fuel | Diesel | ||
Fuel tank capacity(L) | 160 | ||
Fuel Consumption(kg/hm2) | ≤32 | ||
Drive System | |||
Track | Specification | 90 mm× 52section× 450mm | |
| Track gauge | 1150 | |
Minimum Ground Clearance(mm) | 310 | ||
Transmission | Mechanical(75 gear)+ stepless hydraulic speed regulating (HST) | ||
Number of shifting positions | stepless speed | ||
Walking Speed(km/h) | 0-5.8 | ||
Cutting | |||
Reel | Type | Eccentric drawing-tooth | |
| Diameter(mm) | 900 | |
Cutting Width(mm) | 2000 | ||
Blade Width(mm) | 2000 | ||
Header auger | Spiral blade+Eccentric telescopic rod rack | ||
Grain unloading Part | |||
Grain unloading method | 270° hydraulic unloading | ||
Grain Tank(m³) | 1.1 | ||
Other configuration | |||
Automatic reversing mechanism | Equipped | ||
Dust fan | Equipped | ||
Anti-grass case | Equipped | ||
Belt for main clutch & walking | MISUBUSHI | ||
Bearing | NSK |
If you want to know more about our products, please send me e-mail.
