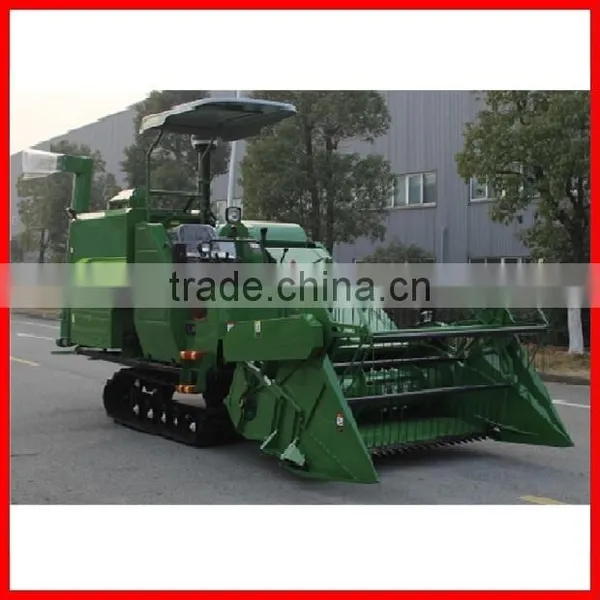

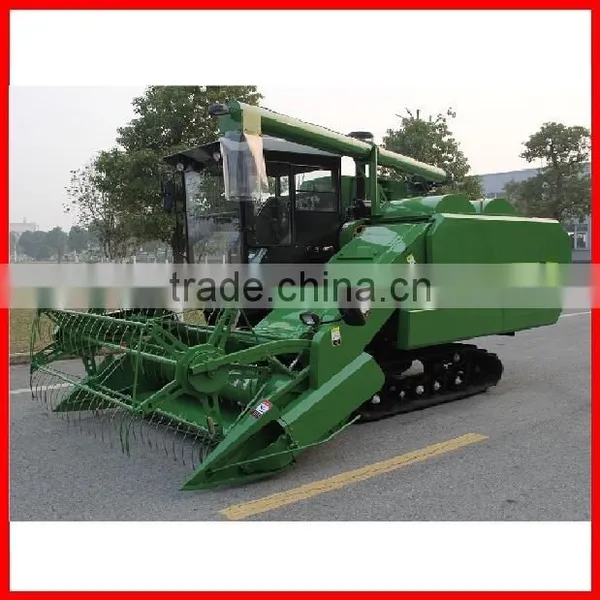

4LZ-2.5Q Rice & Wheat Combine Harvester

Name: 4LZ-2.5Q Rice & Wheat Combine Harvester
Brand: Fotma
Price: USD $9,000 - 15,000 / Unit

FOB Price

USD $9,000 - $15,000 / Unit

1 Unit(Min.Order)

Supply Ability 100 Unit / Units per Month
Port Wuhu port China
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	rice combine harvester	Type:	Combine Harvester
Drive Type:	Gear Drive	Usage:	Other, Rice Combine Harvester	Place of Origin:	Anhui, China
Brand Name:	Fotma	Model Number:	4LZ-2.5Q	Dimension(LWH):	4890x2300x2840mm
Weight:	2565kgs	Certificate:	CE	Warranty:	one year
After-sales Service Provided:	Overseas third-party support available

Packaging Details

Normal Packing

Product Description

4LZ-2.5Q Rice Combine Harvester

Technical Features
1. Mature power match, less fuel consumption, good reliability and large power reserve.
2. Hydraulic reel movement, applicable to multiple crops.
3. With widened crawler, the ground pressure is less than 20Mpa and the pass ability in rice field is improved.
4. HST stepless speed regulating technology is adopted for more convenient operation.
5. With tangential flow and transverse flow double spike tooth type threshing drum, it can thresh more thoroughly.
6. The adjustable reciprocating type double vibrating screen is adopted, and the screening effect is better.
7. Advanced scientific design and diversified protection device contribute to more convenient service and maintenance.
8. Internationally advanced suspended supporting wheel design is adopted, which effectively prolongs the service life of chassis system.

Technical Data

Model		4LZ-2.5Q
Feed capacity(kg/s)		2.5
Dimension(LWH)(mm)		489023002840
Weight(kg)		2565
Engine
Brand		Xinchai
Type		4-cylinder in-line water cooling
Rated power(hp)		75
Speed(r/min)		2400
Fuel		Diesel
Fuel consumption(kg/hm²)		≤32
Drive system
Track	Specification	90mm × 48 section × 400mm
	Track gauge(mm)	950
Min. ground clearance(mm)		240
Transmission		Mechanical + stepless hydraulic speed regulating (HST)
Number of shifting positions		Stepless speed
Cutting
Reel	Type	Eccentric drawing-tooth
	Diameter	900
Cutting width(mm)		2000
Blade width(mm)		2000
Header auger		Spiral blade+Eccentric telescopic rod rack
Grain unloading
Grain unloading method		Hydraulic automatic
Grain Tank(m³)		1.1
