Rice Combine Harvester

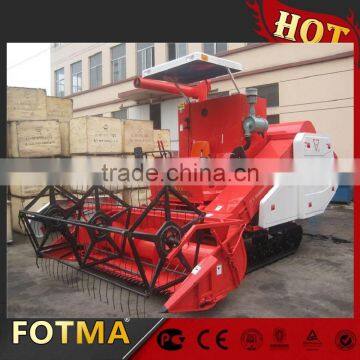

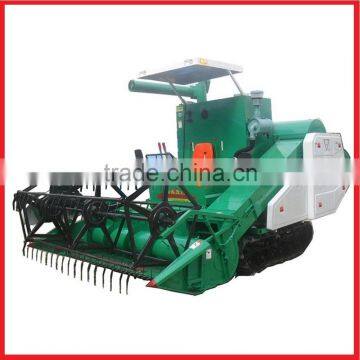

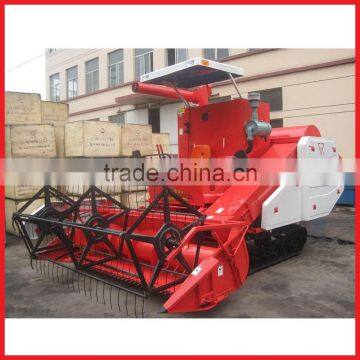

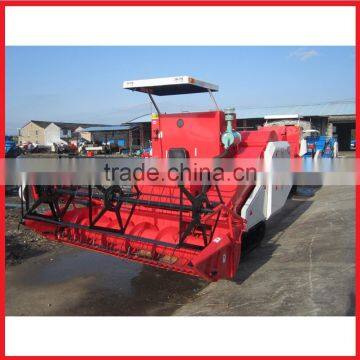

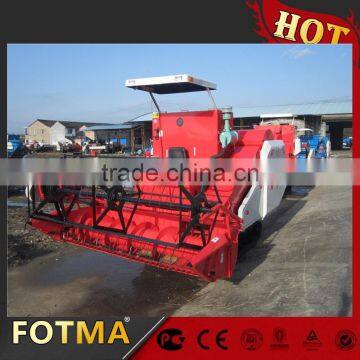

Rice Combine Harvester photo-1
Rice Combine Harvester photo-2
Rice Combine Harvester photo-3
Rice Combine Harvester photo-4
Rice Combine Harvester photo-5
Rice Combine Harvester photo-6
US$ 8,000 - 11,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
rice harvester
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application rice harvester
Type Combine Harvester
Drive Type Gear Drive
Usage Other, Rice Combine Harvester
Place of Origin Hubei, China
Brand Name Fotma
Model Number 4LZL-3.0
Dimension(L*W*H) 5280x2960x3000 mm
Weight 3180 kg
Certificate Other, ISO
Warranty 1 year
After-sales Service Provided Overseas third-party support available

4LZL-3.0 Rice Combine Harvester



Technical Features
1. Equip with 60kw(82hp) turbocharged engines, sufficient power margin, easily operated;
Advanced Technology:
2. Adopted longitudinal axial flow roller which is the most advanced technology of full feeding rice combine, more powerful threshing and separation capability, higher clearance and lower loss rate;
3. Integrated design of header and transportation make it easy to harvest both lodging crop and tall crop effectively;
4. The wide conveying channel makes the crop transportation more smoothly; Minimize the jam;
5. Large tank and grain box, reduce the intermediate links, high efficiency;
6. With vehicle technology,performance promoted;
Highly efficient:
7. For rice harvesting, (0.27-0.53)hectare/hour; For wheat harvesting, above 0.8hectare/hour;
8. Grass chopper and grain box are apolegamic;





Technical Parameters

Model

4LZL-3.0

Type

Full feeding, Self propelled, Tracked type

Dimension(LxWxH)

5280x2960x3000mm

Weight

3180kg

Cutting width

2580mm

Feeding speed

3.0kg/s

Track size

450mm x 90mm x 50 section

Min ground clearance

200mm

Gearbox

6F+2R

Speed range

1.71-5.28km/h

Engine horsepower

60kw(80hp)/2800rpm

Fuel consumption

8-10L/h (21-27kg/hm2)

Working capacity

0.3-0.53 hm2/h

Total loss rate

Rice≤3.0%, Wheat1.5%

Impurity rate

≤2.0 %

Breakage rate

≤1.5%

Reliability

≥93%

Ground pressure

≤24kpa

Cleaning type

Double sieves+blower+re-thresher

Grain unloading method

auger unloading

Grain Tank

0.9m3(600kg)
