Home > Products > Combine Harvesters > 4LZL-4.0Z Rice Combine Harvester
4LZL-4.0Z Rice Combine Harvester
- 100 Unit / Units per Month
- Ningbo port China
- T/T
Product Details
| Condition: | New | Application: | rice combine harvester | Type: | Combine Harvester |
| Drive Type: | Gear Drive | Usage: | Other, Rice Combine Harvester | Place of Origin: | Hubei, China |
| Brand Name: | Fotma | Model Number: | 4LZL-4.0Z | Dimension(L*W*H): | 5100x2500x2650mm |
| Weight: | 3050kgs | Certificate: | Other, ISO | Warranty: | 1 year |
| After-sales Service Provided: | Overseas third-party support available |
Packaging Details
Normal Packing
Product Description
4LZL-4.0Z Rice Combine Harvester
Technical Features
Mature power match, less fuel consumption, good reliability and large power reserve
Hydraulic reel movement, applicable to multiple crops.
With widened crawler, the ground pressure is less than 20Mpa and the pass ability in rice field is improved.
HST stepless speed regulating technology is adopted for more convenient operation.
With tangential flow and transverse flow double spike tooth type threshing drum,it can thresh more thoroughly.
The adjustable reciprocating type double vibrating screen is adopted,and the screening effect is better.
Advanced scientific design and diversified protection device contribute to more convenient service and maintenance.
Internationally advanced suspended supporting wheel design is adopted,which effectively prolongs the service life of chassis system.
Technical Data
Model | 4LZL-4.0Z |
Type | Full feeding, Self propelled, Tracked type |
Dimension(LxWxH) | 5100x2500x2650mm |
Weight | 3050kg |
Cutting width | 2000mm |
Feeding speed | 4.0kg/s |
Track size | 450mm x 90mm x 50 section |
Min ground clearance | 200mm |
Gearbox | 6F+6R mechanical |
Speed range | 0-5.7km/h |
Engine horsepower | 70kw/2400rpm |
Fuel consumption | 8-10L/h(21-27kg/hm2) |
Working capacity | 0.3-0.5 hm2/h |
Total loss rate | Rice≤3.0%, Wheat≤1.5% |
Impurity rate | ≤2.0 % |
Breakage rate | ≤1.5% |
Reliability | ≥93% |
Ground pressure | ≤24kpa |
Cleaning type | Double sieves+blower+re-thresher |
Grain unloading method | Sacked and auger unloading |
Grain Tank | 0.3m³ or 0.7m³ |

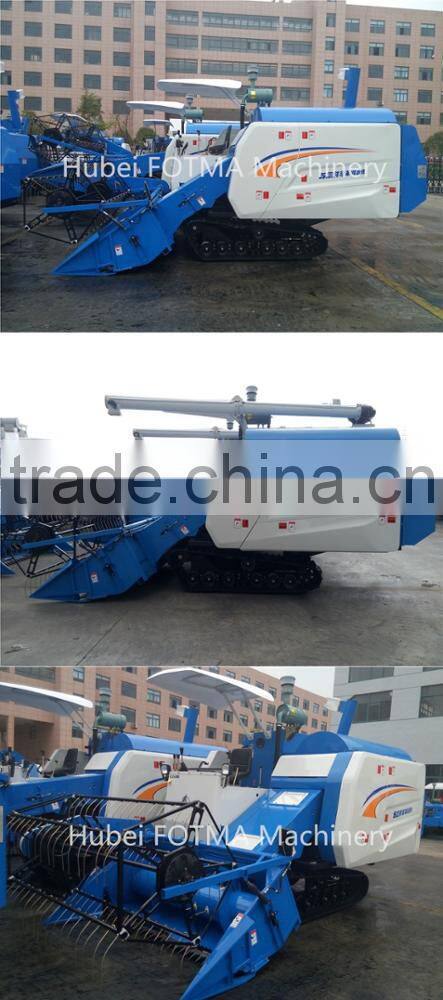

4LZL-4.0 rice combine harvester
