Rice & Wheat Combine Harvester
- 100 Unit / Units per Month
- Wuhu port China
- T/T
Product Details
| Condition: | New | Application: | rice & wheat combine harvester | Type: | Combine Harvester |
| Drive Type: | Gear Drive | Usage: | Other, Rice & Wheat Combine Harvester | Place of Origin: | Anhui, China |
| Brand Name: | FOTMA | Model Number: | 4LZ-6.0QA | Dimension(L*W*H): | 55000x2700x3000mm |
| Weight: | 4800kgs | Certificate: | CE | Warranty: | one year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Normal Packing
Product Description

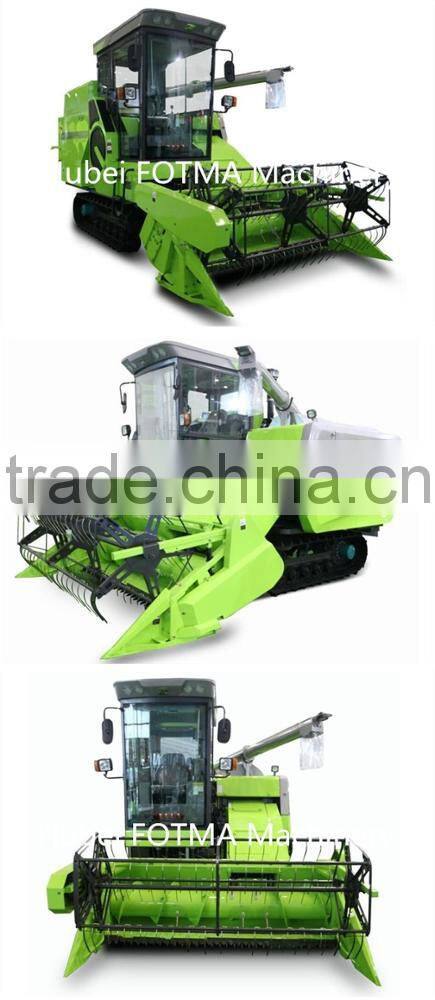

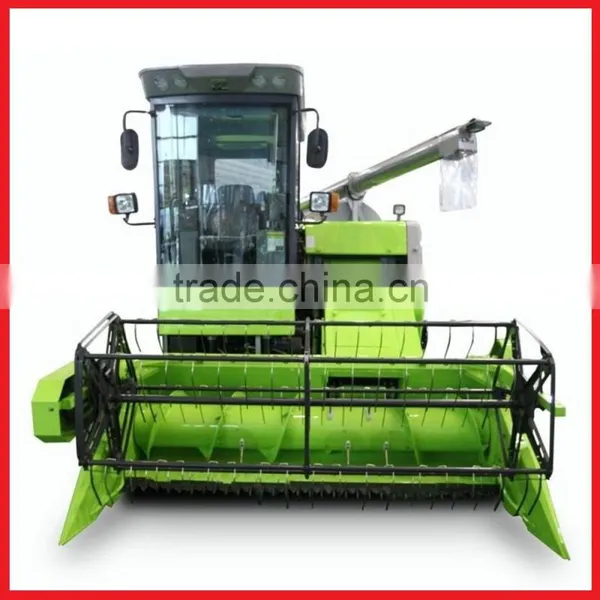

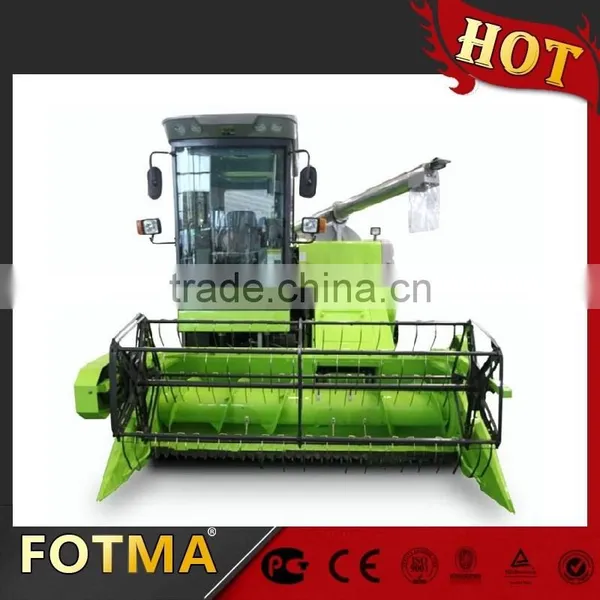

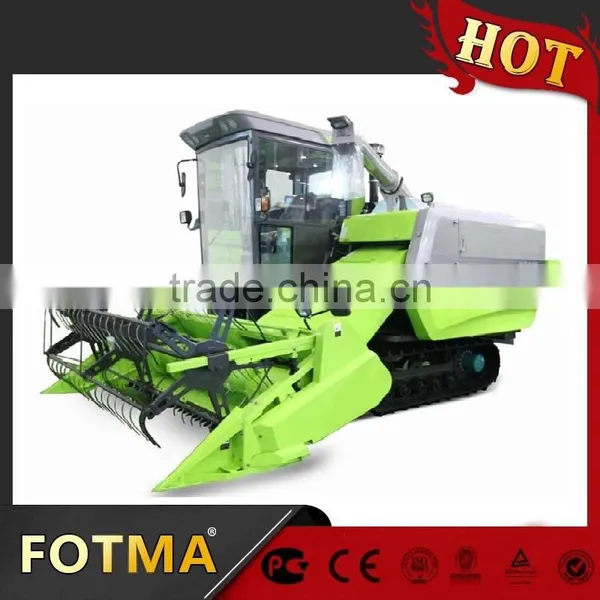

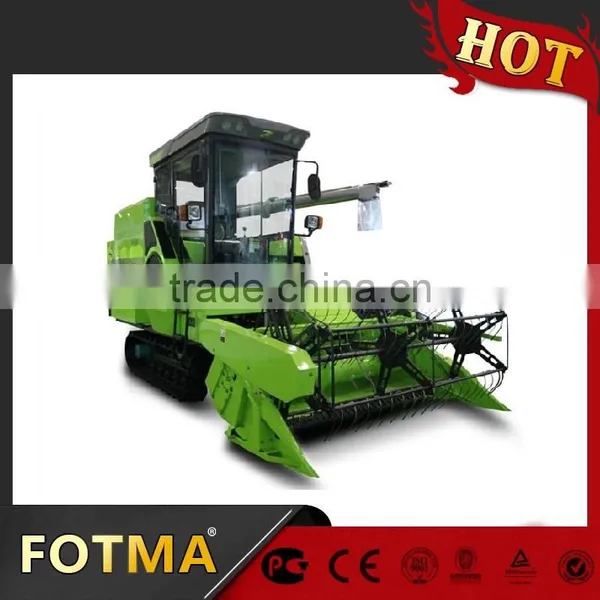

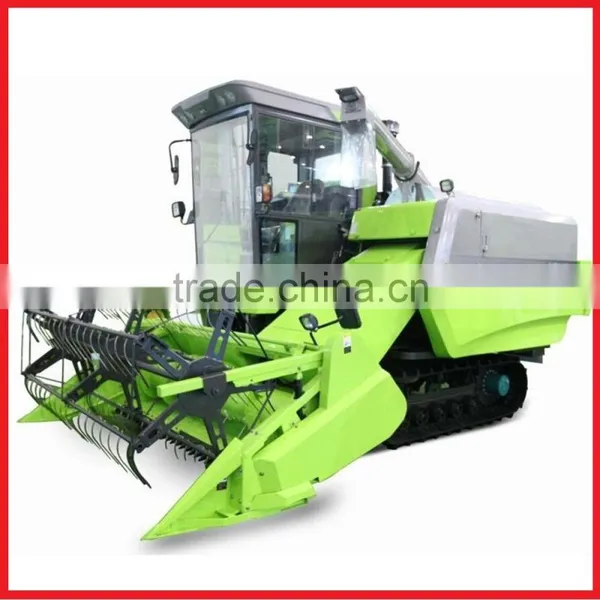

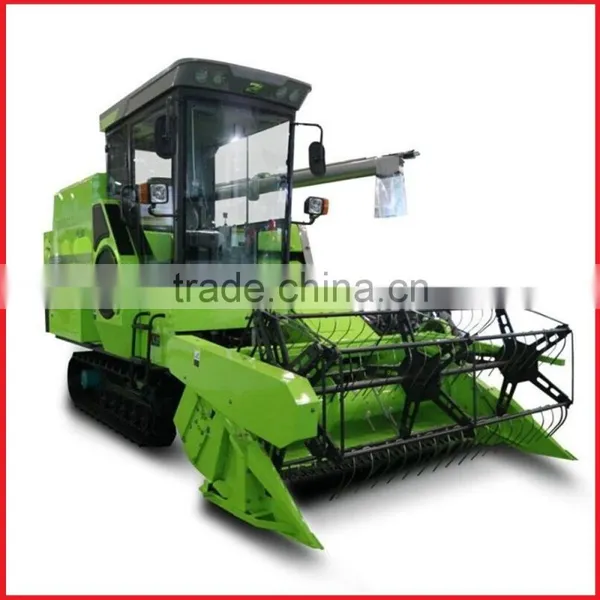

4LZ-6.0QA Rice & Wheat Combine Harvester
Technical Features
1. Equipped with high-quality engine of 110 horse power, giving a strong driving force;
2. Automatically 270°Hydraulic unloading type to improve working efficiency; Rotary grain tank, easy for maintenance;
3. Equipped with luxury cab with air conditioner;
4. With large cutting width of 2500mm, and 600mm wider paddy field track, better pass ability;
5. Simple operating console, hydraulic chassis driving system.
6. Equipped with double pump and motor, more easy for steering and transmission.
Technical Parameters
Model | 4LZ-6.0QA | ||
Feed capacity(kg/s) | 6.0 | ||
Cabin | Luxurious cab with air conditioning | ||
Weight(kg) | 4800 | ||
Overall dimension(mm) | 5500 x2700x3000mm | ||
Engine | Type | 4-cylinder in-line water cooling | |
| Rated power(kw) | 81 | |
| Speed(r/min) | 2400 | |
| Fuel | Diesel | |
| Fuel consumption(kg/hm²) | ≤33 | |
Drive system-hydraulic chassis | Track | Specification | 90 mm× 60section× 600mm |
|
| Track gauge | 1300 |
| Min. ground clearance(mm) | 550 | |
| Transmission | Hydraulic motor | |
| Number of shifting positions | Stepless speed | |
| Walking speed(km/h) | 0-7.2 | |
Cutting | Reel | Type | Eccentric dial-tooth |
|
| Diameter | 900 |
| Cutting width(mm) | 2500 | |
| Blade width(mm) | 2500 | |
| Header auger | Spiral blade+Eccentric telescopic rod rack | |
Grain unloading part | Grain unloading method | 270° hydraulic unloading type | |
| Grain Tank(m³) | 1.5(Hydraulic) | |
