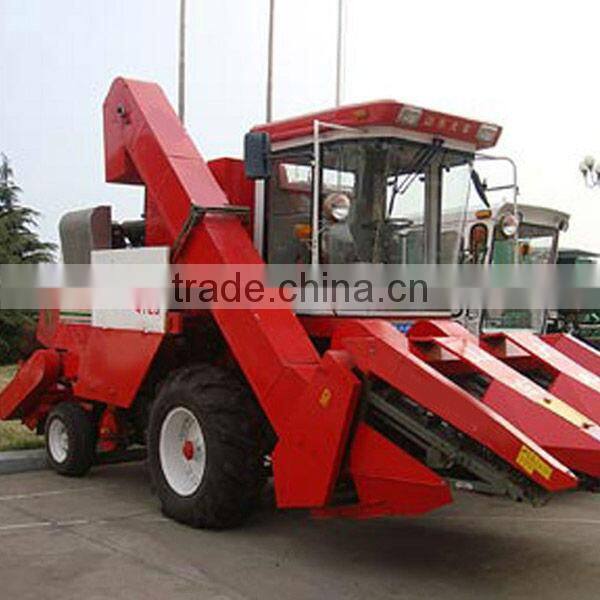

4YZ-3 Corn Combine Harvester

4YZ-3 Corn Combine Harvester photo-1
US$ 10,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
corn combine harvester
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application corn combine harvester
Type Combine Harvester
Drive Type Gear Drive
Usage Other, Rice combine harvester
Place of Origin Hubei, China
Brand Name FOTMA
Model Number 4LZ-2.0
Dimension(L*W*H) 7860x2000x3600(mm)
Weight 6400kg
Certificate Other, SGS
Warranty 1 Year
After-sales Service Provided Overseas third-party support available

Specifications

4YZ-3 Corn Combine Harvester
Interchangeable header
Fulfill many functions;
Lower loss rate;
More function and lower price.

4YZ-3 Corn Combine Harvester


Specifications:

4YZ-3 corn combine harvester has many advantages,

it is easy to operate and maintain, convenient to change the header.

Favorable Advantage

1.    Matched with wheat self-propelled machine, interchangeable header, more convenient.

2.    Header ascend and descend uprightly with no alter of harvesting angle.

3.    Hydraulic control of ascend and descend to ensure convenient and agile operation.

4.    Picked by horizontal roller

5.    Straw chopper makes more working  efficiency

6.    Lower loss rate, more function and lower price.

7.    Stable performance and good suitability.


Features:
1.Use of Interchangeable header can fulfill many functions and increase working hours. It not only can harvest corn but also can do wheat
2.Self-propelled type, reasonable structure obtains convenient operation.
3.Lower loss rate, more function and lower price.
4.Stable performance and good suitability.
NOTE:4YZ-3 Corn Combine Harvester can exchange header with 4LZ-2.6 Wheat Combine Harvester



Main Performance for 4YZ-3 Corn & Wheat Combine Harvester

Grain Loss Rate

≤2%

Broken Rate

≤1%

Qualified Rate of Cut Straw Length

≥90%

Loss Rate of Ears

≤3%

Reliability

≥95%



Specification sheet for 4YZ-3 corn & wheat combine harvester

Model

4YZ-3 Header Interchangeable Combine Harvester

Size (Central Distance)

700 Left /670 Right

Matched Motor

66KW (4LZ-2.6)

Productivity (Hectare/h)

0.27-0.53

Oil consumption

≤ 30Kg/Hec

working Speed

1.5-3.5 Km/h

Running speed

1.78-20 Km/h

Weight

6400kg

Number of Working Lines

3

Perfect Row Spacing

600-700mm

Suitable Row Spacing

550-850mm

Lowest Height of Ears

≥500mm

Dimension (Length×Width×Height)

7860×2000×3600(mm)

Minimum Turn Radius

5.2m

Cutter Type

Claw Type and Throw Falchion Type

Number of Claws

12

Rotate Speed of Cutter Spindle

1860 rev/s

Working Width of Back-to-the-field Machine

1800mm

Spread Width of Back-to-the-field Machine

1800-2000mm

Clearance apart from Land

≥300mm

Minimum Stubble Height

≤50mm

Grain Tank Capability

2.5 Stere

Unloading Type

Hydraulic unloading

Qty’/40HC

1 set



4YZ-3 Corn Combine Harvester4YZ-3 Corn Combine Harvester
