Specifications
4LZ-2.6Y corn harvesterharveste the corn grain.
1.8 CBM grain tank.
weight: 4300kg.
harvester cutting width 2360mm.

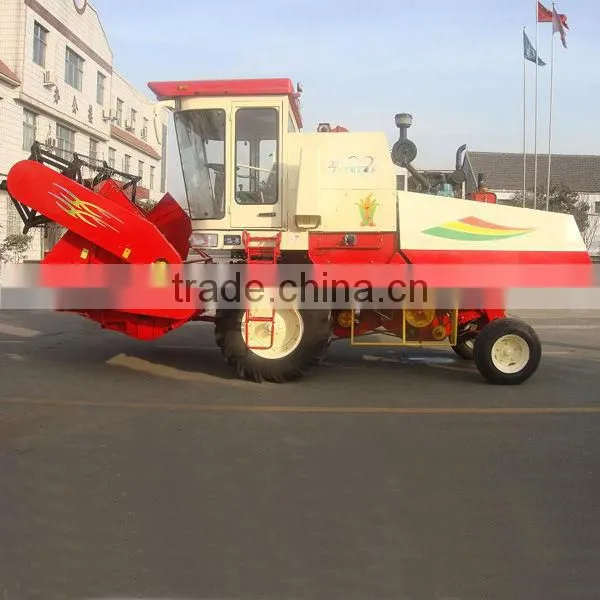

4LZ-2.6Y Corn Harvester
4LZ-2.6Y self-propelled type corn harvesters could harveste the corn grain and obtain the straw returning.
Favorable performance:
1. The king-size water tank radiator, favorable for long-time harvestering operations;
2. The new kind of cleaning mechanism guarantees high cleanliness of the seeds;
3. The enlarged grain unloading port reduces the supporting grain unloading time, thus enhancing the operational efficiency;
4. Steples speed-adjustment of reel: Non-stop of machine during operation. Rotate speed can be adjusted according to requirments and increase productivity.
Technical parameter
Main Performance | |
Loss Rate | ≤1.2% |
Grain Broken Rate | ≤3.0% |
Impurities Rate | ≤2.0% |
Stubble Height | ≤400 mm |
Technical specification | |
Model | 4LZ-2.6Y |
Cutting Width | 2360mm |
Main Machine Weight | 4300kgs |
Contour dimension | 7140X2927X3320 |
Feeding Weight | 2-2.6 kg/s |
Productivity | 0.4-0.66 ha/h |
Engine | diesel oil |
Type | LR4108 |
Power (rotate speed) | 66kw/90hp (2300) |
The oil consumption per hectare | ≤30Kg |
Gear box | (3+1)*2 |
Steering | hydraulic control |
Ground Clearance | 335mm |
Turn radius (left) | 6.68m |
Turn radius (right) | 6.60m |
Running speed | 1.78-20 Km/h |
Oil tank capacity | 170 L |
Grain tank | 1.8 stere |
Qty’ | 1 set / 40HQ |
If there is any question about the oil press, please send emial to fotmasale01#, or fotmasale01#. Please change # to @ when sending the email.
