WA-B Thermostatic Magnetic Stirrer

WA-B Thermostatic Magnetic Stirrer thumbnail-1
WA-B Thermostatic Magnetic Stirrer thumbnail-2
WA-B Thermostatic Magnetic Stirrer thumbnail-3
WA-B Thermostatic Magnetic Stirrer thumbnail-4
WA-B Thermostatic Magnetic Stirrer thumbnail-5
WA-B Thermostatic Magnetic Stirrer thumbnail-6
WA-B Thermostatic Magnetic Stirrer photo-1
WA-B Thermostatic Magnetic Stirrer photo-2
WA-B Thermostatic Magnetic Stirrer photo-3
WA-B Thermostatic Magnetic Stirrer photo-4
WA-B Thermostatic Magnetic Stirrer photo-5
WA-B Thermostatic Magnetic Stirrer photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
WJ
Model Number:
WA-Basic
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Changzhou W&J Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shaghai or other
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WJ
Model Number WA-Basic
Place of Origin Shanghai, China

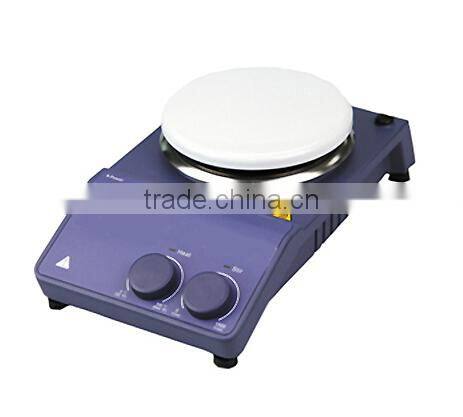

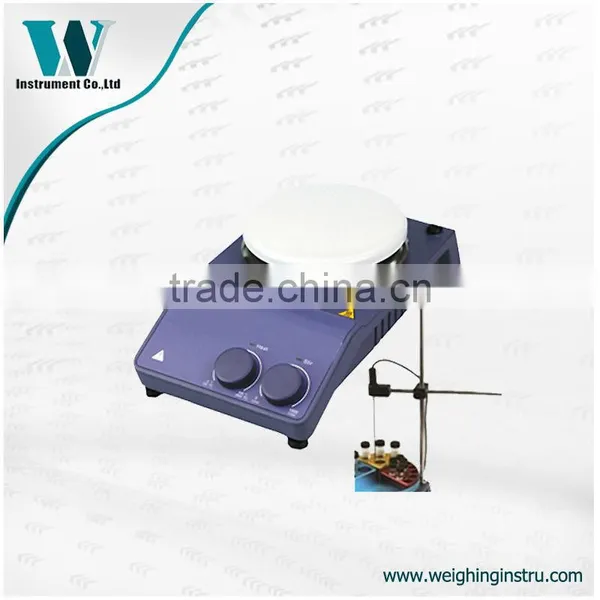

 WA-B thermostatic magnetic stirrer



WA-B thermostatic magnetic stirrer

WA-B thermostatic magnetic stirrer

WA-B thermostatic magnetic stirrer

- Stainless steel with ceramic coated hotplate resists to corrosion

- Separated safety circuit, automatically stop heating when temperature over 350℃

- Motor with electronic speed control, constant speed even during changes in load

- Variable speed of motor

- High magnetic adhesion, prevent the stirrer bar escape

- Enclosed assembly with protection class IP42 and DC brushless motor guarantees long service





Technical Data WA-Basic
Voltage 100-120/200-240V
Frequency 50/60HZ
Power 430W
Stirring point position quantity 1
Max stirring quantity (H2O) 20L
Max magnetic bar 80mm
Motor type Exterior rotor brushless motor
Motor rating input 18W
Motor rating output 10W
Speed range 0 – 1500RPM
Speed display Scale
Material of plate Porcelain Enamel
Dimension of Plate φ135mm
Heating Power 400W
Heating Rate (1L water) 6K/min
Temperature range Room Temp ~ 340 degree
Safety circuit (heating plate) 350 degree
Dimension (W×D×H) 280×160×85mm
Weight [kg] 2.8
Permissible ambient temperature 5~40 degree
Permissible relative humidity 80%
Protection class acc. to DIN EN60529 IP42



WA-B thermostatic magnetic stirrerWA-B thermostatic magnetic stirrerWA-B thermostatic magnetic stirrerWA-B thermostatic magnetic stirrer
