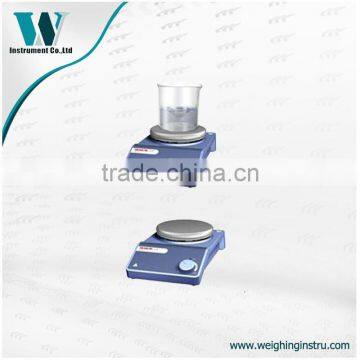

WA-550 Laboratory Magnetic Motor Stirrer Shaker

WA-550 laboratory magnetic motor stirrer shaker

Features:

1. 7" square hotplate magnetic stirrers are widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals and other fields.

2. PID temperature technology precise controls heating process, rapidly reaches target temperature and enhances control accuracy, heating temperature up to 550°C. It has glass ceramic plate extremely resistant to corrosion and easy to clean.

3. The heating models are suitable for external temperature sensor PT1000, display and control actual medium temperature.

4. External temperature sensor PT1000 is available, real-time control medium temperature.

5. Simple running interface easy to use and program. Automatically identify temperature sensor PT1000 and transfer to PT1000 operation mode. Record and display the last running parameters when switch on.

6. LCD display target and actual temperature, as well as set speed and actual speed can be displayed.

7. Separate safety circuits with fixed safety temperature of 580 degree, automatically stops heating once exceed secure temperature

8. HOT warning indicates residual hotplate temperature. LCD display would show “Hot” when hotplate temperature over 50°C warning point, even if switched off.

9. Free software, computer can control and document all operation values via RS232 interface

Specifications:

1. Dimension of work plate: 184x184mm (7 inch)

2. Work plate material Glass ceramic

3. Motor type DC brushless motor

4. Motor rating input: 18W

5. Motor rating output: 10W

6. Power: 1050W

7. Voltage: 100-120/200-240V

8. Frequency: 50/60HZ

9. Stirring positions: 1

10. Max. stirring quantity: 20L

11. Max. magnetic bar: 80mm

12. Speed range: 100-1500RPM

13. Speed display: LCD

14. Speed display resolution: ±1RPM

15. Heating output: 1000W

16. Heating temperature range: RT-550 °C , increment 1

17. Control accuracy of work plate: ±1°C(<100°C) ±1%(>100°C)

18. Safety temperature: 580°C

19. Temperature display: LCD

20. Temperature display accuracy: ±0.1°C

21. External temperature sensor: PT1000

22. Control accuracy with external temperature sensor PT1000: ±0.2°C

23. Heating warning: 50°C

24. Remote control (RS232 interface): Yes

25. Protection class according to DIN EN60529: IP21

26. Dimension [W x D x H]: 215x360x112mm

27. Weight: 5.3Kg

28. Permissible ambient temperature: 5-40°C

29. Permissible relative humidity: 80%
