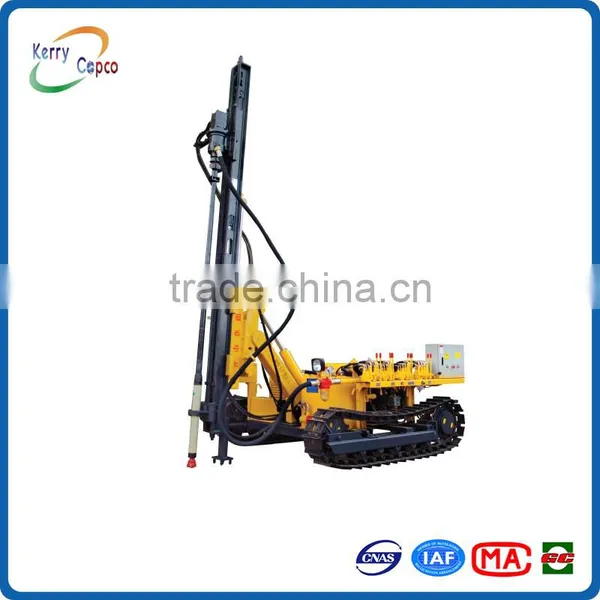

KG910C Low Pressure Diesel Engine and Electrical Motor Crawler Mounted Pneumatic Surface DTH Drilling Rig

Guangzhou Kerrycopco Machinery And Equipment Co., Ltd.
KG910C Low Pressure Diesel Engine and Electrical Motor Crawler Mounted Pneumatic Surface DTH Drilling Rig thumbnail-1
KG910C Low Pressure Diesel Engine and Electrical Motor Crawler Mounted Pneumatic Surface DTH Drilling Rig photo-1
US$ 13,200 - 15,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Other, Diesel and Electric
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Other, Diesel and Electric
Place of Origin Zhejiang, China
Brand Name Kaishan
Model Number KG910C
Usage Ore
Voltage 380V
Power(W) 20.2 / 22 kw
Dimension(L*W*H) 4.1*2.1*2.1 m
Weight 3300 kg
Certification ISO9001:2000
Warranty 1 Year
After-sales Service Provided No overseas service provided

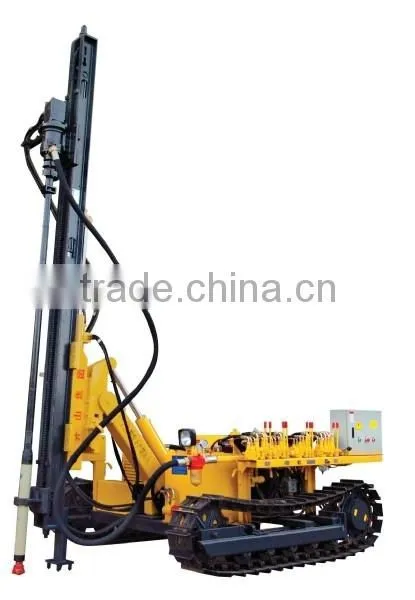

KAISHAN KG910C Low Pressure Diesel Engine and Electrical Motor Crawler Mounted Pneumatic Surface DTH Drilling Rig

KG910C low pressure diesel engine and electrical motor crawler mounted pneumatic surface DTH drilling rig

Low Pressure Pneumatic Surface DTH Drilling Rig

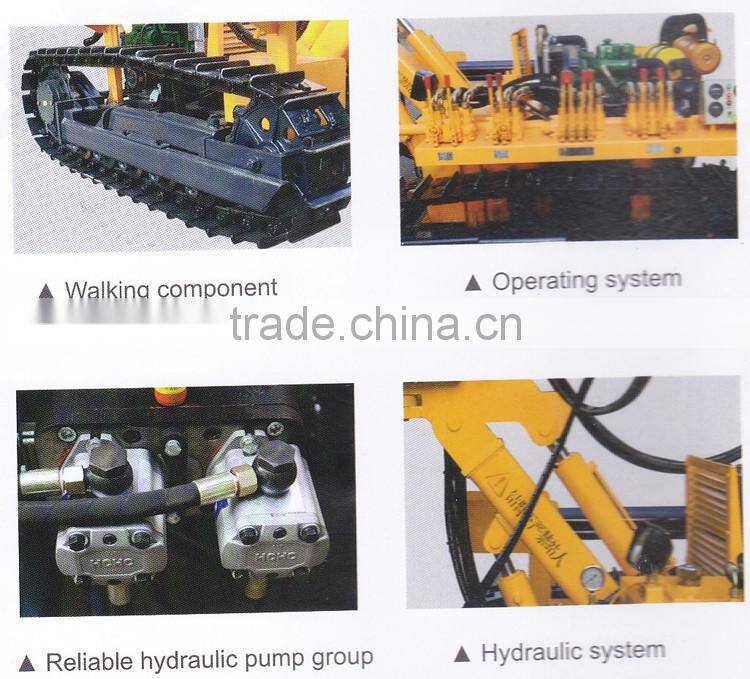

KG910 series surface DTH drilling rig retains the characteristics of KY100 drilling rig such as simple structure and stable performance. The hydraulic system, traveling components and the gyrator have been optimized and upgraded. The rotation speed and advancing speed can be faster. The motor service life is longer and the reliability is better.



KG915 series surface DTH drilling rig is with variable pitch mechanism and double pivot angle mechanism, and can drill laterally horizontal holes. Application of 45º inclined compensation frame, the orifice and the discharge rod operation situation can be observed clearly by driver. It is equipped with lifting tool warehouse to access drill pipe conveniently and reduces the labor intensity.



Low Pressure Pneumatic Surface DTH Drilling Rig Specification
ModelKG910AKG910BKG910CKG910DKG915KG915D
Rock Rigidityf=6-20f=6-20f=6-20f=6-20f=6-20f=6-20
Drilling Hole Diameter80-105mm80-105mm80-105mm80-105mm80-105mm80-105mm
Drilling Depth25m25m25m25m25m25m
Traveling Speed0-2.0km/h0-2.0km/h0-2.0km/h0-2.0km/h0-2.0km/h0-2.0km/h
Rotation Speed0-105r/min0-120r/min0-120r/min0-120r/min0-120r/min0-120r/min
Rotation Torque980N.m980N.m980N.m980N.m980N.m980N.m
Max. Feed Force15000N15000N15000N15000N15000N15000N
Push WayCylinder. ChainCylinder. ChainCylinder. ChainCylinder. ChainCylinder. ChainCylinder. Chain
Feed Stroke2000mm2000mm2000mm2000mm2000mm2000mm
Climb Capacity30º30º30º30º30º30º
Ground Clearance254mm254mm254mm254mm290mm290mm
Weight3100kg3400kg3300kg3400kg3900kg3900kg
Dimension4.1*2.03*2.02m4.1*2.03*2.02m4.1*2.1*2.1m4.1*2.03*2.02m4.6*2.12*1.8m4.6*2.12*1.8m
Guide Tilt23.5º up, 118.5º down23.5º up, 118.5º down23.5º up, 118.5º down23.5º up, 118.5º down55º up, 145º down55º up, 145º down
Guide Swing11.5º right, 36.5º left11.5º right, 36.5º left11.5º right, 36.5º left11.5º right, 36.5º left45º right, 100º left45º right, 100º left
Boom Lift35ºup, 60ºdown35ºup, 60ºdown35ºup, 60ºdown35ºup, 60ºdown25ºup, 50ºdown25ºup, 50ºdown
Compensation Stroke900mm900mm900mm900mm900mm900mm
Engine ModelZS1125GMYC2108ZS1125GM / ElectromotorElectromotorYC2108Electromotor
Power20.2kw33kw20.2 / 22kw22kw33kw22kw
Working Pressure7-10bar7-10bar7-10bar7-10bar7-14bar7-14bar
Air Consumption9-13m³/min9-13m³/min9-13m³/min9-13m³/min9-13m³/min9-13m³/min
Air Hoseφ38*8*20 (φ38*1*20)φ38*8*20 (φ38*1*20)φ38*8*20 (φ38*1*20)φ38*8*20 (φ38*1*20)φ38*1*20 (φ38*8*20) φ38*8*20 (φ38*1*20)
Recommended HammerQCZJ90 (QCW930)QCZJ90 (QCW930)QCZJ90 (QCW930)QCZJ90 (QCW930)QCZJ90 (QCW930)QCZJ90 (QCW930)
Recommended Rodφ60*2000mmφ60*2000mmφ60*2000mmφ60*2000mmφ60*2000mmφ60*2000mm
Recommended Bitφ80-105mm (90mm)φ80-105mm (90mm)φ80-105mm (90mm)φ80-105mm (90mm)φ80-105mm (90mm)φ80-105mm (90mm)
Recommended Air CompressorLGCY-10/7 (LGCY-13/7; LGCY-10/10; LGCY-12/10)LGCY-10/7 (LGCY-13/7; LGCY-10/10; LGCY-12/10)LGCY-10/7 (LGCY-13/7; LGCY-10/10; LGCY-12/10)LGCY-10/7 (LGCY-13/7; LGCY-10/10; LGCY-12/10)LGCY-10/10 (LGCY-13/7; LGCY-12/10)LGCY-10/10 (LGCY-13/7; LGCY-12/10)
Please contact us for further information.

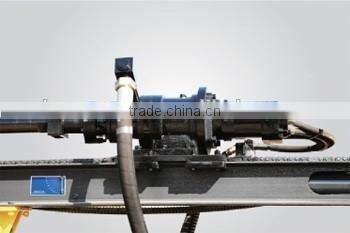

KG910C low pressure diesel engine and electrical motor crawler mounted pneumatic surface DTH drilling rig

KG910C low pressure diesel engine and electrical motor crawler mounted pneumatic surface DTH drilling rig

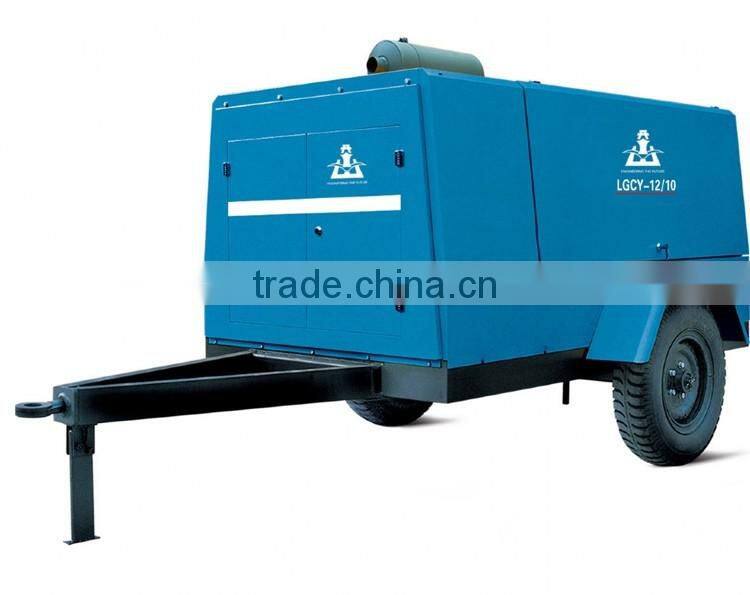

Recommended Diesel engine portable screw air compressor (LGCY-12/10):

KG910C low pressure diesel engine and electrical motor crawler mounted pneumatic surface DTH drilling rig



Recommended components and spare parts for drilling equipments:

KG910C low pressure diesel engine and electrical motor crawler mounted pneumatic surface DTH drilling rig



Please contact us for further information.
