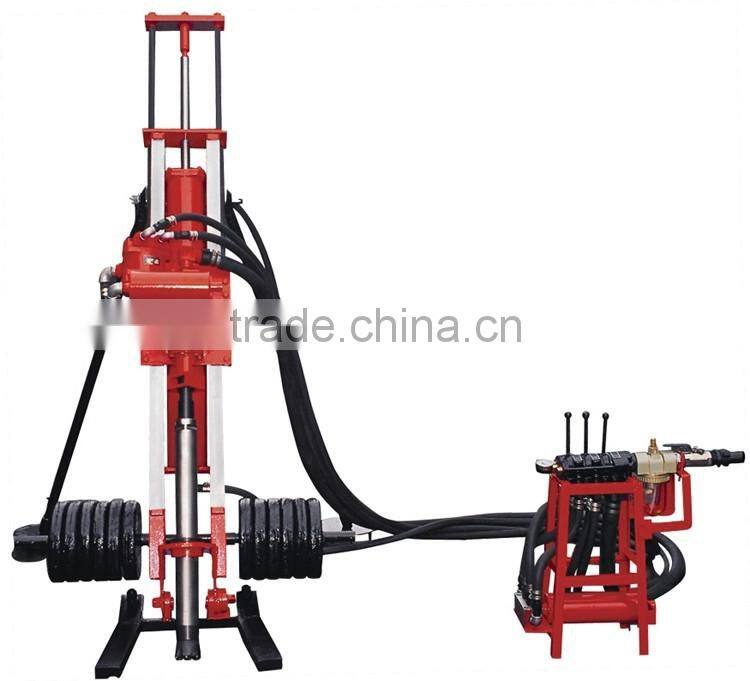

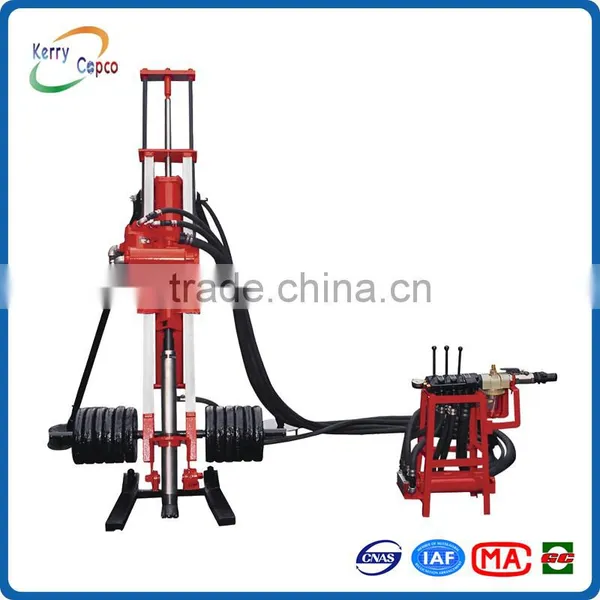

KAISHAN KSZ100 Air Compressor Driven ECO DTH Rock Drill
Energy-saving DTH Rock Drill
KQ series DTH rock drill is a new type of energy-saving and high efficiency drilling equipment. It is widely used in medium and small mines and road construction, national defense, water conservancy and the stone in the engineering of deep hole drilling operation, also is the indispensable drilling open-pit mining equipment, especially is suitable for rugged terrain; the machine is with compact structure, convenient operation, high speed, high efficiency, good machine detachable, and transportation is extremely convenient.
1. Using engine or electrical motor as the power, the drill works economically, efficiently, savingly.
2. Using straight tooth transmission reducer with big rotary torque, high drilling efficiency.
3. Novel overload protection makes the operation of the rig be stable and reliable.
4. Unique drilling frame lock structure, to ensure hole angle be accurate and consistent.
5. Delicate counter weight device makes the drill work stable and reliable and do not shift.
KYQ series DTH rock drill is with hydraulic system driven by electrical motor or diesel engine;
KSZ series DTH rock drill is with pneumatic system driven by air compressor;
KQD series DTH rock drill is with hydraulic system driven by electrical motor.
| KQ Series DTH Rock Drill Specification | |||||
| Model | KQY90 | KSZ100 | KQD70 | KQD100 | KQD120 |
| Drilling Hole Diameter | 80-100mm | 80-100mm | 60-80mm | 80-100mm | 80-100mm |
| Optium Drilling Depth | ≥20m | ≥20m | ≥15m | ≥20m | ≥20m |
| Rotation Speed | 0-75rpm | 0-93rpm | 0-125rpm | 0-62 / 0-78rpm | 0-62 / 0-84rpm |
| Working Pressure | 0.5-0.7MPa | 0.5-0.7MPa | 0.5-0.7MPa | 0.5-0.7MPa | 0.5-0.7 / 0.5-1.0MPa |
| Rod-diameter*Length | 60*1000mm | 60*1000mm | 40*1000mm | 60*1000mm | 60*1000mm |
| Air Consumption | ≥7m³/min | ≥12m³/min | ≥3.5m³/min | ≥7m³/min | ≥9m³/min |
| Max. Push Power | 15000N | 9600N | 4000N | 9600N | 9600N |
| Power | 18HP | / | 3kw | 4kw | 5.5kw |
| Size | 2300*1100*950 mm | 2300*600*750 mm | 2200*600*600 mm | 2300*600*750 mm | 2300*600*750 mm |
| Weight | 700 kg | 550 kg | 400 kg | 550 kg | 580 kg |
| Recommended Hammer | QCZ90 (QCW90) | QCZ90 (QCW90) | QCZ70 (QCZ60) | QCZ90 (QCW90) | QCZ90 (QCW90) |
| Recommended Rod | φ60*1000mm | φ60*1000mm | φ40*1000mm | φ60*1000mm | φ60*1000mm |
| Recommended Bit | φ80-100mm (90mm) | φ80-100mm (90mm) | φ60-80mm (76mm) | φ80-100mm (90mm) | φ80-100mm (90mm) |
| Recommended Air Compressor | LGCY-7.5/7 | LGCY-12/7 | LGJY-4.5/6 | LGY-7.4/7 | LGY-10.5/7G |
| Model | KQD145B | KQD150B | KQD155B | KQD165B | KQD165Z |
| Drilling Hole Diameter | 90-130mm | 90-130mm | 90-130mm | 90-150mm | 90-160mm |
| Optium Drilling Depth | ≥50m | ≥50m | ≥50m | ≥50m | 80m |
| Rotation Speed | 0-60rpm | 0-60rpm | 0-60rpm | 0-60rpm | 0-60rpm |
| Working Pressure | 0.7-1.4MPa | 0.7-1.4MPa | 0.7-1.4MPa | 0.7-1.4MPa | 0.7-1.4MPa |
| Rod-diameter*Length | 76*1000mm | 76*1500mm | 76*1500mm | 76*1500mm | 76*1500 / 89*1500mm |
| Air Consumption | ≥12m³/min | ≥12m³/min | ≥12m³/min | ≥12m³/min | 13.2-16.8m³/min |
| Max. Push Power | 12000N | 12000N | 12000N | 12000N | 16000N |
| Power | 7.5kw | 7.5kw | 7.5kw | 11kw | 8.8kw |
| Size | 2300*1000*850 mm | 2900*1000*850 mm | 2900*1000*850 mm | 3400*1120*1300 mm | 3700*1330*1500 mm |
| Weight | 580 kg | 600 kg | 600 kg | 1200 kg | 1600 kg |
| Recommended Hammer | QCZ90 (QCW90) | QCZ90 (QCW90) | QCZ90 (QCW90) | QCZ90 (QCW90) | QCZ90 (QCW90) |
| Recommended Rod | φ76*1000mm | φ76*1500mm | φ76*1500mm | φ76*1500mm | φ76*1500mm (φ89*1500mm) |
| Recommended Bit | φ90-130mm (90mm) | φ90-130mm (90mm) | φ90-130mm (90mm) | φ90-150mm (90mm) | φ90-150mm (90mm) |
| Recommended Air Compressor | LGY-13/7G | LGY-13/7G | LGY-13/7G | LGY-16/13G, LGY-18/17G | LGY-16/13G, LGY-18/17G |
| Please contact us for further information. | |||||

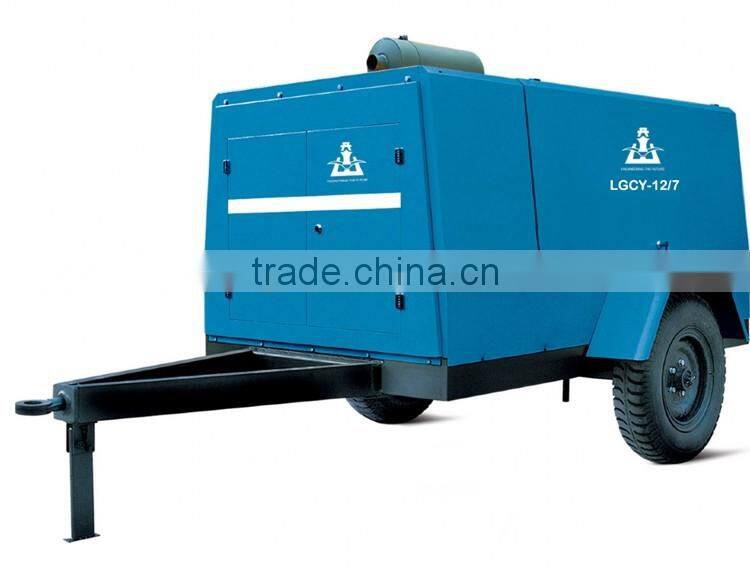

Recommended screw air compressor (LGCY-12/7):
Recommended components and spare parts for drilling equipments:
Please contact us for further information.
