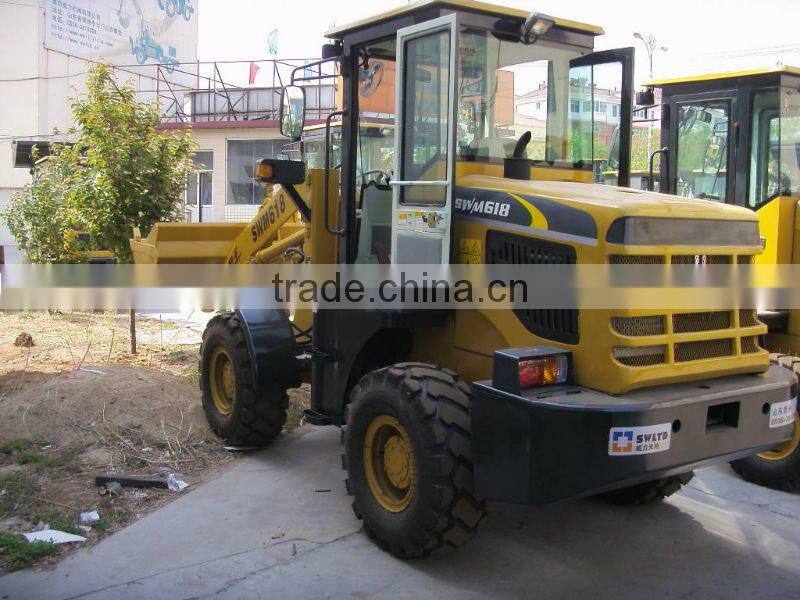

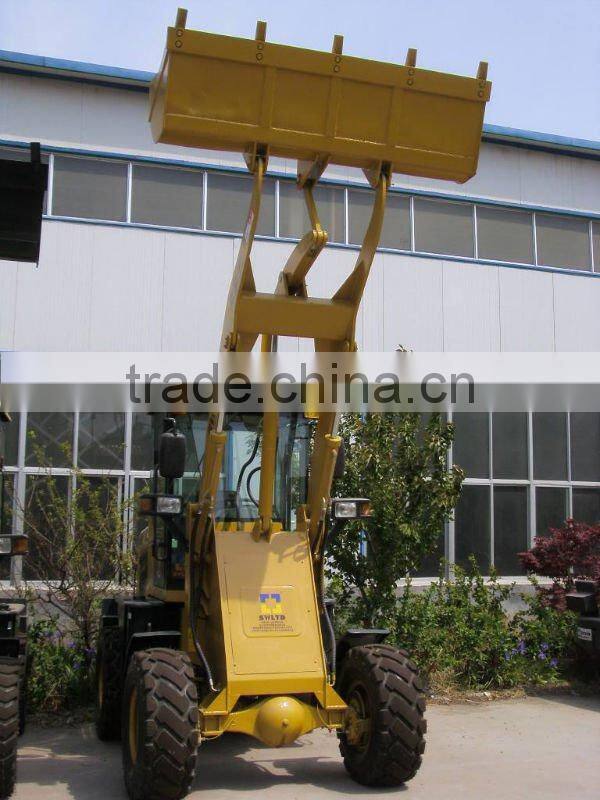

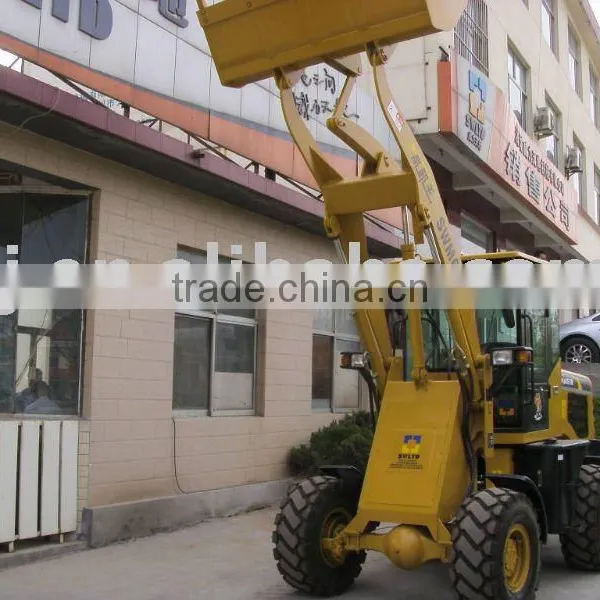

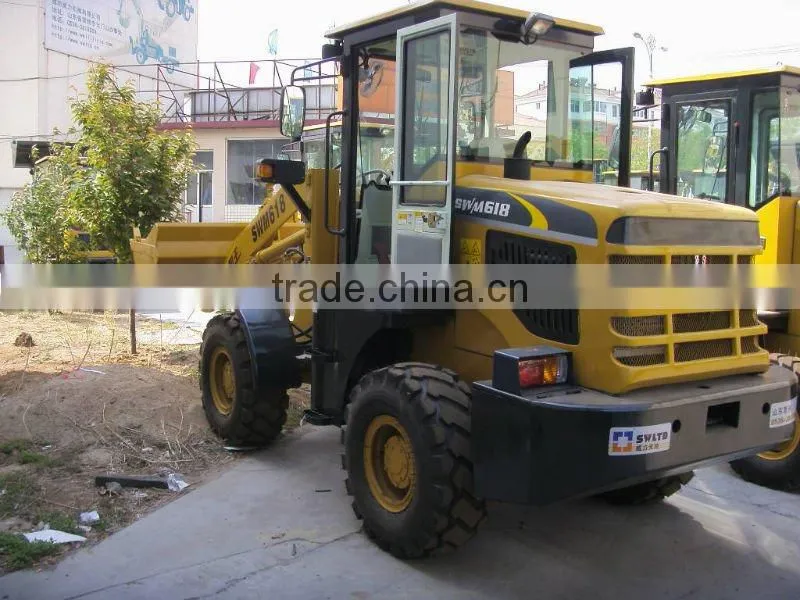

Help CenterSWM618 Wheel Loader With CE Mark
Related Products
Specifications
CE;Manipulation of deft and agile, safe and reliable;
Hydraulic mechanical transmission;
SWM618wheel loader:
1.Adopts hydraulic mechanical transmission, can make full use of engine power, according to an outside the magnitude of resistance and automatic speed stepless, colleagues avoid engine for external and sudden increase, absorbing and remove the outer loads on the engine eliminated, thereby protecting motion and impact the transmission system and engine, improve the whole life, make the operation simple and comfortable, with high efficiency and the production efficiency.
2.Adopt four-wheel drive, low-pressure wide base off-road tires, swinging rear axle, has the good off-road performance, through the performance and larger traction.
3.Fully enclosed cab seat with adjustable and shock absorption function, driving comfort, a wide field
1.Rate load (kg) 1800
2.Bucket capacity (m3) 0.7
3.Wheel Distance (mm) 1480
4.Axle-base (mm) 2070
5.Loader clearance radius (mm) left: 4532 right :4332
6.Min Base to the ground (mm) 270
7.Dump clearanle(mm) 3180
8.Distance acc.to the height (mm) 910
9.Time of Raise (s) 4.75
10.Hydraulic cycle time (s) 7.57
11.Turns to pick the strength most greatly 40.9KN
12.Drive Means : Four are Drive
13.Operating weight (kg): 3916
14.Overall dimensions : (mm) ( Length*width*height) 5280*1870*2370
15.Engine Model ZH4100Y4
16.Engine Rated power (kw) 44
17.Engine Rated output (rpm) 2200
