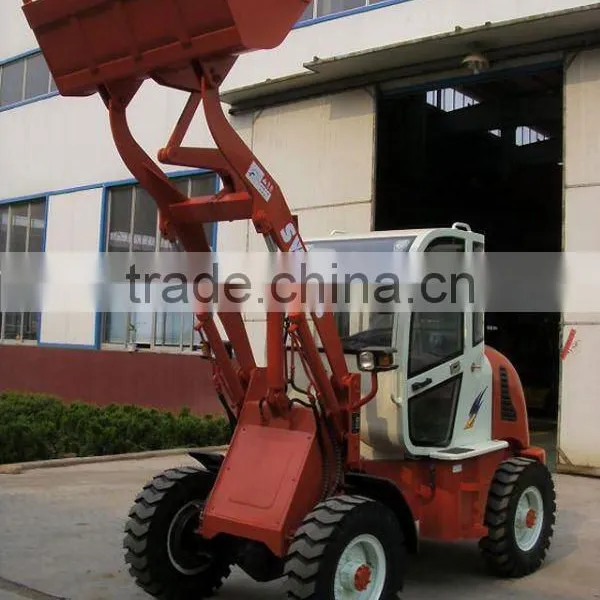

SWM608 Wheel Loader With CE Mark

Specifications

 SWM608wheel loader:

 1.Adopts hydraulic mechanical transmission, can make full use of engine power, according to an outside the magnitude of resistance and automatic speed stepless, colleagues avoid engine for external and sudden increase, absorbing and remove the outer loads on the engine eliminated, thereby protecting motion and impact the transmission system and engine, improve the whole life, make the operation simple and comfortable, with high efficiency and the production efficiency.

 2.Adopt four-wheel drive, low-pressure wide base off-road tires, swinging rear axle, has the good off-road performance, through the performance and larger traction.

 3.Fully enclosed cab seat with adjustable and shock absorption function, driving comfort, a wide field

1.Rate load (kg)  800

2.Bucket capacity (m3)  0.4

3.Wheel Distance (mm)  1235

4.Axle-base (mm)  1985

5.Loader clearance radius (mm)  4600

6.Min Base to the ground (mm)  230

7.Dump clearanle(mm)  2300

8.Distance acc.to the height (mm)  750

9.Time of Raise (s)   4

10.Hydraulic cycle time (s)  9

11.Turns to pick the strength most greatly  28KN

12.Drive Means : Four are  Drive

13.Operating weight (kg): 2350

14.Overall dimensions : (mm) ( Length*width*height) 4000*1600*2380

15.Engine Model  L24

16.Engine Rated power (kw)   17

17.Engine Rated output (rpm)  2200
